NetVanta 1000/1000R Series Hardware Installation Guide
NetVanta ADSL NIM, Annex B (P/N 1200889E1)
The NetVanta ADSL NIM, Annex B (see Figure 32) adds ADSL capability to the NetVanta. See Table A-11 on
page 64 for the pinouts. The ADSL NIM supports an optional DIM for dial backup applications. See Table A-14
on page 66 for the DBU connector pinouts.
ADSL Interface
• ADSL over ISDN, Annex B
• Supported Standards: ITU G.992.1
(G.dmt)
• Connector: RJ-11C (6-pin jack,
inner pair)
ATM
• Multiple Protocol over AAL5 (RFC2684)
• PPP over ATM (RFC2364)
• PPP over Ethernet (RFC2516)
• ATM Forum UNI 3.1/4.0 PVC
• ATM Class of Service (UBR)
• ATM F5 OAM
• Up to 16 virtual circuits
61200500L1-34L
WAN-ADSL

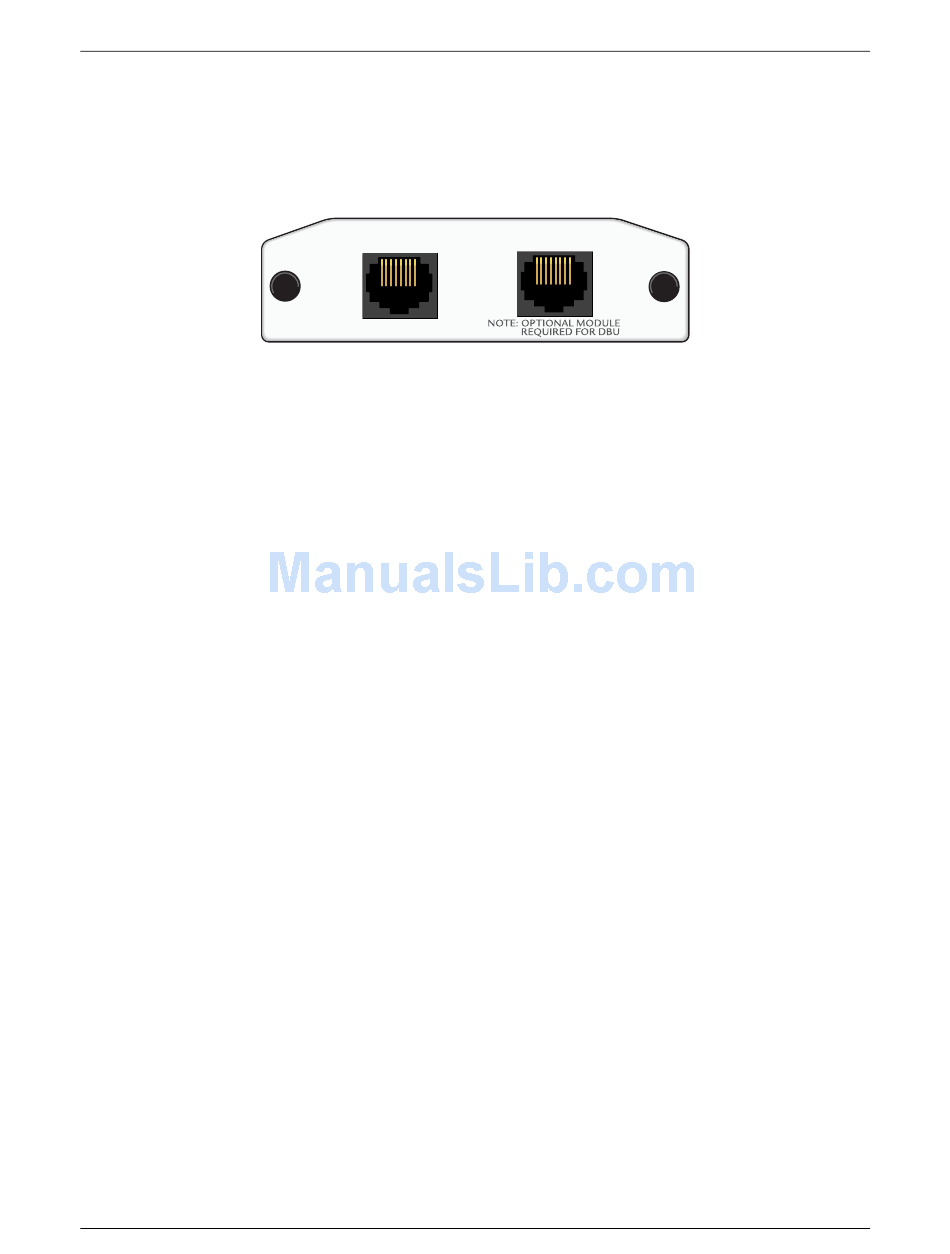

Figure 32. NetVanta ADSL NIM, Annex B
Features and Specifications
Copyright © 2007 ADTRAN, Inc.
DBU
Compliance
• EMC - see Electromagnetic
Compatibility (EMC) Table on page 6
• AS/ACIF S043
• EN 60950
• IEC 60950
• AS/NZS 60950
• RoHS Compliant (Telecommunications
exemption)
Environmental
• Operating temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C
• Relative Humidity: Up to 95 percent,
noncondensing
Physical
• Dimensions: 2.75-inch W x 4.25-inch D
Option Modules
