Option Modules
NetVanta ADSL NIM, Annex A (P/N 1200869E1)
The NetVanta ADSL NIM, Annex A (see Figure 31) adds ADSL capability to the NetVanta. The module
provides a single ADSL, ADSL2, or ADSL2+ network interface to support rates up to 25 Mbps. See Table A-11
on page 64 for the pinouts. The ADSL NIM supports an optional DIM for dial backup applications. See Table
A-14 on page 66 for the DBU connector pinouts.
ADSL Interface
• ADSL over POTS, Annex A
• Supported Standards:
– ITU G.992.1 (G.dmt)
– ITU G.992.2 (G.lite)
– ITU G.992.3 ADSL2 (G.dmt.bis)
– ITU G.992.5 ADSL2+
– ANSI T1.413 Issue 2
– Reach Extended ADSL (READSL2)
• Connector: RJ-11C (6-pin jack, inner
pair)
ATM
• Multiple Protocol over AAL5 (RFC2684)
• PPP over ATM (RFC2364)
• PPP over Ethernet (RFC2516)
• ATM Forum UNI 3.1/4.0 PVC
• ATM Class of Service (UBR)
• ATM F5 OAM
• Up to 16 Virtual Circuits
44
NetVanta 1000/1000R Series Hardware Installation Guide
WAN-ADSL

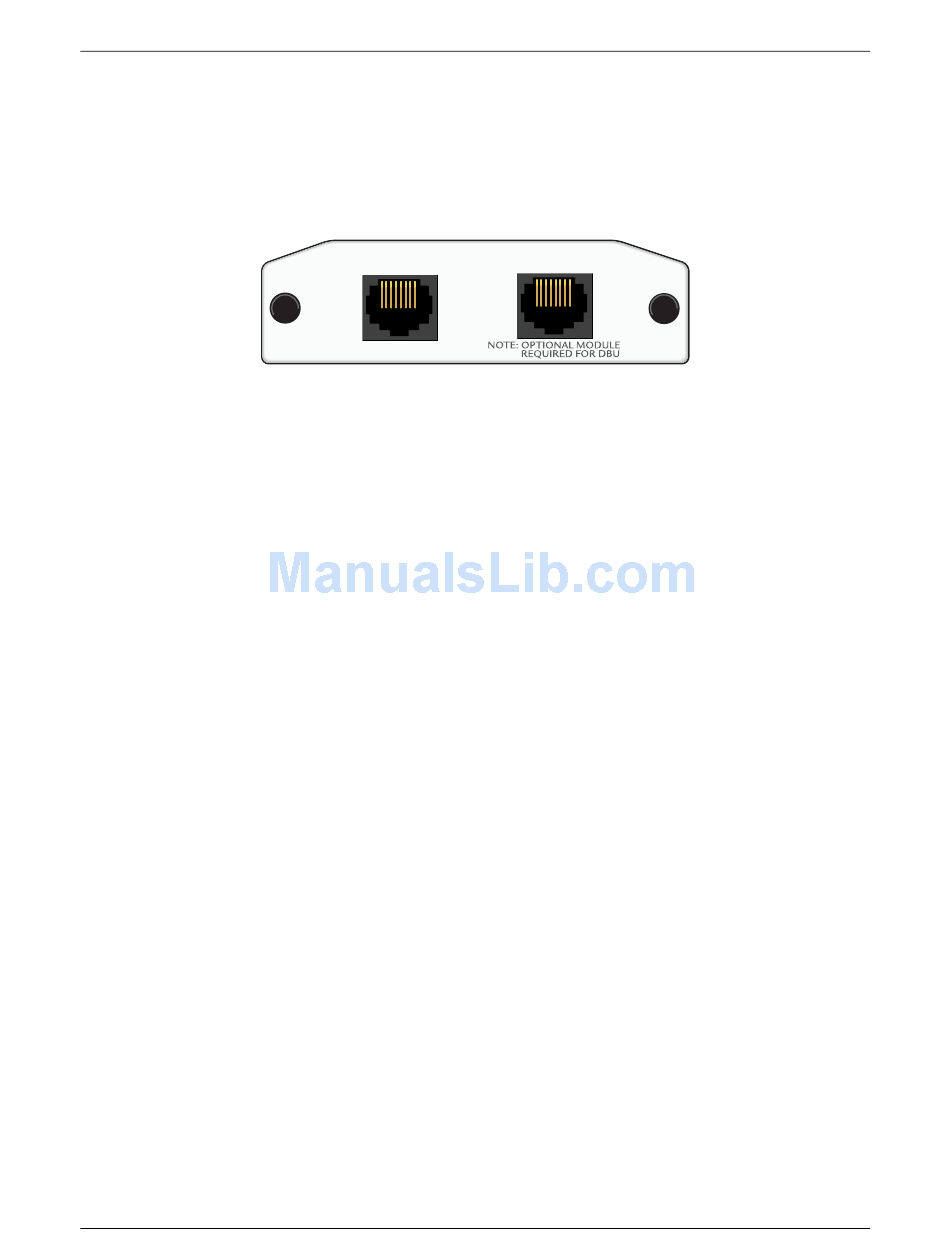

Figure 31. NetVanta ADSL NIM, Annex A
Features and Specifications
Copyright © 2007 ADTRAN, Inc.
DBU
Compliance
• EMC - see Electromagnetic
Compatibility (EMC) Table on page 6
• ACTA/FCC Part 68
• AS/ACIF S043
• AS/ACIF S002
• IC CS-03
• EN 60950
• IEC 60950
• UL/CUL 60950
• AS/NZS 60950
• RoHS Compliant (Telecommunications
exemption)
Environmental
• Operating temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C
• Relative Humidity: Up to 95 percent,
noncondensing
Physical
• Dimensions: 2.75-inch W x 4.25-inch D
61200500L1-34L
