Option Modules
NetVanta Serial NIM (P/N 1200866E1/L1)
The NetVanta Serial NIM (shown in Figure 29) can be configured by the user as a V.35, X.21 (V.11), or EIA 530
interface. This module supports rates up to a maximum of 10 Mbps. An additional V.35 (ADTRAN
P/N 1200873L1), X.21 (ADTRAN P/N 1200874L1), or EIA 530 (ADTRAN P/N 1200883L1) cable is required
(refer to Caution, below). See Table A-12 on page 65 for the serial connector pinouts, and Table A-14 on page 66
for the DBU connector pinouts. An optional DIM is required for dial backup applications.
Cable length for the Serial NIM should not exceed 25 feet.
Operating Mode
• DTE only
Serial Interface
• Supported Standards: ISO 4903 (X.21),
CCITT V.35 Synchronous (V.35),
EIA 530 Synchronous
• Provides V.35, X.21 (V.11), or EIA 530
electrical interface
• Connector: 26-pin smart serial (DTE)
Compliance
• EMC - see Electromagnetic
Compatibility (EMC) Table on page 6.
• ETSI TBR1
• ETSI TBR2
• EN 60950
• IEC 60950
• UL/CUL 60950
• AS/NZS 60950
• RoHS Compliant (Telecommunications
exemption)
42
NetVanta 1000/1000R Series Hardware Installation Guide
SERIAL

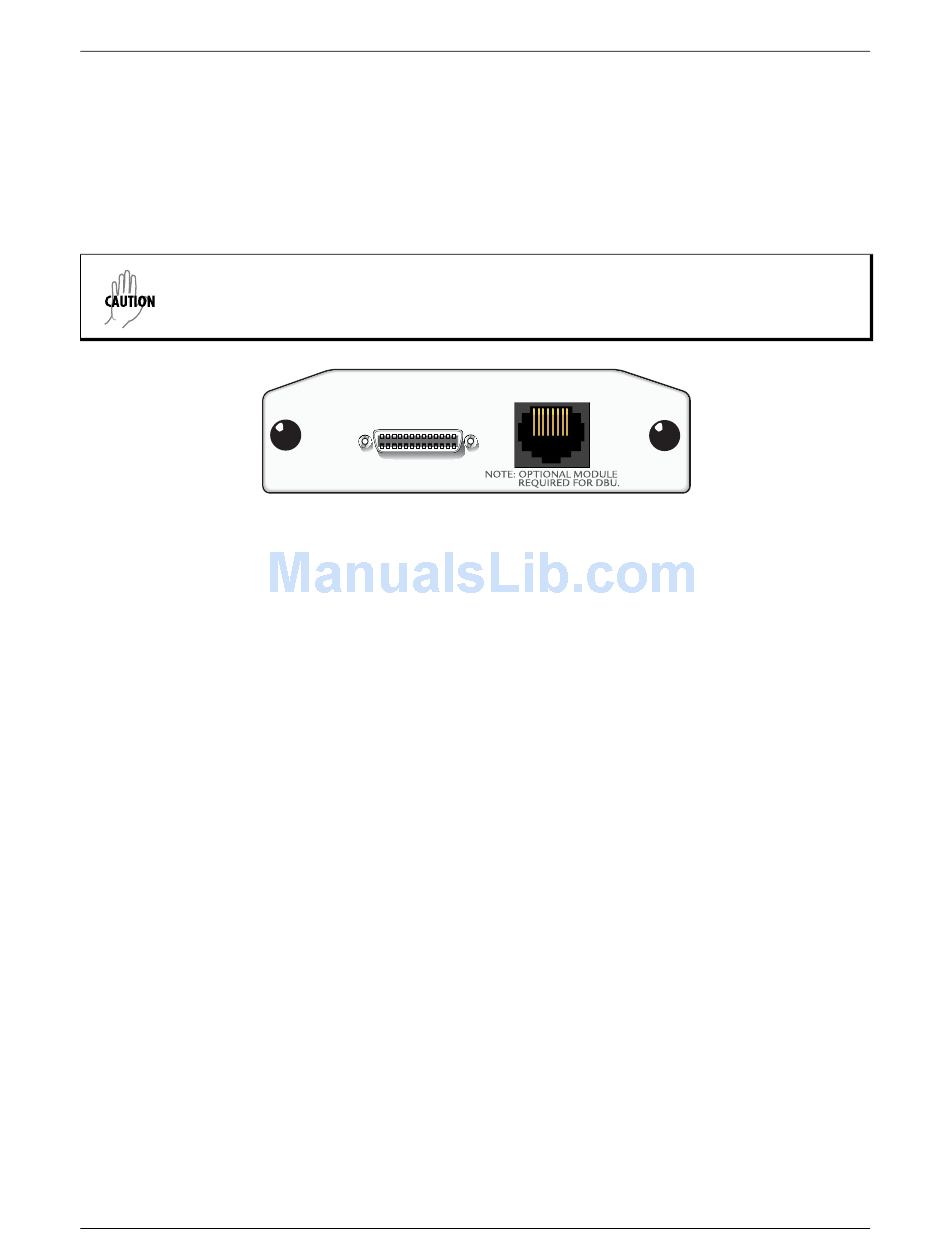

Figure 29. NetVanta Serial NIM
Features and Specifications
Environmental
•
•
•
Physical
•
Copyright © 2007 ADTRAN, Inc.
DBU
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Relative Humidity: Up to 95 percent,
noncondensing
Dimensions: 2.75-inch W x 4.25-inch D
