ADTRAN NetVanta 1224R Specifications

Solution Benefits
Converged LAN/WAN
■
architecture
Lower total cost of ownership
■
Efficient bandwidth usage
■
Space-savings, equipment
■
consolidation
Simplified network
■
administration

Product Features

Full-featured, managed
■
Layer 2 switch-routers
24-port Ethernet, Fast Ethernet,
■
Power over Ethernet, and
Gigabit Ethernet functionality
Unique all-in-one switching/
■
routing/firewall/VPN platforms
Interoperable in established,
■
multi-vendor networks
8.8 Gbps switching capacity,
■
non-blocking
Gigabit SFP/1000Base-T uplink/
■
stacking capability available
Stacking up to 16 switches
■
with single IP address
management
Link Aggregation, GVRP,
■
and LLDP
MAC-based port security
■
SIP ALG for NAT traversal in
■
VoIP applications
Easily recognizable Command
■
Line Interface (CLI)
Intuitive web-based Graphical
■
User Interface (GUI)
Free firmware updates
■
Unlimited, responsive,
■
toll-free technical support
Industry-leading
five-year
■
North American warranty

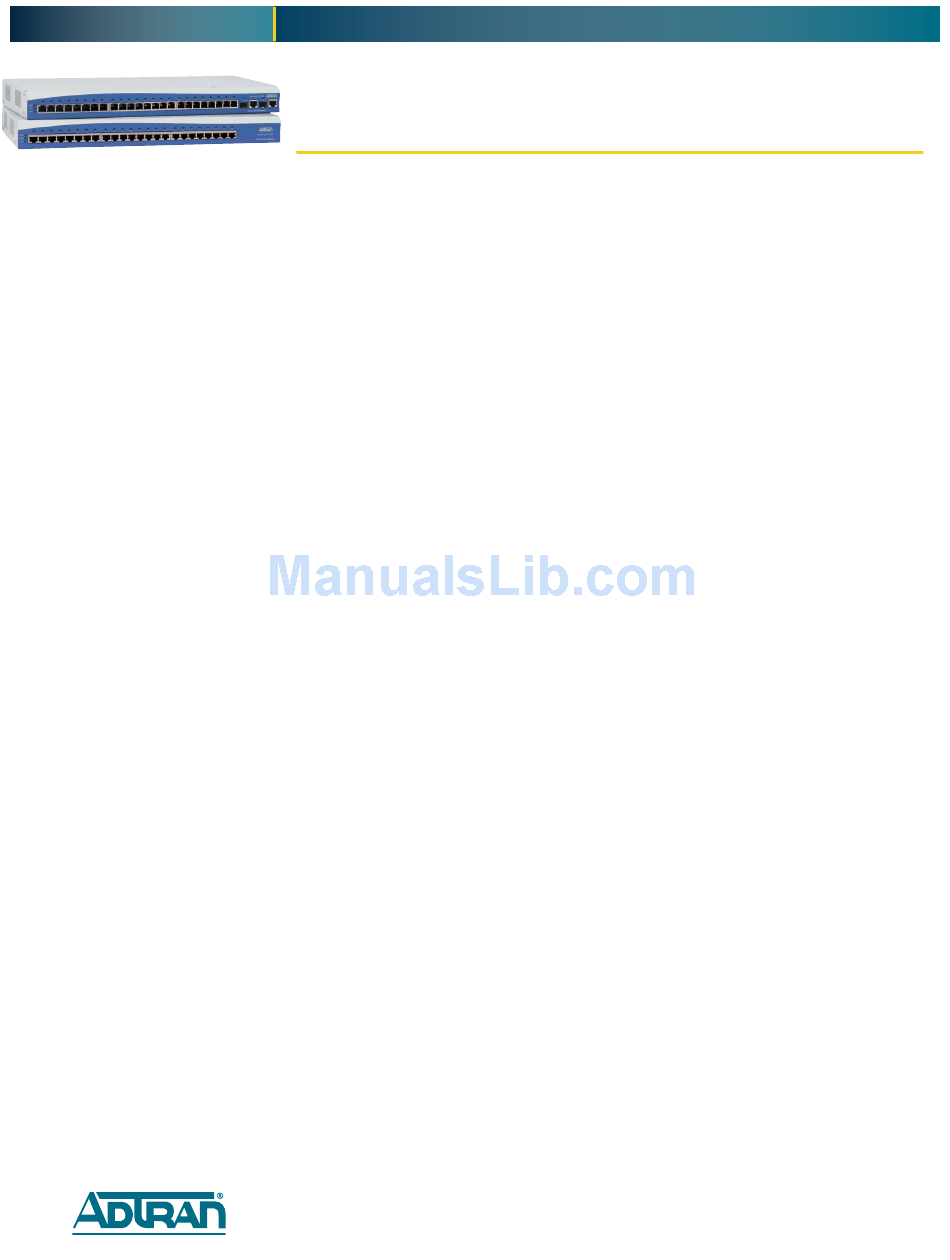

NetVanta 1224R PoE/1224STR PoE
All-in-One Network Access with Power of Ethernet: Modular WAN
interface, Firewall, Ethernet Switch, IP Router, and Optional VPN
The NetVanta 1000 Series from ADTRAN
®
standards-based, non-blocking Layer 2 switch-
ing solution suitable for converged LAN/WAN
access, interconnecting LAN devices, for
network segmentation, or for powering LAN
network devices. The NetVanta 1224R PoE
(Power over Ethernet) and 1224STR PoE are
unique, all-in-one access platforms that combine
a 24 port Ethernet switch, an IP access router, a
modular WAN interface with built-in DSU/CSU,
a stateful inspection firewall, and the option for
Virtual Private networking (VPN), all in a single
1U chassis. The 1224R PoE and STR PoE provide
24-port Ethernet and Fast Ethernet switching, with
the STR PoE offering two extra 1000Base-T/SFP
Gigabit ports for uplink or stacking capability.
Modular Hardware
A single WAN access slot in the back of the
NetVanta chassis supports a variety of Network
Interface Modules (NIMs) including ADSL,
56/64k, T1/FT1, T1/FT1 with DSX-1, E1/FE1,
E1/FE1 with G.703, Dual T1, or a serial interface.
The optional Analog or ISDN BRI Dial Backup
Modules (DIMs) support a solid business con-
tinuity plan by dialing around a failed circuit to
any PPP-compliant device. The ADSL NIM may
also be used for broadband backup, allowing
for larger bandwidth applications and faster
data rates.
Standard-based Protocols
Based on the ADTRAN Operating System (AOS),
these devices offer support for 802.1Q Virtual
LANs (VLANs), Port-based switching features
include Broadcast Storm Control, 802.1D and
802.1w Spanning/Rapid Spanning Tree, Link
Aggregation, Port Mirroring, and GVRP . Link
Layer Discovery Protocol (LLDP) auto-discovers
neighboring Ethernet devices, simplifying
integration into multi-vendor environments.
In addition the integral IP router provides cost-
effective Internet access, corporate Frame Relay
or point-to-point connectivity using standard
routing protocols such as BGP , OSPF and RIP .
Power over Ethernet
The NetVanta 1224R PoE and 1224STR PoE
platforms provide standards-based 802.3af
PoE functionality for powering IP phones,
Wireless Access Points (WAPs), or other
devices requiring LAN power. The products
support up to 15.4 watts per port or
370 watts total.
is a Security
®
Rest assured, with the NetVanta 1224R PoE and
STR PoE your network is protected. Each plat-
form comes standard with a stateful inspection
firewall to stop intruders and common Denial
of Service (DoS) attacks. These products also
offer a variety of data security features includ-
ing MAC-based port security, multilevel user
passwords, Secure Shell (SSH) and Secure Socket
Layer (SSL) for encrypted user login, and Access
Authentication and Authorization (AAA) with
RADIUS, RSA SecurID, or TACACS+. For added
security, these platforms offer a VPN upgrade
supporting up to 500 IPSec tunnels using DES,
3DES or AES encryption.
Quality of Service (QoS)
The NetVanta switch-routers support QoS to
prioritize mission critical traffic and control
network congestion at various layers of the OSI
model. On the LAN, the NetVanta 1000 Series
offers 802.1p and DiffServ Class of Service
(CoS). To assign priority to traffic, Weighted
Round Robin and Strict Priority Queuing is used
with four egress queues per port. For the WAN,
DiffServ marking, Low Latency Queuing, and
Weighted Fair Queuing provide priority for IP
packets routed over the WAN. Together these
features offer a powerful end-to-end QoS story.
VoIP Ready
In combination with the QoS features, a special-
ized SIP Application Layer Gateway (ALG) allows
SIP traffic to traverse NAT-enabled firewalls.
For an enterprise network, this interoperability
allows IP PBXs, phones, and other SIP-based
devices to set up, tear down, and pass voice and
call control messages seamlessly through the
integral NAT-enabled firewall.
Administration
The AOS offers both a Command Line Interface
(CLI) that mimics the widely deployed, industry
de facto standard and an intuitive web-based
GUI with step-by-step configuration wizards.
For a centralized enterprise-wide management
scheme, ADTRAN offers n-Command
intuitive, scalable software suite for managing
firmware revisions, push firmware upgrades
and configuration changes, backup and restore
configurations, and manage security policies
and Access Control Lists (ACLs).
® , an
