Physical Descriptions
NetVanta 1524ST Shipping Contents
Each NetVanta 1524ST unit is shipped in its own cardboard shipping carton. Open each carton carefully, and
avoid deep penetration into the carton with sharp objects.
After unpacking the unit, inspect it for possible shipping damage. If the equipment has been damaged in transit,
immediately file a claim with the carrier and contact ADTRAN Customer Service (refer to the Repair and
Replacement section of the Support page on the ADTRAN website at http://www.adtran.com/support).
Domestic shipments of the NetVanta 1524ST include the following items:
• NetVanta 1524ST base unit
• ADTRAN OS System Documentation CD
• A detachable power cable with a grounded, three-prong plug
• Quick Start Guide
• Warranty card
International shipments of the NetVanta 1524ST include the following items:
• NetVanta 1524ST base unit
• ADTRAN OS System Documentation CD
• All necessary power cords
• Quick Start Guide
• Warranty card
NetVanta 1524ST Front Panel Design
The NetVanta 1524ST front panel is shown below. Table 1 on page 32 describes all of the LEDs, and
Appendix A on page 61 shows the pinouts for the connectors.
NetVanta 1524ST Front Panel Features
10/100/1000BaseT Ethernet Interfaces
The NetVanta 1524ST front panel contains 24 10/100/1000BaseT Ethernet interfaces (RJ-45). These
interfaces are consecutively numbered 1 through 24, from left to right, with the numbers screened
directly above each port. Status LEDs for each of these interfaces are located directly over these
numbers.
SFP Slots
The NetVanta 1524ST front panel contains four standard small form-factor pluggable (SFP) slots for
connectivity over fiber. These interfaces are numbered 21 through 24. Status LEDs for each of these
slots are located directly over these numbers.
Status LEDs
The status LEDs are located to the lower left of RJ-45 port 1. The
is a member of a stack. The
30
NetVanta 1000/1000R Series Hardware Installation Guide
LED indicates the unit's status.
STAT

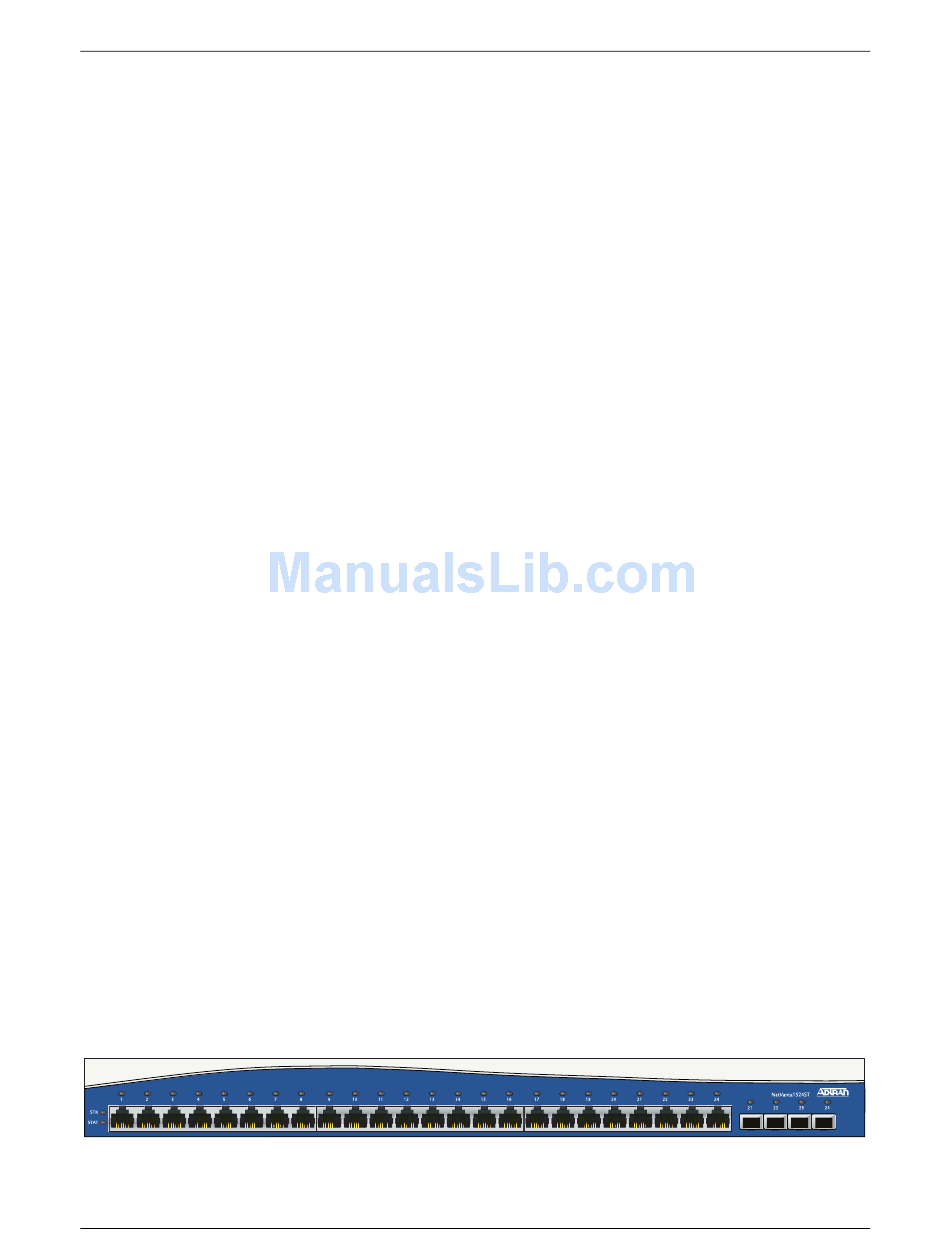

Figure 20. NetVanta 1524ST Front Panel Layout
Copyright © 2007 ADTRAN, Inc.
LED indicates whether the unit
STK
61200500L1-34L
