Physical Descriptions
Status LEDs
The status LEDs are located to the lower left of RJ-45 port 1. The
Series only) reflects the status of the wireless network. The
NIM. The LED reflects the status of an installed DIM. The
DBU

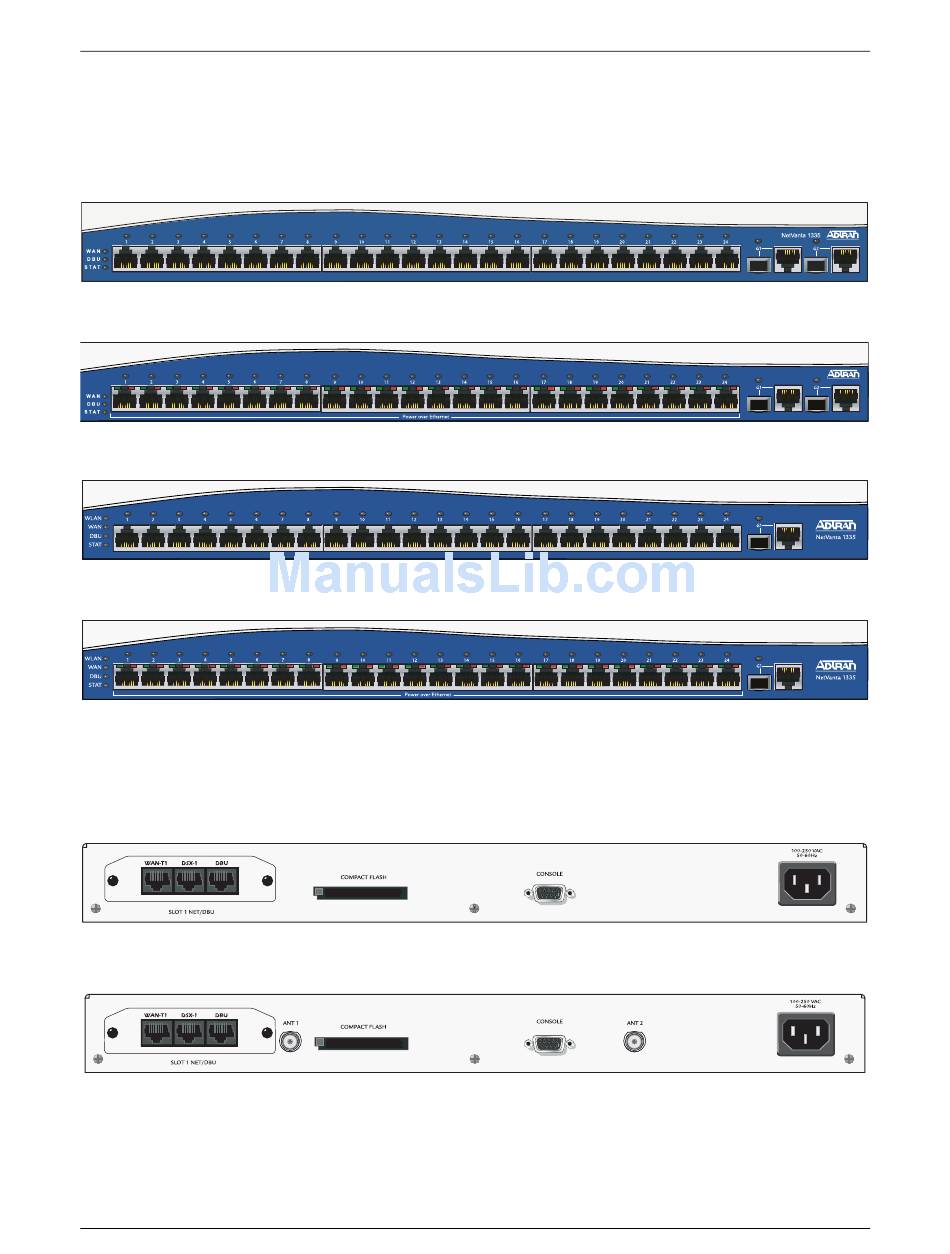

Figure 17. NetVanta 1335 WiFi PoE Front Panel Layout
NetVanta 1335 Rear Panel Design
The NetVanta 1335 Series rear panels are shown below. Refer to Appendix A on page 61 for pinouts.
Figure 18. NetVanta 1335 and NetVanta 1335 PoE Rear Panel Layout
Figure 19. NetVanta 1335 WiFi and NetVanta 1335 WiFi PoE Rear Panel Layout
28
NetVanta 1000/1000R Series Hardware Installation Guide
Figure 14. NetVanta 1335 Front Panel Layout
Figure 15. NetVanta 1335 PoE Front Panel Layout
Figure 16. NetVanta 1335 WiFi Front Panel Layout
Copyright © 2007 ADTRAN, Inc.
LED (NetVanta 1335 WiFi
WLAN
LED reflects the status of an installed
WAN
LED indicates the unit's status.
STAT
NetVanta 1335
