NetVanta 1000/1000R Series Hardware Installation Guide
NetVanta SHDSL NIM (P/N 1200867L1)
The NetVanta SHDSL NIM (shown in Figure 30) provides a WAN SHDSL interface for the NetVanta. See
Table A-10 on page 64 for the SHDSL connector pinouts. See Table A-14 on page 66 for the DBU connector
pinouts. An optional DIM is required for dial backup applications.
Operating Mode
• Line termination (CO)
• Network termination (CPE)
SHDSL Interface
• Supported Standards: ITU-T G.991.2
SHDSL
• Line Rate: 200 to 2312 kbps in
64k increments
• Line Code: TC-PAM
• Connector: RJ-45
Clock Source
• CPE Operating Mode: Network
• CO Operating Mode: Internal
Diagnostics
• Test Pattern Generation and Detection:
15
2 - 1
• Network loopbacks (local and remote)
• Alarm generation and detection
• Programmable alarm threshold setting for
loop attenuation and signal-to-noise ratio
61200500L1-34L
WAN-SHDSL

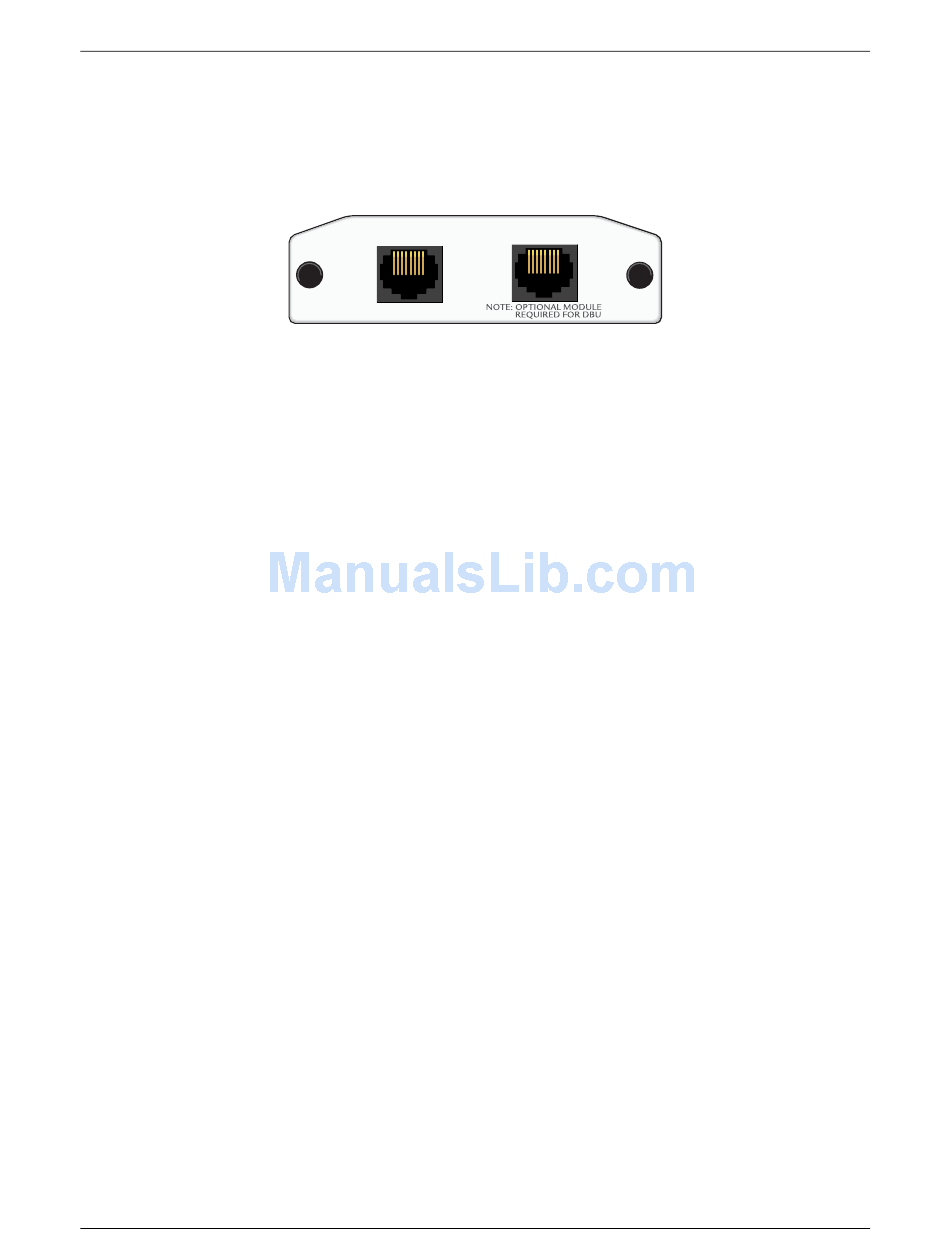

Figure 30. NetVanta SHDSL NIM
Features and Specifications
Compliance
•
•
•
•
Environmental
•
•
•
Physical
•
Copyright © 2007 ADTRAN, Inc.
DBU
EMC - see Electromagnetic
Compatibility (EMC) Table on page 6.
AS/ACIF S043
EN 60950
AS/NZS 60950
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Relative Humidity: Up to 95 percent,
noncondensing
Dimensions: 2.75-inch W x 4.25-inch D
Option Modules
