Option Modules
NetVanta T1/FT1 NIM (P/N 1202862L1)
The T1/FT1 NIM (shown in Figure 23) provides a T1 WAN interface for the NetVanta. This module provides a
full T1 or fractional T1 network interface. Refer to Table A-6 on page 63 for the WAN-T1 connector pinouts and
Table A-14 on page 66 for the DBU connector pinouts. An optional DIM is required for dial backup
applications.
Operating Modes
• Frame Relay, Multilink Frame Relay
• PPP, Multilink PPP
• HDLC
T1/FT1 Interface
• Supported Standards: AT&T TR 62411,
AT&T TR 65016, ANSI T1.403,
Bellcore TR 194
• Line Rate: 1.544 Mbps +75 bps
• Line Code: AMI or B8ZS
• Framing: D4 (SF) or ESF
• FT1 Line Rate: DS0 channelized (multiples
of 64 kbps)
• Input Signal: 0 to -36 dB (DS1)
• Line Build-Out: 0, -7.5, -15, -22.5 dB
(long), 0 to 655 ft (short)
• DS0 Assignment: Programmable
• Connector: RJ-48C
Clock Source
• Network
• Internal
36
NetVanta 1000/1000R Series Hardware Installation Guide
WAN-T1

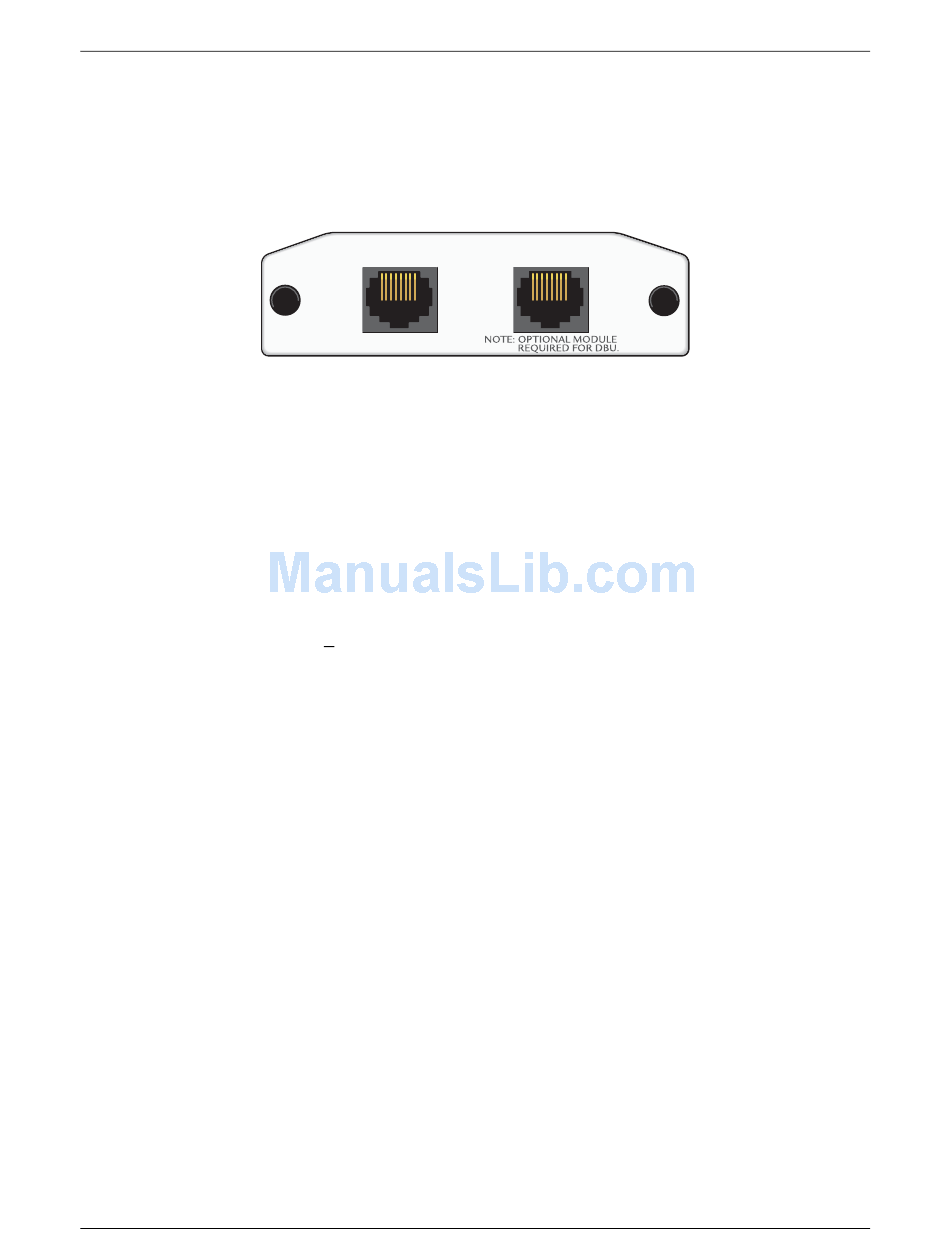

Figure 23. NetVanta T1/FT1 NIM
Features and Specifications
Diagnostics
•
•
•
•
Compliance
•
•
•
•
Environmental
•
•
•
Physical
•
Copyright © 2007 ADTRAN, Inc.
DBU
Test Pattern Generation and Detection:
511, QRSS, all ones, all zeros
Network loopbacks (local and remote);
responds to both inband and FDL loop
codes
Alarm generation and detection
Network and user sets of performance data
(15 minutes and 24 hours)
EMC - see Electromagnetic Compatibility
(EMC) Table on page 6.
ACTA/FCC Part 68
IC CS-03
UL/CUL 60950
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Relative Humidity: Up to 95 percent,
noncondensing
Dimensions: 2.75-inch W x 4.25-inch D
61200500L1-34L
