Option Modules
NetVanta E1/FE1 NIM (P/N 1200868E1/L1)
The NetVanta E1/FE1 module (see Figure 27) provides a WAN-E1 interface for the NetVanta meeting the
requirements of ITU-T G.703/G.704. The module provides a single 2.048 Mbps network interface. Refer to
Table A-7 on page 63 for the pinouts. Refer to Table A-14 on page 66 for the DBU connector pinouts. An
optional DIM is required for dial backup applications.
Operating Modes
• Frame Relay, Multilink Frame Relay
• PPP, Multilink PPP
• HDLC
WAN-E1 Interface
• Supported Standards: ITU G.703,
ITU-T G.704 (CRC-4), ITU-T G.823,
ITU-T G.797
• Line Rate: 2.048 Mbps +50 PPM
• Line Code: AMI or HDB3
• Framing: FAS with optional CRC-4
• FE1 Line Rate: Channelized timeslot (in
multiples of 64 kbps)
• Receiver Sensitivity: -30 dB
• Connector: RJ-48C
Clock Source
• Network
• Internal
40
NetVanta 1000/1000R Series Hardware Installation Guide
WAN-E1

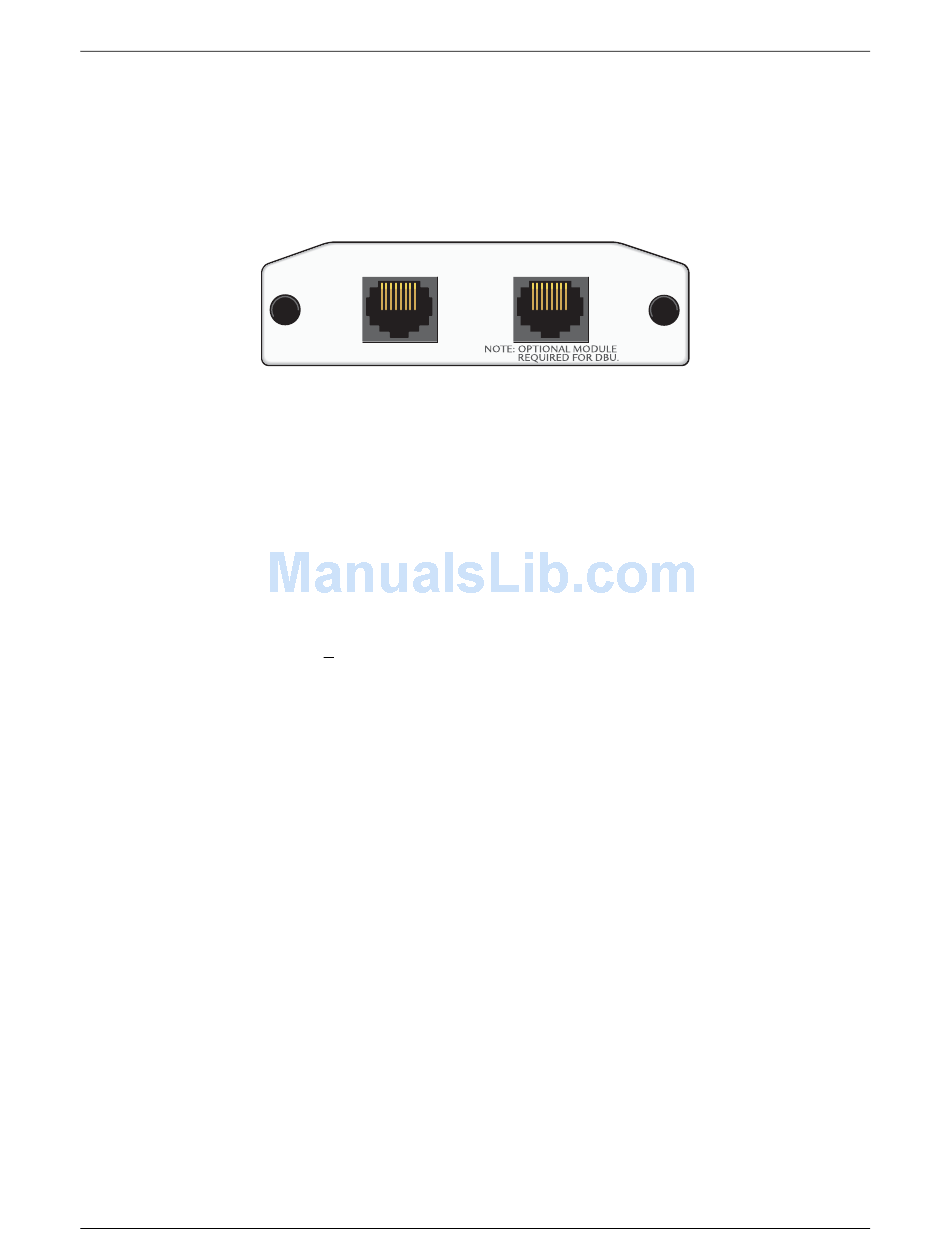

Figure 27. NetVanta E1/FE1 NIM
Features and Specifications
Diagnostics
•
•
•
•
Compliance
•
•
•
•
•
•
•
Environmental
•
•
•
Physical
•
Copyright © 2007 ADTRAN, Inc.
DBU
Test Pattern Generation and Detection:
QRSS, 511, all ones, all zeros
Network loopbacks
Network performance data (15 minutes and
24 hours)
Alarm generation and detection
EMC - see Electromagnetic Compatibility
(EMC) Table on page 6.
AS/ACIF S016
ETSI TBR 12/TBR 13
EN 60950
IEC 60950
AS/NZS 60950
RoHS Compliant (Telecommunications
exemption)
Operating temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Relative Humidity: Up to 95 percent,
noncondensing
Dimensions: 2.75-inch W x 4.25-inch D
61200500L1-34L
