Configure RAID Using the Avago MegaRAID Configuration Utilities
1.
Access the host console locally or through Oracle ILOM.
For instructions, see
2.
Reset or power on the server.
For example, to reset the server:
From the local server, press the Power button on the front panel of the server for
■
approximately 1 second to power off the server, and then press the Power button again to
power on the server.
From the Oracle ILOM web interface, select Host Management → Power Control, and
■
then select Reset from the Select Action list box. Click Save, and then click OK.
From the Oracle ILOM CLI, type: reset /System
■
The power-on self-test (POST) sequence begins.
3.

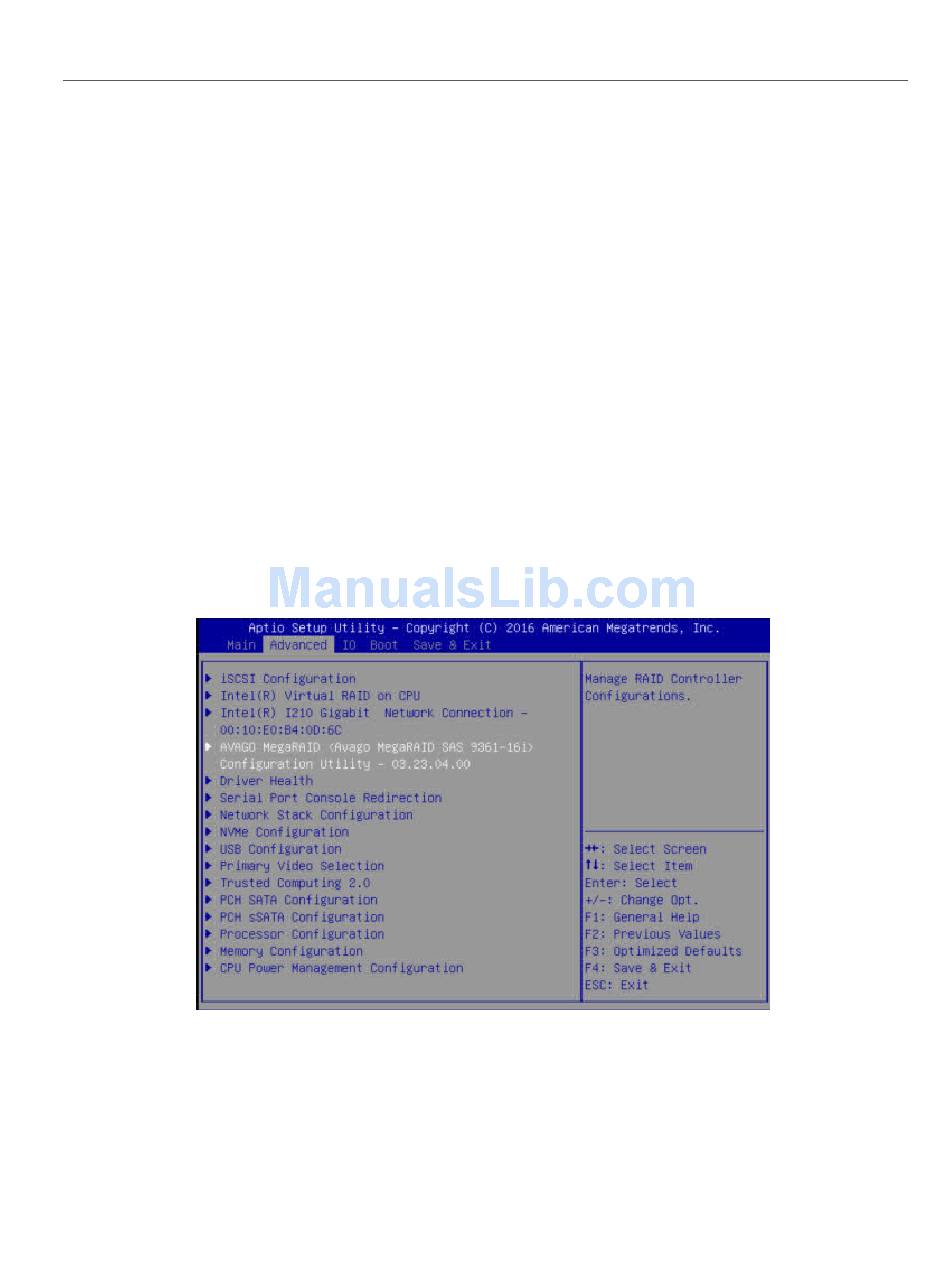

On the BIOS Setup Utility screen, select the Advanced tab, select Avago
MegaRAID Configuration Utility, and press Enter.
100
Oracle Servers X7-2 and X7-2L Installation Guide • October 2017
"Accessing Oracle ILOM" on page
84.
