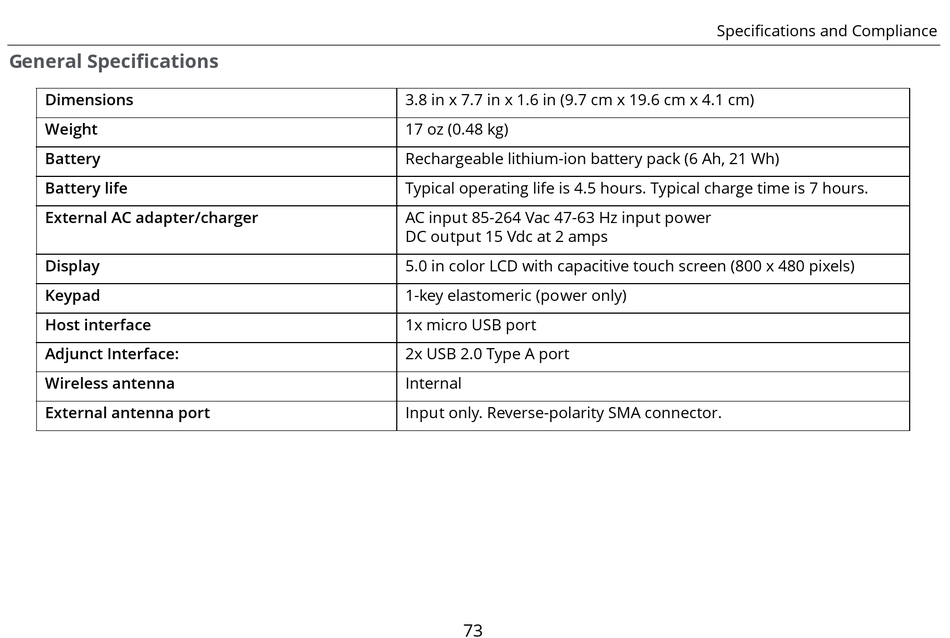

General Specifications
Dimensions
Weight
Battery
Battery life
External AC adapter/charger
Display
Keypad
Host interface
Adjunct Interface:
Wireless antenna
External antenna port
3.8 in x 7.7 in x 1.6 in (9.7 cm x 19.6 cm x 4.1 cm)
17 oz (0.48 kg)
Rechargeable lithium-ion battery pack (6 Ah, 21 Wh)
Typical operating life is 4.5 hours. Typical charge time is 7 hours.
AC input 85-264 Vac 47-63 Hz input power
DC output 15 Vdc at 2 amps
5.0 in color LCD with capacitive touch screen (800 x 480 pixels)
1-key elastomeric (power only)
1x micro USB port
2x USB 2.0 Type A port
Internal
Input only. Reverse-polarity SMA connector.
73
Specifications and Compliance
