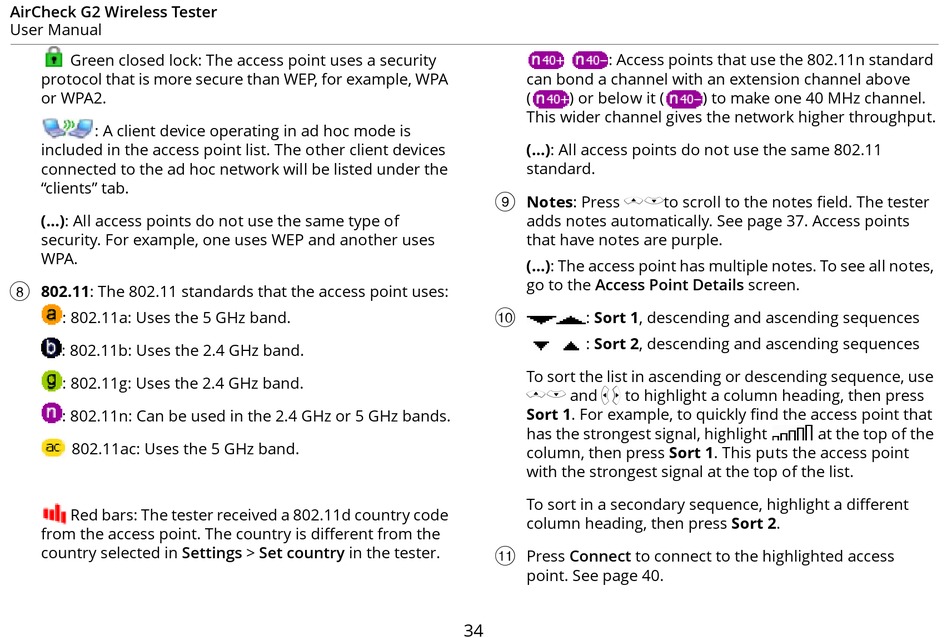

Netscout AirCheck G2 User Manual page 42

AirCheck G2 Wireless Tester
User Manual
Green closed lock: The access point uses a security
protocol that is more secure than WEP, for example, WPA
or WPA2.
: A client device operating in ad hoc mode is
included in the access point list. The other client devices
connected to the ad hoc network will be listed under the
"clients" tab.
(...): All access points do not use the same type of
security. For example, one uses WEP and another uses
WPA.
802.11: The 802.11 standards that the access point uses:

: 802.11a: Uses the 5 GHz band.
: 802.11b: Uses the 2.4 GHz band.
: 802.11g: Uses the 2.4 GHz band.
: 802.11n: Can be used in the 2.4 GHz or 5 GHz bands.
802.11ac: Uses the 5 GHz band.
Red bars: The tester received a 802.11d country code
from the access point. The country is different from the
country selected in Settings > Set country in the tester.
: Access points that use the 802.11n standard
can bond a channel with an extension channel above
( ) or below it (
This wider channel gives the network higher throughput.
(...): All access points do not use the same 802.11
standard.
Notes: Press
 
adds notes automatically. See page 37. Access points
that have notes are purple.
(...): The access point has multiple notes. To see all notes,
go to the Access Point Details screen.
: Sort 1, descending and ascending sequences

: Sort 2, descending and ascending sequences
To sort the list in ascending or descending sequence, use
and to highlight a column heading, then press
  
Sort 1. For example, to quickly find the access point that
has the strongest signal, highlight
column, then press Sort 1. This puts the access point
with the strongest signal at the top of the list.
To sort in a secondary sequence, highlight a different
column heading, then press Sort 2.
Press Connect to connect to the highlighted access

point. See page 40.
34
) to make one 40 MHz channel.
to scroll to the notes field. The tester
at the top of the
