AirCheck G2 Wireless Tester
User Manual
T A C
III. HE IR HECK

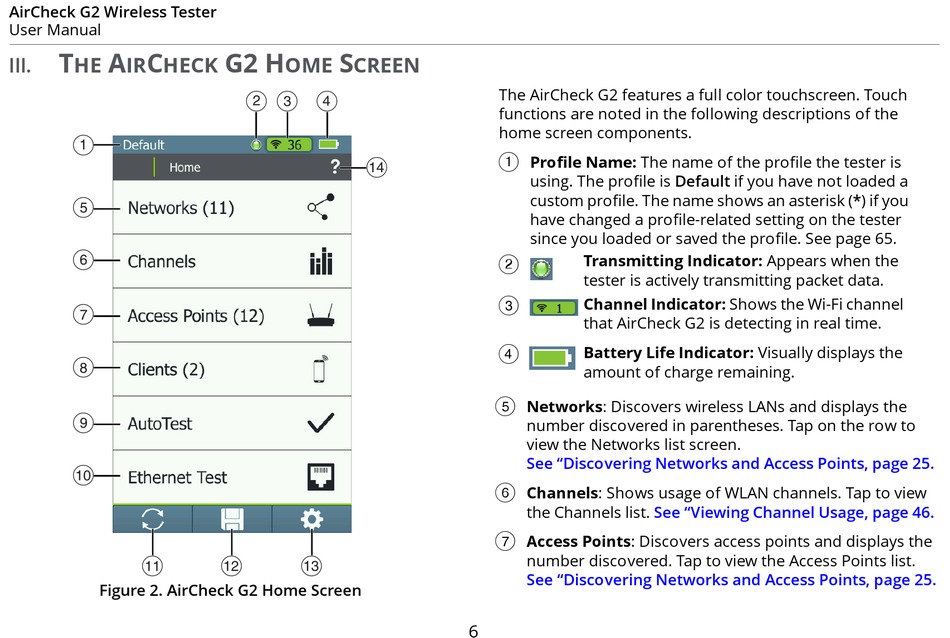

Figure 2. AirCheck G2 Home Screen
G2 H S
OME CREEN
The AirCheck G2 features a full color touchscreen. Touch
functions are noted in the following descriptions of the
home screen components.
Profile Name: The name of the profile the tester is

using. The profile is Default if you have not loaded a
custom profile. The name shows an asterisk (*) if you
have changed a profile-related setting on the tester
since you loaded or saved the profile. See page 65.
Transmitting Indicator: Appears when the

tester is actively transmitting packet data.
Channel Indicator: Shows the Wi-Fi channel

that AirCheck G2 is detecting in real time.
Battery Life Indicator: Visually displays the

amount of charge remaining.
Networks: Discovers wireless LANs and displays the

number discovered in parentheses. Tap on the row to
view the Networks list screen.
See "Discovering Networks and Access Points, page 25.
Channels: Shows usage of WLAN channels. Tap to view

the Channels list.
Access Points: Discovers access points and displays the

number discovered. Tap to view the Access Points list.
See "Discovering Networks and Access Points, page 25.
6
See "Viewing Channel Usage, page 46.

