The Networks List Screen

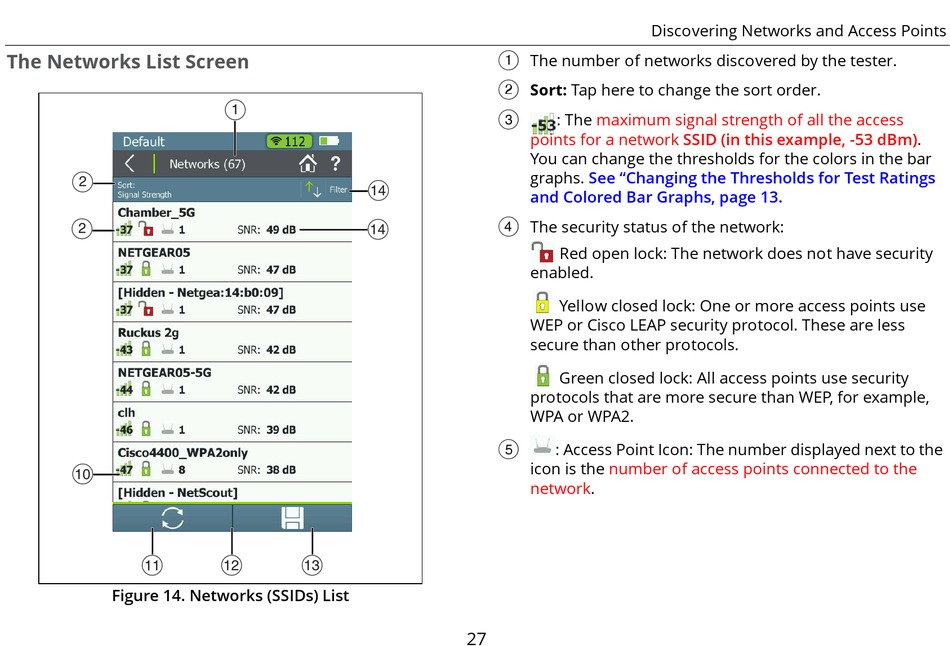

Figure 14. Networks (SSIDs) List
The number of networks discovered by the tester.

Sort: Tap here to change the sort order.

: The maximum signal strength of all the access

points for a network SSID (in this example, -53
You can change the thresholds for the colors in the bar
graphs. See "Changing the Thresholds for Test Ratings
and Colored Bar Graphs, page 13.
The security status of the network:

Red open lock: The network does not have security
enabled.
Yellow closed lock: One or more access points use
WEP or Cisco LEAP security protocol. These are less
secure than other protocols.
Green closed lock: All access points use security
protocols that are more secure than WEP, for example,
WPA or WPA2.
: Access Point Icon: The number displayed next to the

icon is the number of access points connected to the
network.
27
Discovering Networks and Access Points
dBm).
