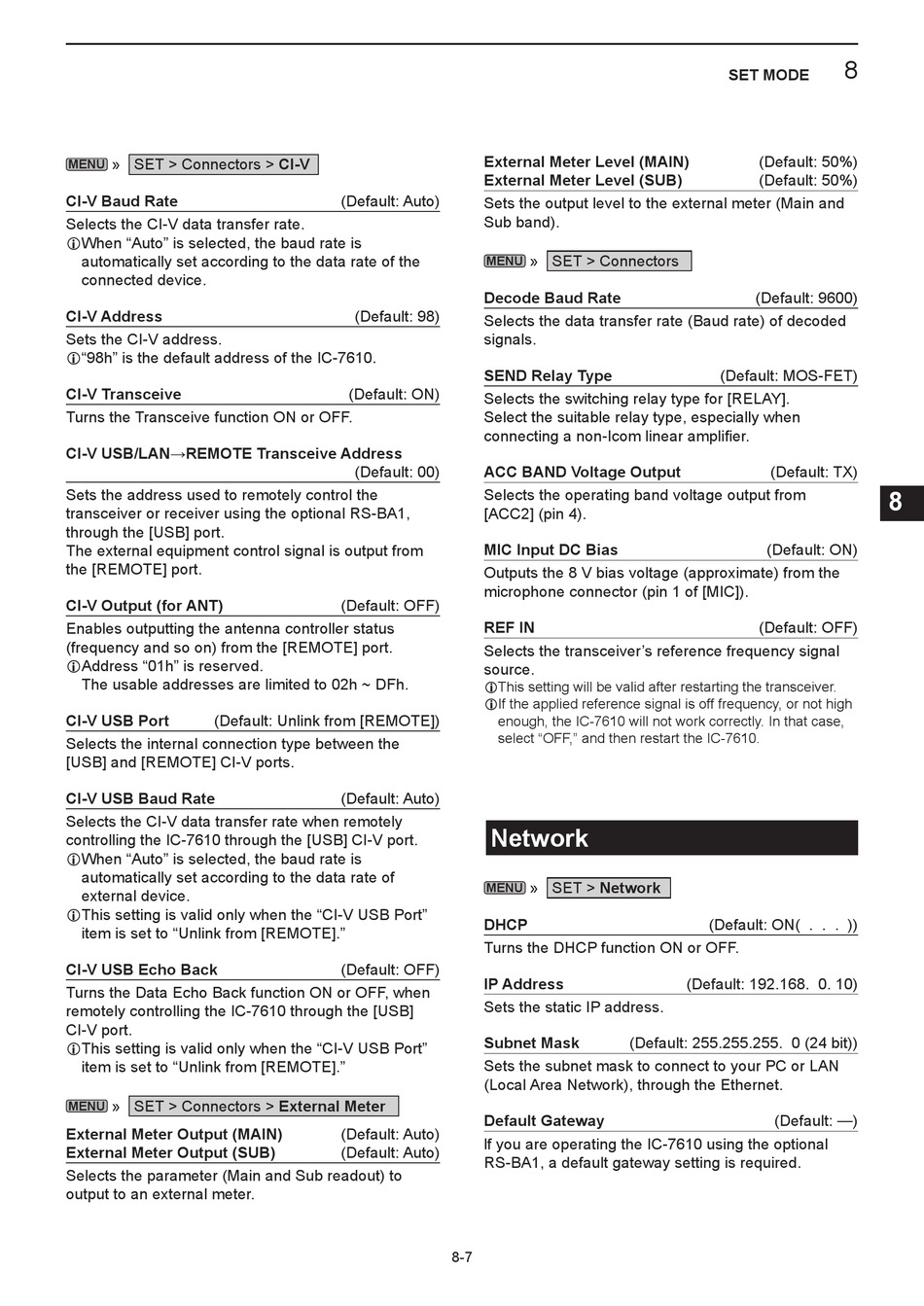

Network - Icom IC-7610 Basic Manual

» SET > Connectors > CI-V
MENU
CI-V Baud Rate
Selects the CI-V data transfer rate.
L When "Auto" is selected, the baud rate is
automatically set according to the data rate of the
connected device.
CI-V Address
Sets the CI-V address.
L"98h" is the default address of the IC-7610.
CI-V Transceive
Turns the Transceive function ON or OFF.
CI-V USB/LAN→REMOTE Transceive Address
Sets the address used to remotely control the
transceiver or receiver using the optional RS-BA1,
through the [USB] port.
The external equipment control signal is output from
the [REMOTE] port.
CI-V Output (for ANT)
Enables outputting the antenna controller status
(frequency and so on) from the [REMOTE] port.
L Address "01h" is reserved.
The usable addresses are limited to 02h ~ DFh.
CI-V USB Port (Default: Unlink from [REMOTE])
Selects the internal connection type between the
[USB] and [REMOTE] CI-V ports.
CI-V USB Baud Rate
Selects the CI-V data transfer rate when remotely
controlling the IC-7610 through the [USB] CI-V port.
L When "Auto" is selected, the baud rate is
automatically set according to the data rate of
external device.
L This setting is valid only when the "CI-V USB Port"
item is set to "Unlink from [REMOTE]."
CI-V USB Echo Back
Turns the Data Echo Back function ON or OFF, when
remotely controlling the IC-7610 through the [USB]
CI-V port.
L This setting is valid only when the "CI-V USB Port"
item is set to "Unlink from [REMOTE]."
» SET > Connectors > External Meter
MENU
External Meter Output (MAIN)
External Meter Output (SUB)
Selects the parameter (Main and Sub readout) to
output to an external meter.
External Meter Level (MAIN)
External Meter Level (SUB)
(Default: Auto)
Sets the output level to the external meter (Main and
Sub band).
MENU
Decode Baud Rate
(Default: 98)
Selects the data transfer rate (Baud rate) of decoded
signals.
SEND Relay Type
(Default: ON)
Selects the switching relay type for [RELAY].
Select the suitable relay type, especially when
connecting a non-Icom linear amplifier.
(Default: 00) ACC BAND Voltage Output
Selects the operating band voltage output from
[ACC2] (pin 4).
MIC Input DC Bias
Outputs the 8 V bias voltage (approximate) from the
microphone connector (pin 1 of [MIC]).
(Default: OFF)
REF IN
Selects the transceiver's reference frequency signal
source.
LThis setting will be valid after restarting the transceiver.
L If the applied reference signal is off frequency, or not high
enough, the IC-7610 will not work correctly. In that case,
select "OFF," and then restart the IC-7610.
(Default: Auto)

Network

MENU
DHCP
Turns the DHCP function ON or OFF.
(Default: OFF)
IP Address
Sets the static IP address.
Subnet Mask
Sets the subnet mask to connect to your PC or LAN
(Local Area Network), through the Ethernet.
Default Gateway
(Default: Auto)
lf you are operating the IC-7610 using the optional
(Default: Auto)
RS-BA1, a default gateway setting is required.
8-7
» SET > Connectors
» SET > Network
(Default: 192.168. 0. 10)
(Default: 255.255.255. 0 (24 bit))
8
SET MODE
(Default: 50%)
(Default: 50%)
(Default: 9600)
(Default: MOS-FET)
(Default: TX)
(Default: ON)
(Default: OFF)
(Default: ON( . . . ))
(Default: —)
