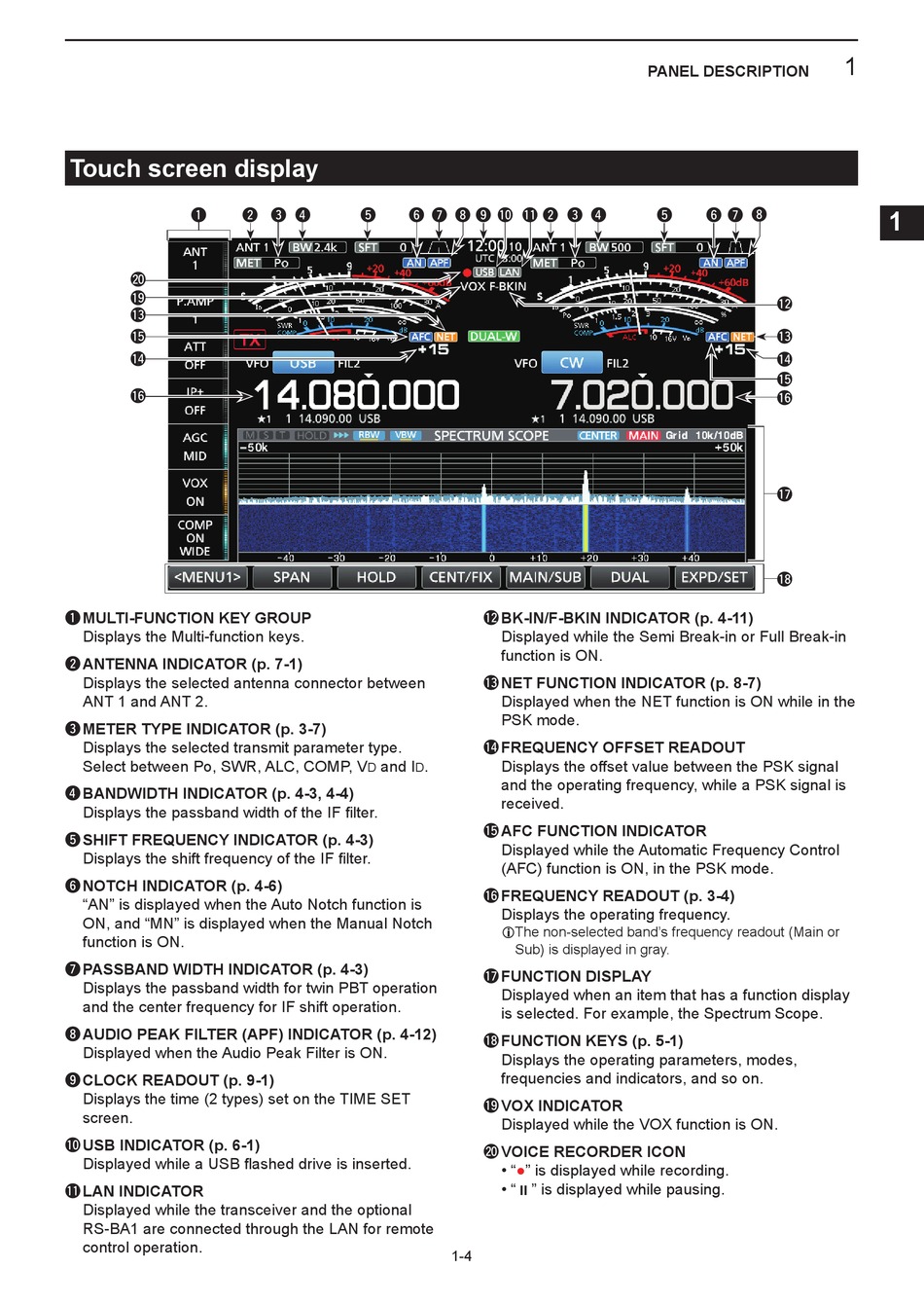

Touch screen display

q
@0
!9
!3
!5
!4
!6
q MULTI-FUNCTION KEY GROUP
Displays the Multi-function keys.
w ANTENNA INDICATOR (p. 7-1)
Displays the selected antenna connector between
ANT 1 and ANT 2.
e METER TYPE INDICATOR (p. 3-7)
Displays the selected transmit parameter type.
Select between Po, SWR, ALC, COMP, V
r BANDWIDTH INDICATOR (p. 4-3, 4-4)
D isplays the passband width of the IF filter.
t SHIFT FREQUENCY INDICATOR (p. 4-3)
D isplays the shift frequency of the IF filter.
y NOTCH INDICATOR (p. 4-6)
" AN" is displayed when the Auto Notch function is
ON, and "MN" is displayed when the Manual Notch
function is ON.
u PASSBAND WIDTH INDICATOR (p. 4-3)
Displays the passband width for twin PBT operation
and the center frequency for IF shift operation.
i AUDIO PEAK FILTER (APF) INDICATOR (p. 4-12)
D isplayed when the Audio Peak Filter is ON.
o CLOCK READOUT (p. 9-1)
Displays the time (2 types) set on the TIME SET
screen.
!0 USB INDICATOR (p. 6-1)
D isplayed while a USB flashed drive is inserted.
!1 LAN INDICATOR
Displayed while the transceiver and the optional
RS-BA1 are connected through the LAN for remote
control operation.
w e r t y
and I
d d
u i o !0 !1 w e r
!2 BK-IN/F-BKIN INDICATOR (p. 4-11)
Displayed while the Semi Break-in or Full Break-in
function is ON.
!3 NET FUNCTION INDICATOR (p. 8-7)
Displayed when the NET function is ON while in the
PSK mode.
!4 FREQUENCY OFFSET READOUT
. Displays the offset value between the PSK signal
and the operating frequency, while a PSK signal is
received.
!5 AFC FUNCTION INDICATOR
D isplayed while the Automatic Frequency Control
(AFC) function is ON, in the PSK mode.
!6 FREQUENCY READOUT (p. 3-4)
D isplays the operating frequency.
L T he non-selected band's frequency readout (Main or
Sub) is displayed in gray.
!7 FUNCTION DISPLAY
Displayed when an item that has a function display
is selected. For example, the Spectrum Scope.
!8 FUNCTION KEYS (p. 5-1)
D isplays the operating parameters, modes,
frequencies and indicators, and so on.
!9 VOX INDICATOR
Displayed while the VOX function is ON.
@0 VOICE RECORDER ICON
• "●" is displayed while recording.
• "" is displayed while pausing.
