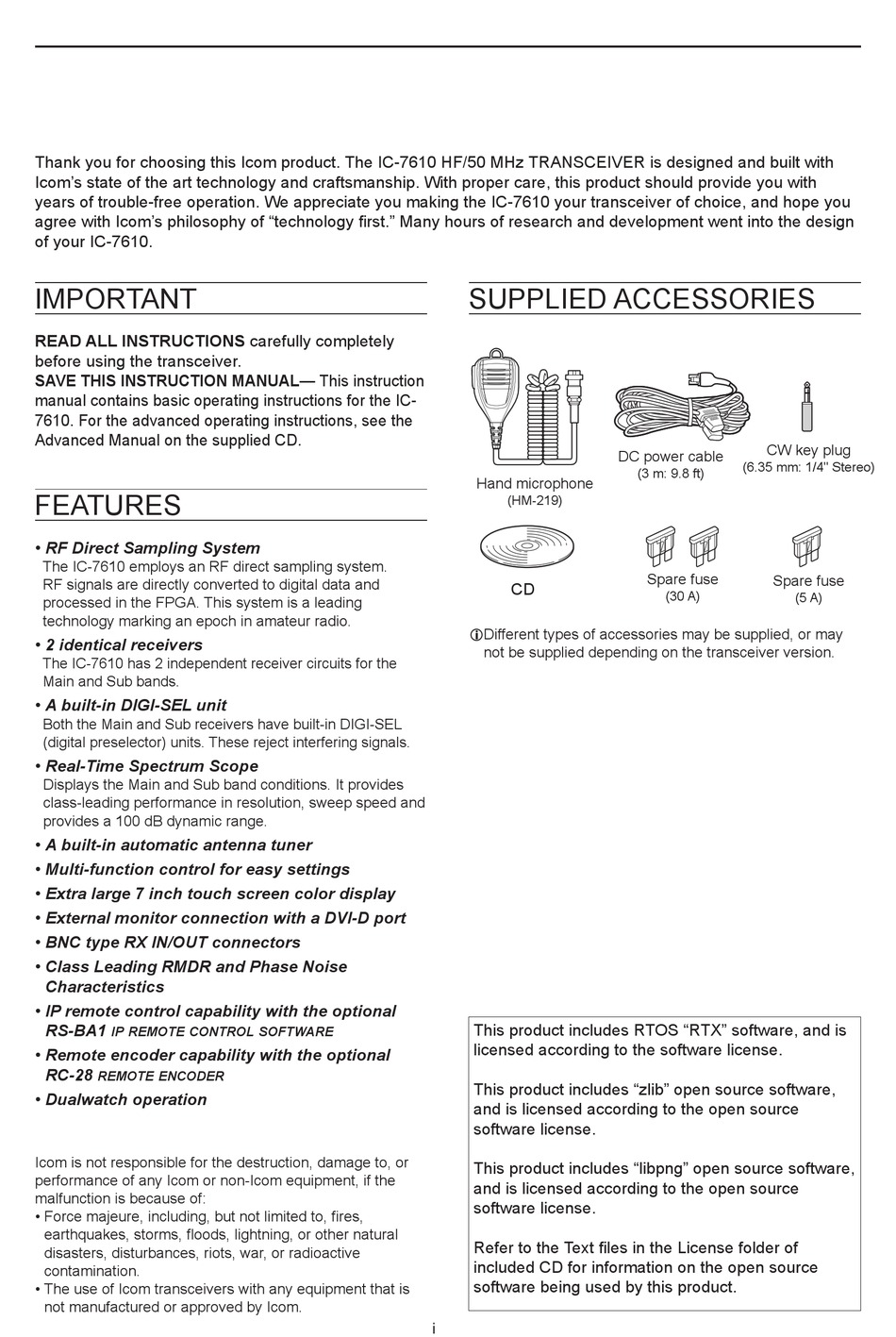

Important; Features; Supplied Accessories - Icom IC-7610 Basic Manual

Thank you for choosing this Icom product. The IC-7610 HF/50 MHz TRANSCEIVER is designed and built with
Icom's state of the art technology and craftsmanship. With proper care, this product should provide you with
years of trouble-free operation. We appreciate you making the IC-7610 your transceiver of choice, and hope you
agree with Icom's philosophy of "technology first." Many hours of research and development went into the design
of your IC-7610.

IMPORTANT

READ ALL INSTRUCTIONS carefully completely
before using the transceiver.
SAVE THIS INSTRUCTION MANUAL— This instruction
manual contains basic operating instructions for the IC-
7610. For the advanced operating instructions, see the
Advanced Manual on the supplied CD.

FEATURES

• RF Direct Sampling System
The IC-7610 employs an RF direct sampling system.
RF signals are directly converted to digital data and
processed in the FPGA. This system is a leading
technology marking an epoch in amateur radio.
• 2 identical receivers
The IC-7610 has 2 independent receiver circuits for the
Main and Sub bands.
• A built-in DIGI-SEL unit
Both the Main and Sub receivers have built-in DIGI-SEL
(digital preselector) units. These reject interfering signals.
• Real-Time Spectrum Scope
Displays the Main and Sub band conditions. It provides
class-leading performance in resolution, sweep speed and
provides a 100 dB dynamic range.
• A built-in automatic antenna tuner
• Multi-function control for easy settings
• Extra large 7 inch touch screen color display
• External monitor connection with a DVI-D port
• BNC type RX IN/OUT connectors
• Class Leading RMDR and Phase Noise
Characteristics
• IP remote control capability with the optional
RS-BA1
ip remote control software
• Remote encoder capability with the optional
RC-28
remote encoder
• Dualwatch operation
Icom is not responsible for the destruction, damage to, or
performance of any Icom or non-Icom equipment, if the
malfunction is because of:
• Force majeure, including, but not limited to, fires,
earthquakes, storms, floods, lightning, or other natural
disasters, disturbances, riots, war, or radioactive
contamination.
• The use of Icom transceivers with any equipment that is
not manufactured or approved by Icom.

SUPPLIED ACCESSORIES

Hand microphone
(HM-219)
CD
L Different types of accessories may be supplied, or may
not be supplied depending on the transceiver version.
This product includes RTOS "RTX" software, and is
licensed according to the software license.
This product includes "zlib" open source software,
and is licensed according to the open source
software license.
This product includes "libpng" open source software,
and is licensed according to the open source
software license.
Refer to the Text files in the License folder of
included CD for information on the open source
software being used by this product.
i
CW key plug
DC power cable
(6.35 mm: 1/4" Stereo)
(3 m: 9.8 ft)
Spare fuse
Spare fuse
(30 A)
(5 A)
