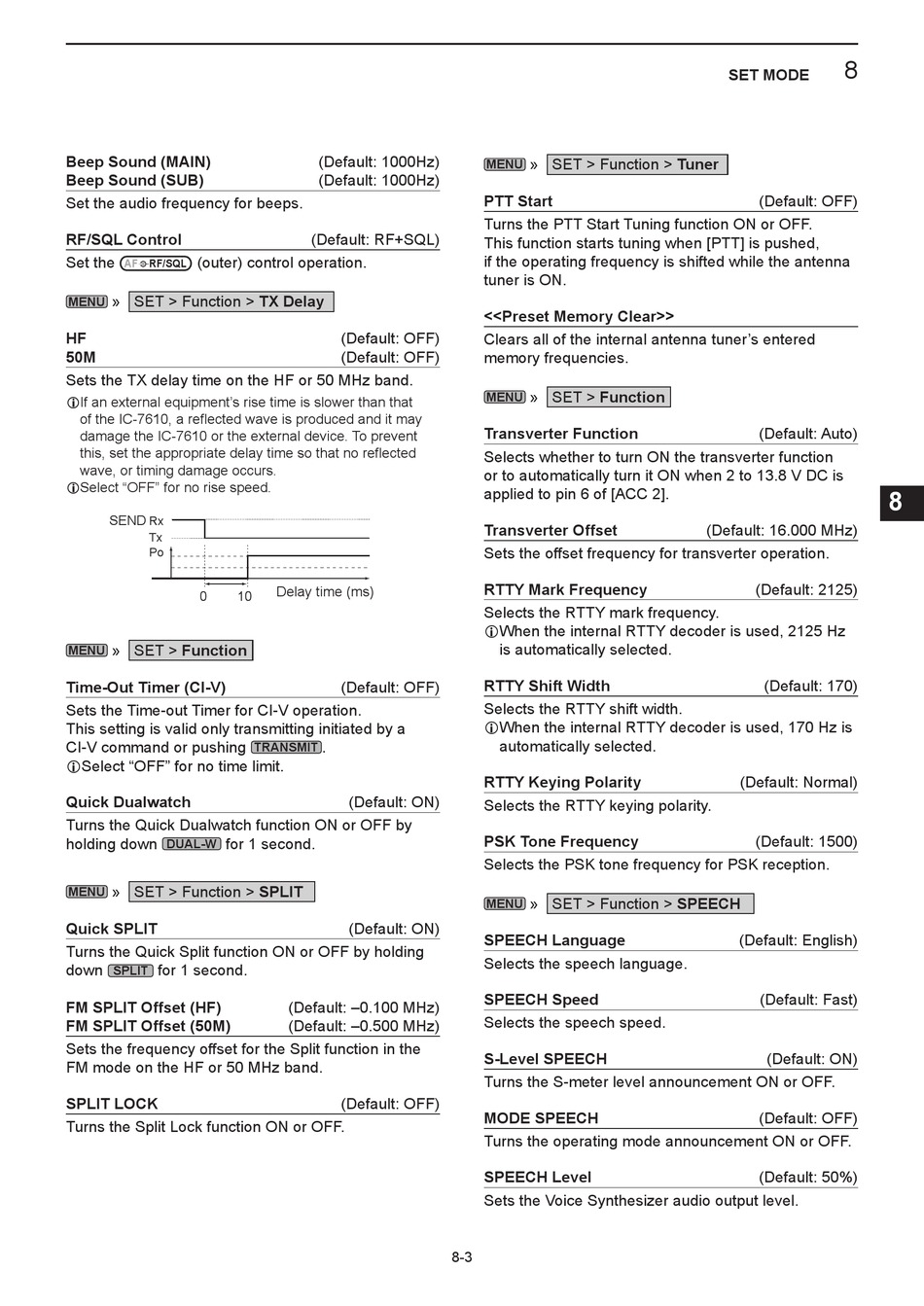

Icom IC-7610 Basic Manual page 55

Beep Sound (MAIN)
Beep Sound (SUB)
Set the audio frequency for beeps.
RF/SQL Control
Set the (outer) control operation.
AF RF/SQL
» SET > Function > TX Delay
MENU
HF
50M
Sets the TX delay time on the HF or 50 MHz band.
L If an external equipment's rise time is slower than that
of the IC-7610, a reflected wave is produced and it may
damage the IC-7610 or the external device. To prevent
this, set the appropriate delay time so that no reflected
wave, or timing damage occurs.
LSelect "OFF" for no rise speed.
SEND
Rx
Tx
Po
0 10
» SET > Function
MENU
Time-Out Timer (CI-V)
Sets the Time-out Timer for CI-V operation.
This setting is valid only transmitting initiated by a
CI-V command or pushing
LSelect "OFF" for no time limit.
Quick Dualwatch
Turns the Quick Dualwatch function ON or OFF by
holding down for 1 second.
DUAL-W
» SET > Function > SPLIT
MENU
Quick SPLIT
Turns the Quick Split function ON or OFF by holding
down for 1 second.
SPLIT
FM SPLIT Offset (HF)
FM SPLIT Offset (50M)
Sets the frequency offset for the Split function in the
FM mode on the HF or 50 MHz band.
SPLIT LOCK
Turns the Split Lock function ON or OFF.
(Default: 1000Hz)
(Default: 1000Hz)
(Default: RF+SQL)
(Default: OFF)
(Default: OFF)
Delay time (ms)
(Default: OFF)
.
TRANSMIT
(Default: ON)
(Default: ON)
(Default: –0.100 MHz)
(Default: –0.500 MHz)
(Default: OFF)
» SET > Function > Tuner
MENU
PTT Start
Turns the PTT Start Tuning function ON or OFF.
This function starts tuning when [PTT] is pushed,
if the operating frequency is shifted while the antenna
tuner is ON.
<<Preset Memory Clear>>
Clears all of the internal antenna tuner's entered
memory frequencies.
» SET > Function
MENU
Transverter Function
Selects whether to turn ON the transverter function
or to automatically turn it ON when 2 to 13.8 V DC is
applied to pin 6 of [ACC 2].
Transverter Offset
Sets the offset frequency for transverter operation.
RTTY Mark Frequency
Selects the RTTY mark frequency.
L When the internal RTTY decoder is used, 2125 Hz
is automatically selected.
RTTY Shift Width
Selects the RTTY shift width.
L When the internal RTTY decoder is used, 170 Hz is
automatically selected.
RTTY Keying Polarity
Selects the RTTY keying polarity.
PSK Tone Frequency
Selects the PSK tone frequency for PSK reception.
» SET > Function > SPEECH
MENU
SPEECH Language
Selects the speech language.
SPEECH Speed
Selects the speech speed.
S-Level SPEECH
Turns the S-meter level announcement ON or OFF.
MODE SPEECH
Turns the operating mode announcement ON or OFF.
SPEECH Level
Sets the Voice Synthesizer audio output level.
8-3
8
SET MODE
(Default: OFF)
(Default: Auto)
(Default: 16.000 MHz)
(Default: 2125)
(Default: 170)
(Default: Normal)
(Default: 1500)
(Default: English)
(Default: Fast)
(Default: ON)
(Default: OFF)
(Default: 50%)
