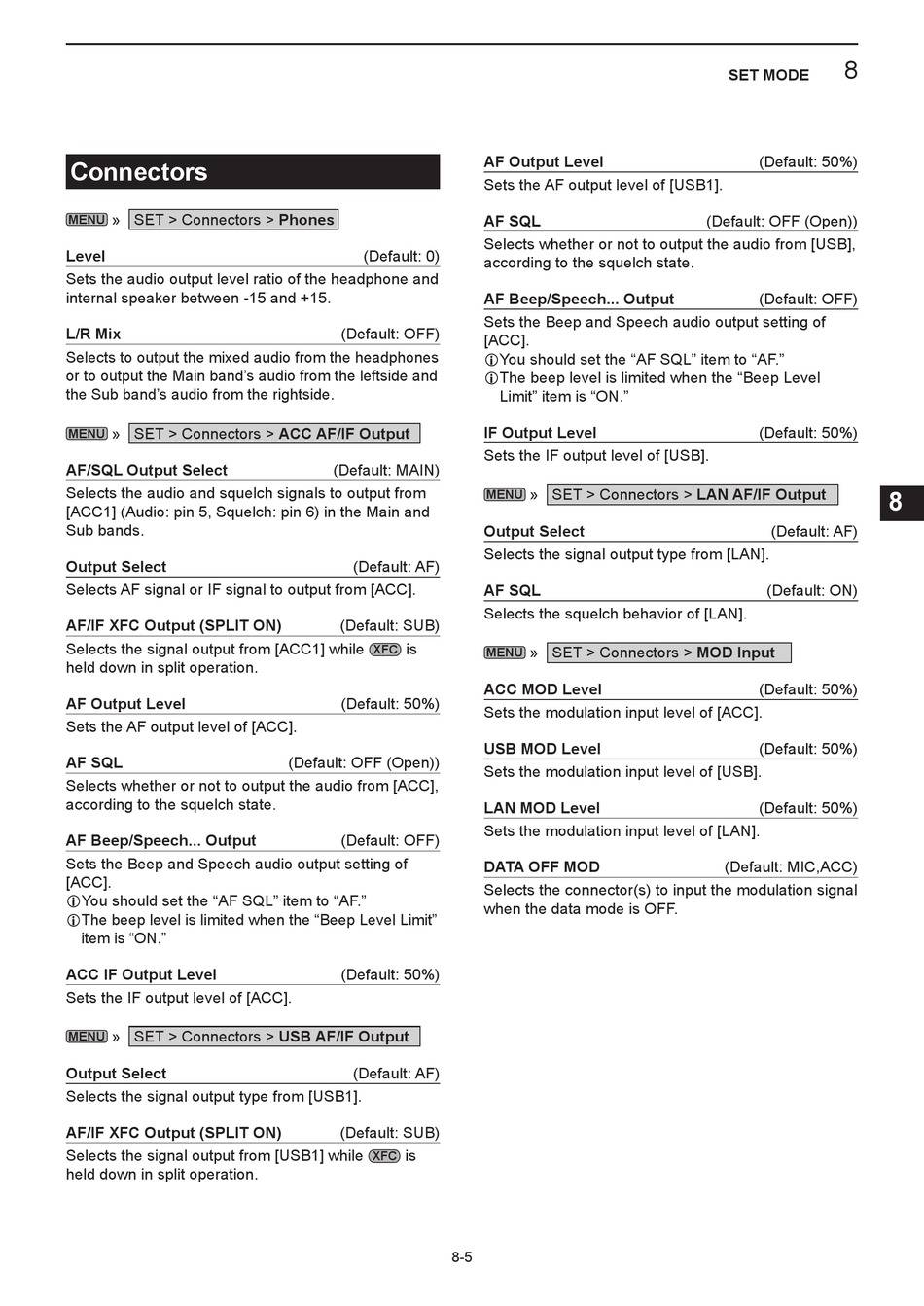

Connectors - Icom IC-7610 Basic Manual

Connectors

» SET > Connectors > Phones
MENU
Level
Sets the audio output level ratio of the headphone and
internal speaker between -15 and +15.
L/R Mix
Selects to output the mixed audio from the headphones
or to output the Main band's audio from the leftside and
the Sub band's audio from the rightside.
» SET > Connectors > ACC AF/IF Output
MENU
AF/SQL Output Select
Selects the audio and squelch signals to output from
[ACC1] (Audio: pin 5, Squelch: pin 6) in the Main and
Sub bands.
Output Select
Selects AF signal or IF signal to output from [ACC].
AF/IF XFC Output (SPLIT ON)
Selects the signal output from [ACC1] while
held down in split operation.
AF Output Level
Sets the AF output level of [ACC].
AF SQL
Selects whether or not to output the audio from [ACC],
according to the squelch state.
AF Beep/Speech... Output
Sets the Beep and Speech audio output setting of
[ACC].
L You should set the "AF SQL" item to "AF."
L The beep level is limited when the "Beep Level Limit"
item is "ON."
ACC IF Output Level
Sets the IF output level of [ACC].
» SET > Connectors > USB AF/IF Output
MENU
Output Select
Selects the signal output type from [USB1].
AF/IF XFC Output (SPLIT ON)
Selects the signal output from [USB1] while
held down in split operation.
(Default: 0)
(Default: OFF)
(Default: MAIN)
(Default: AF)
(Default: SUB)
is
XFC
(Default: 50%)
(Default: OFF (Open))
(Default: OFF)
(Default: 50%)
(Default: AF)
(Default: SUB)
is
XFC
8-5
AF Output Level
Sets the AF output level of [USB1].
AF SQL
Selects whether or not to output the audio from [USB],
according to the squelch state.
AF Beep/Speech... Output
Sets the Beep and Speech audio output setting of
[ACC].
L You should set the "AF SQL" item to "AF."
L The beep level is limited when the "Beep Level
Limit" item is "ON."
IF Output Level
Sets the IF output level of [USB].
» SET > Connectors > LAN AF/IF Output
MENU
Output Select
Selects the signal output type from [LAN].
AF SQL
Selects the squelch behavior of [LAN].
» SET > Connectors > MOD Input
MENU
ACC MOD Level
Sets the modulation input level of [ACC].
USB MOD Level
Sets the modulation input level of [USB].
LAN MOD Level
Sets the modulation input level of [LAN].
DATA OFF MOD
Selects the connector(s) to input the modulation signal
when the data mode is OFF.
8
SET MODE
(Default: 50%)
(Default: OFF (Open))
(Default: OFF)
(Default: 50%)
(Default: AF)
(Default: ON)
(Default: 50%)
(Default: 50%)
(Default: 50%)
(Default: MIC,ACC)
