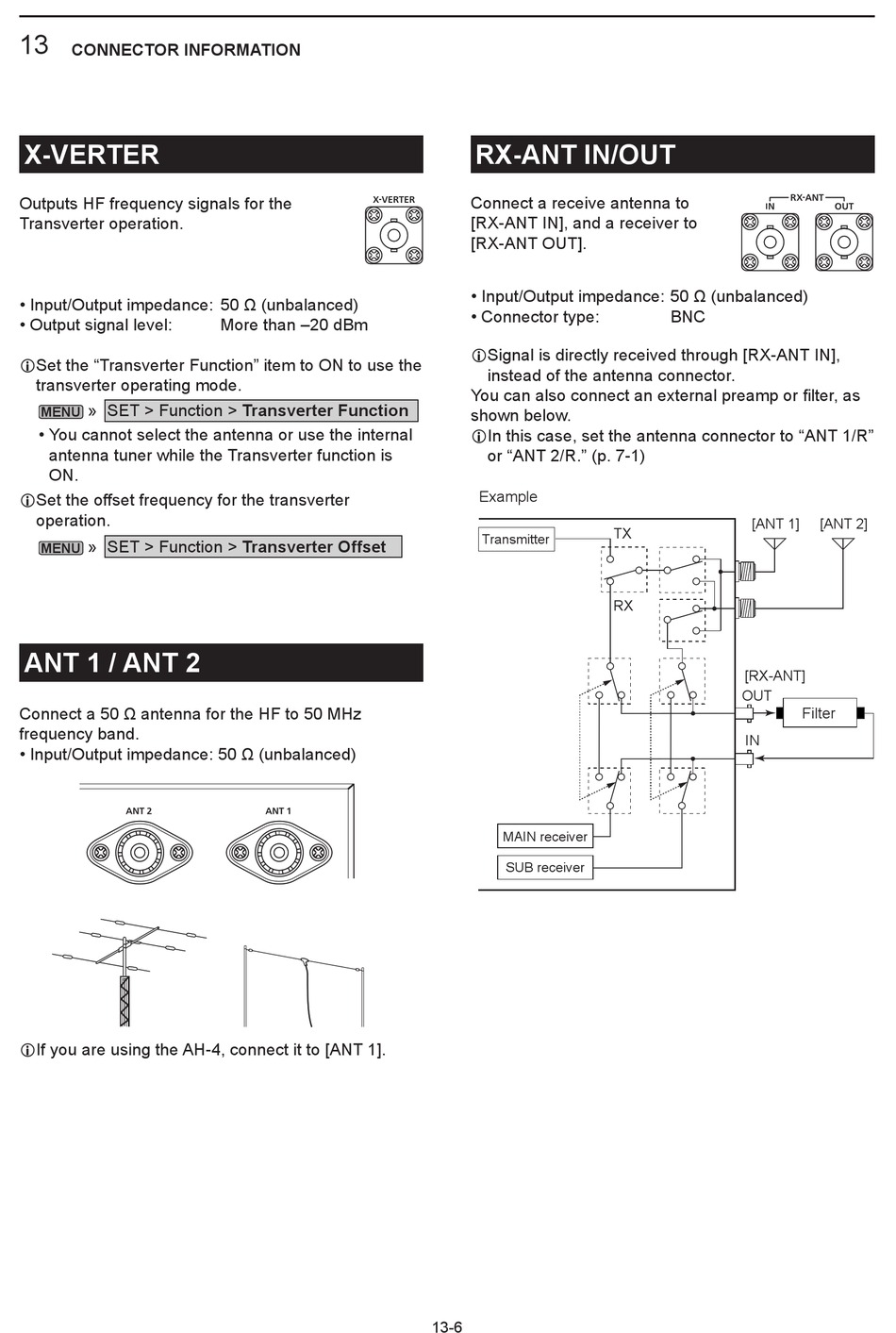

X-Verter; Ant 1 / Ant 2; Rx-Ant In/Out - Icom IC-7610 Basic Manual

13
CONNECTOR INFORMATION

X-VERTER

Outputs HF frequency signals for the
Transverter operation.
• Input/Output impedance: 50 Ω (unbalanced)
• Output signal level:
L Set the "Transverter Function" item to ON to use the
transverter operating mode.
» SET > Function > Transverter Function
MENU
• You cannot select the antenna or use the internal
antenna tuner while the Transverter function is
ON.
L Set the offset frequency for the transverter
operation.
» SET > Function > Transverter Offset
MENU

ANT 1 / ANT 2

Connect a 50 Ω antenna for the HF to 50 MHz
frequency band.
• Input/Output impedance: 50 Ω (unbalanced)
LIf you are using the AH-4, connect it to [ANT 1].
More than –20 dBm

RX-ANT IN/OUT

Connect a receive antenna to
[RX-ANT IN], and a receiver to
[RX-ANT OUT].
• Input/Output impedance: 50 Ω (unbalanced)
• Connector type:
L Signal is directly received through [RX-ANT IN],
instead of the antenna connector.
You can also connect an external preamp or filter, as
shown below.
L In this case, set the antenna connector to "ANT 1/R"
or "ANT 2/R." (p. 7-1)
Example
Transmitter
MAIN receiver
SUB receiver
13-6
BNC
[ANT 1]
TX
RX
[RX-ANT]
OUT
IN
[ANT 2]
Filter
