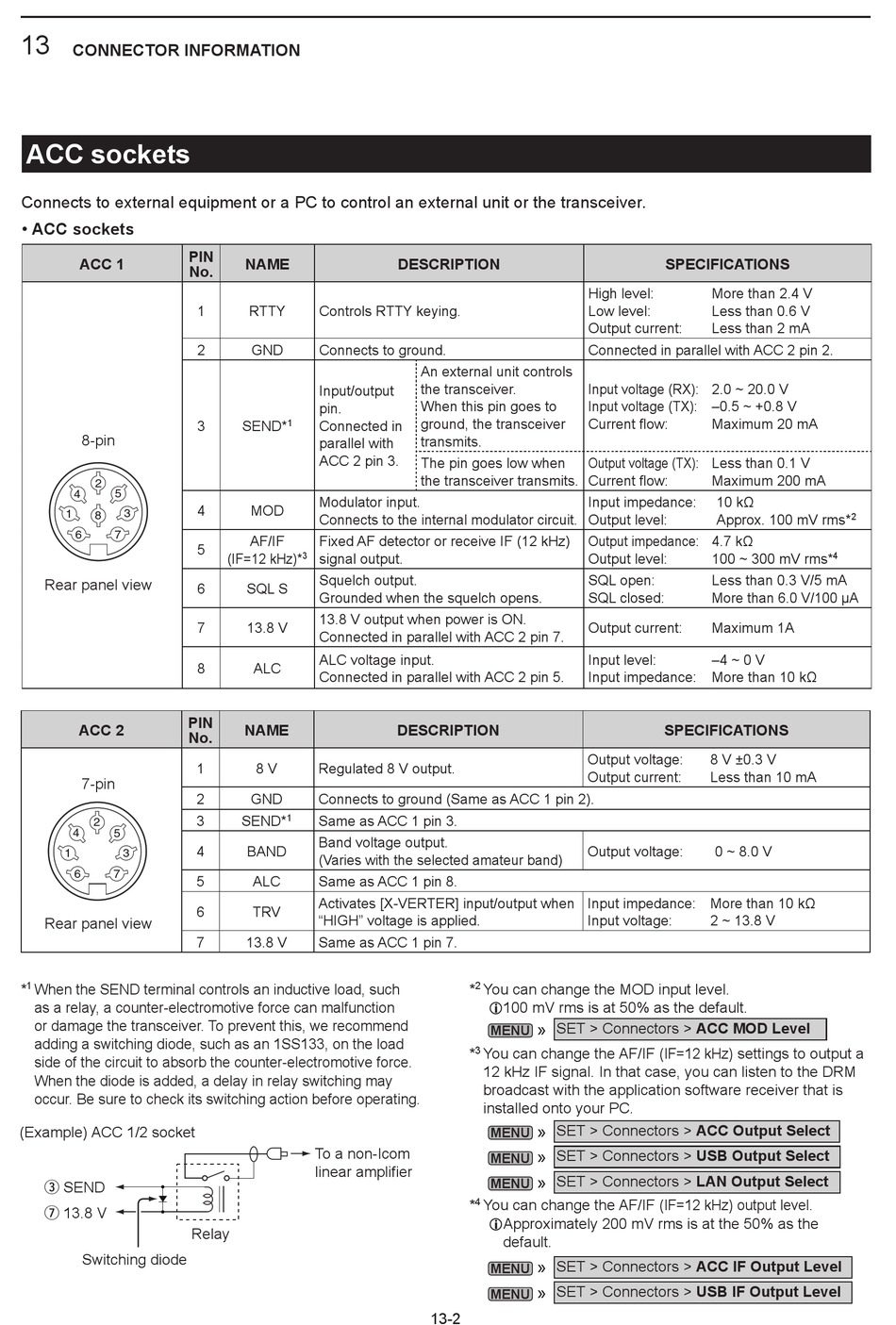

CONNECTOR INFORMATION

ACC sockets

Connects to external equipment or a PC to control an external unit or the transceiver.
• ACC sockets
ACC 1
8-pin
2
5
4
3
1
8
6 7
Rear panel view
PIN
ACC 2
No.
7-pin
2
4 5
1 3
6 7
Rear panel view
* 1 When the SEND terminal controls an inductive load, such
as a relay, a counter-electromotive force can malfunction
or damage the transceiver. To prevent this, we recommend
adding a switching diode, such as an 1SS133, on the load
side of the circuit to absorb the counter-electromotive force.
When the diode is added, a delay in relay switching may
occur. Be sure to check its switching action before operating.
(Example) ACC 1/2 socket
e SEND
u 13.8 V
Switching diode
PIN
NAME
No.
1 RTTY Controls RTTY keying.
2 GND Connects to ground.
Input/output
pin.
3 SEND* 1 Connected in
parallel with
ACC 2 pin 3.
Modulator input.
4 MOD
Connects to the internal modulator circuit.
AF/IF Fixed AF detector or receive IF (12 kHz)
5
(IF=12 kHz)* 3 signal output.
Squelch output.
6 SQL S
Grounded when the squelch opens.
13.8 V output when power is ON.
7 13.8 V
Connected in parallel with ACC 2 pin 7.
ALC voltage input.
8 ALC
Connected in parallel with ACC 2 pin 5.
NAME
1 8 V Regulated 8 V output.
2 GND Connects to ground (Same as ACC 1 pin 2).
3 SEND*
1 Same as ACC 1 pin 3.
Band voltage output.
4 BAND
(Varies with the selected amateur band)
5 ALC Same as ACC 1 pin 8.
Activates [X-VERTER] input/output when
6 TRV
"HIGH" voltage is applied.
7 13.8 V Same as ACC 1 pin 7.
To a non-Icom
linear amplifier
Relay
DESCRIPTION
An external unit controls
the transceiver.
When this pin goes to
ground, the transceiver
transmits.
The pin goes low when
the transceiver transmits.
DESCRIPTION
* 2 You can change the MOD input level.
L100 mV rms is at 50% as the default.
» SET > Connectors > ACC MOD Level
MENU
* 3 You can change the AF/IF (IF=12 kHz) settings to output a
12 kHz IF signal. In that case, you can listen to the DRM
broadcast with the application software receiver that is
installed onto your PC.
» SET > Connectors > ACC Output Select
MENU
»
SET > Connectors > USB Output Select
MENU
»
SET > Connectors > LAN Output Select
MENU
* 4 You can change the AF/IF (IF=12 kHz) output level.
L Approximately 200 mV rms is at the 50% as the
default.
» SET > Connectors > ACC IF Output Level
MENU
» SET > Connectors > USB IF Output Level
MENU
13-2
SPECIFICATIONS
High level: More than 2.4 V
Low level: Less than 0.6 V
Output current: Less than 2 mA
Connected in parallel with ACC 2 pin 2.
Input voltage (RX): 2.0 ~ 20.0 V
Input voltage (TX): –0.5 ~ +0.8 V
Current flow: Maximum 20 mA
Output voltage (TX): Less than 0.1 V
Current flow: Maximum 200 mA
Input impedance: 10 kΩ
Output level: Approx. 100 mV rms*
Output impedance: 4.7 kΩ
Output level: 100 ~ 300 mV rms*
SQL open: Less than 0.3 V/5 mA
SQL closed: More than 6.0 V/100 μA
Output current: Maximum 1A
Input level: –4 ~ 0 V
Input impedance: More than 10 kΩ
SPECIFICATIONS
Output voltage: 8 V ±0.3 V
Output current: Less than 10 mA
Output voltage: 0 ~ 8.0 V
Input impedance: More than 10 kΩ
Input voltage: 2 ~ 13.8 V
2
4
