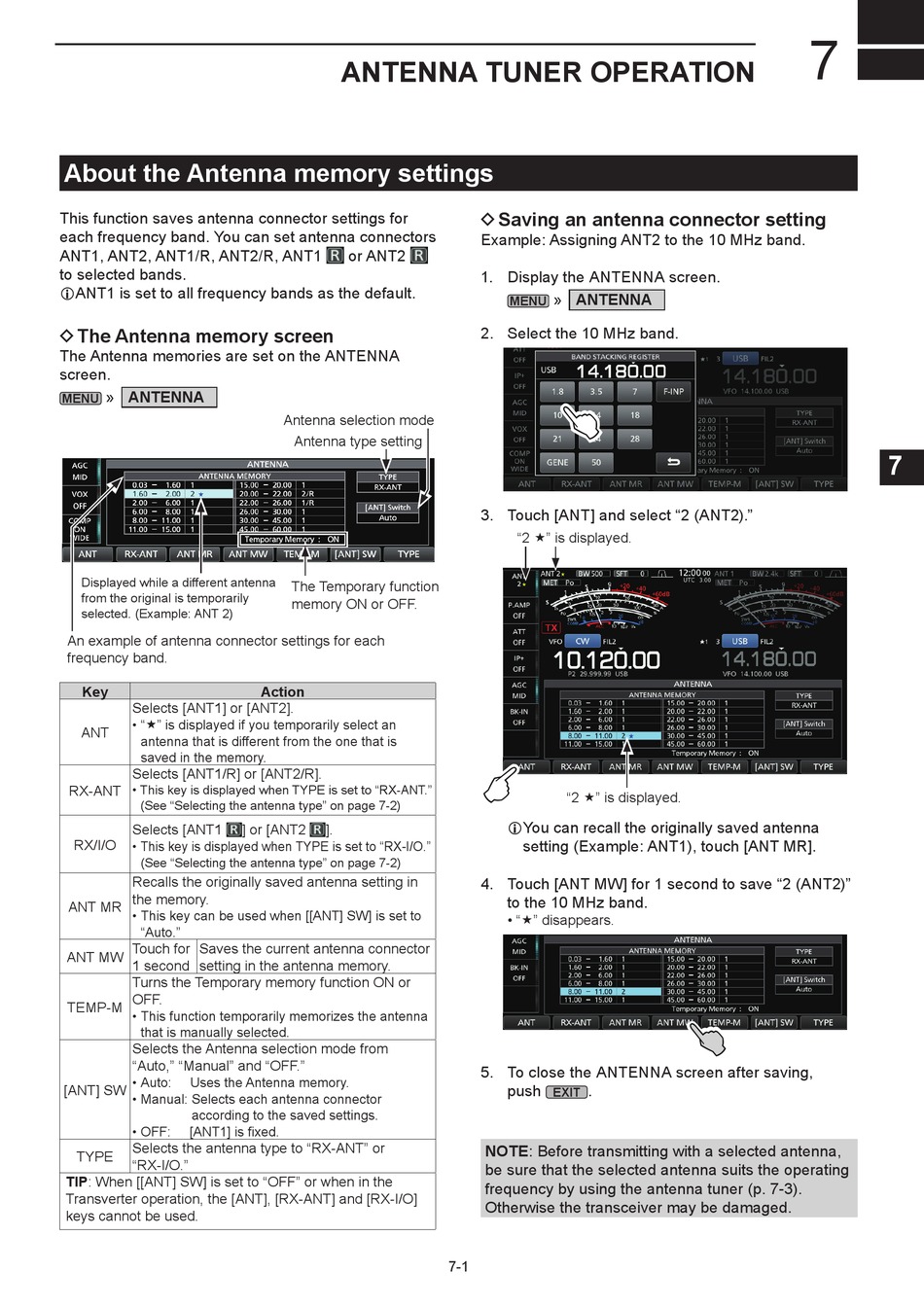

About the Antenna memory settings

This function saves antenna connector settings for
each frequency band. You can set antenna connectors
ANT1, ANT2, ANT1/R, ANT2/R, ANT1
to selected bands.
LANT1 is set to all frequency bands as the default.

D The Antenna memory screen

The Antenna memories are set on the ANTENNA
screen.
» ANTENNA
MENU
Displayed while a different antenna
from the original is temporarily
selected. (Example: ANT 2)
An example of antenna connector settings for each
frequency band.
Key
Selects [ANT1] or [ANT2].
• "" is displayed if you temporarily select an
ANT
antenna that is different from the one that is
saved in the memory.
Selects [ANT1/R] or [ANT2/R].
RX-ANT • This key is displayed when TYPE is set to "RX-ANT."
(See "Selecting the antenna type" on page 7-2)
Selects [ANT1
RX/I/O
• This key is displayed when TYPE is set to "RX-I/O."
(See "Selecting the antenna type" on page 7-2)
Recalls the originally saved antenna setting in
the memory.
ANT MR
• This key can be used when [[ANT] SW] is set to
"Auto."
Touch for Saves the current antenna connector
ANT MW
1 second setting in the antenna memory.
Turns the Temporary memory function ON or
OFF.
TEMP-M
• This function temporarily memorizes the antenna
that is manually selected.
Selects the Antenna selection mode from
"Auto," "Manual" and "OFF."
• Auto: Uses the Antenna memory.
[ANT] SW
• Manual: Selects each antenna connector
according to the saved settings.
• OFF: [ANT1] is fixed.
Selects the antenna type to "RX-ANT" or
TYPE
"RX-I/O."
TIP: When [[ANT] SW] is set to "OFF" or when in the
Transverter operation, the [ANT], [RX-ANT] and [RX-I/O]
keys cannot be used.

ANTENNA TUNER OPERATION

or ANT2
Antenna selection mode
Antenna type setting
The Temporary function
memory ON or OFF.
Action
] or [ANT2 ].

D Saving an antenna connector setting

Example: Assigning ANT2 to the 10 MHz band.
1. Display the ANTENNA screen.
» ANTENNA
MENU
2. Select the 10 MHz band.
3. Touch [ANT] and select "2 (ANT2)."
"2 " is displayed.
"2 " is displayed.
L You can recall the originally saved antenna
setting (Example: ANT1), touch [ANT MR].
4. Touch [ANT MW] for 1 second to save "2 (ANT2)"
to the 10 MHz band.
• "" disappears.
5. To close the ANTENNA screen after saving,
push .
EXIT
NOTE: Before transmitting with a selected antenna,
be sure that the selected antenna suits the operating
frequency by using the antenna tuner (p. 7-3).
Otherwise the transceiver may be damaged.
7-1
