Touch screen display (Continued)

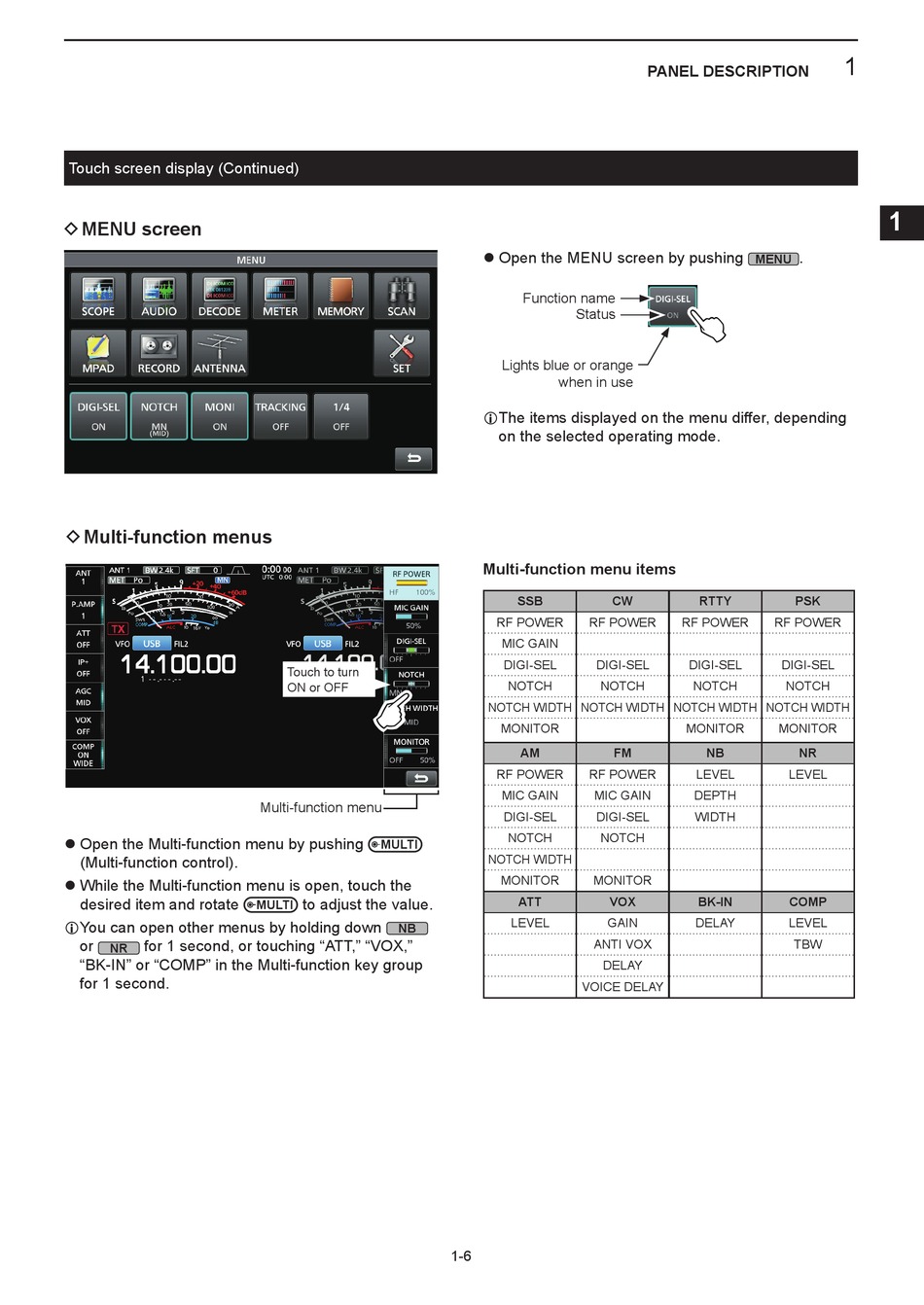

D MENU screen

D Multi-function menus

z Open the Multi-function menu by pushing
(Multi-function control).
z W hile the Multi-function menu is open, touch the
desired item and rotate
L Y ou can open other menus by holding down
or for 1 second, or touching "ATT," "VOX,"
NR
"BK-IN" or "COMP" in the Multi-function key group
for 1 second.
Touch to turn
ON or OFF
Multi-function menu
MULTI
to adjust the value.
MULTI
NB
z Open the MENU screen by pushing
Function name
Status
Lights blue or orange
when in use
L T he items displayed on the menu differ, depending
on the selected operating mode.
Multi-function menu items
SSB CW
RF POWER RF POWER
MIC GAIN
DIGI-SEL DIGI-SEL
NOTCH NOTCH
NOTCH WIDTH NOTCH WIDTH NOTCH WIDTH NOTCH WIDTH
MONITOR
AM FM
RF POWER RF POWER
MIC GAIN MIC GAIN
DIGI-SEL DIGI-SEL
NOTCH NOTCH
NOTCH WIDTH
MONITOR MONITOR
ATT VOX
LEVEL GAIN
ANTI VOX
DELAY
VOICE DELAY
1-6
PANEL DESCRIPTION
.
MENU
RTTY PSK
RF POWER RF POWER
DIGI-SEL DIGI-SEL
NOTCH NOTCH
MONITOR MONITOR
NB NR
LEVEL LEVEL
DEPTH
WIDTH
BK-IN COMP
DELAY LEVEL
TBW
