INSTALLATION AND CONNECTIONS

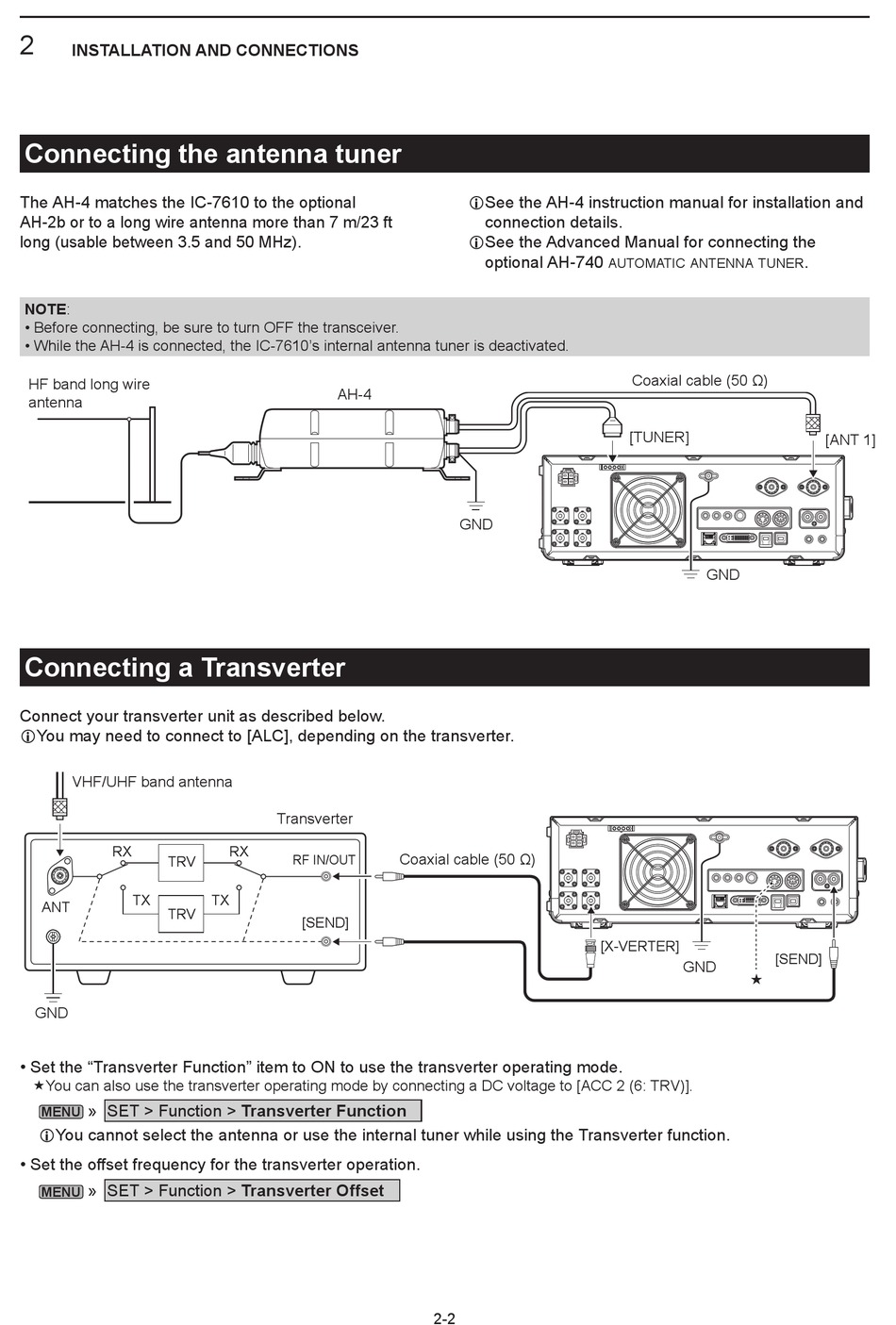

Connecting the antenna tuner

The AH-4 matches the IC-7610 to the optional
AH-2b or to a long wire antenna more than 7 m/23 ft
long (usable between 3.5 and 50 MHz).
NOTE:
• Before connecting, be sure to turn OFF the transceiver.
• While the AH-4 is connected, the IC-7610ʼs internal antenna tuner is deactivated.
HF band long wire
antenna

Connecting a Transverter

Connect your transverter unit as described below.
L You may need to connect to [ALC], depending on the transverter.
VHF/UHF band antenna
RX
TRV
TX
ANT
TRV
GND
• Set the "Transverter Function" item to ON to use the transverter operating mode.
 You can also use the transverter operating mode by connecting a DC voltage to [ACC 2 (6: TRV)].
» SET > Function > Transverter Function
MENU
LYou cannot select the antenna or use the internal tuner while using the Transverter function.
• Set the offset frequency for the transverter operation.
» SET > Function > Transverter Offset
MENU
AH-4
Transverter
RX
RF IN/OUT
TX
[SEND]
L See the AH-4 instruction manual for installation and
connection details.
L See the Advanced Manual for connecting the
optional AH-740
GND
Coaxial cable (50 Ω)
2-2
automatic antenna tuner
Coaxial cable (50 Ω)
[TUNER]
GND
[X-VERTER]
GND

.
[ANT 1]
[SEND]
