Front and Rear Panel Components

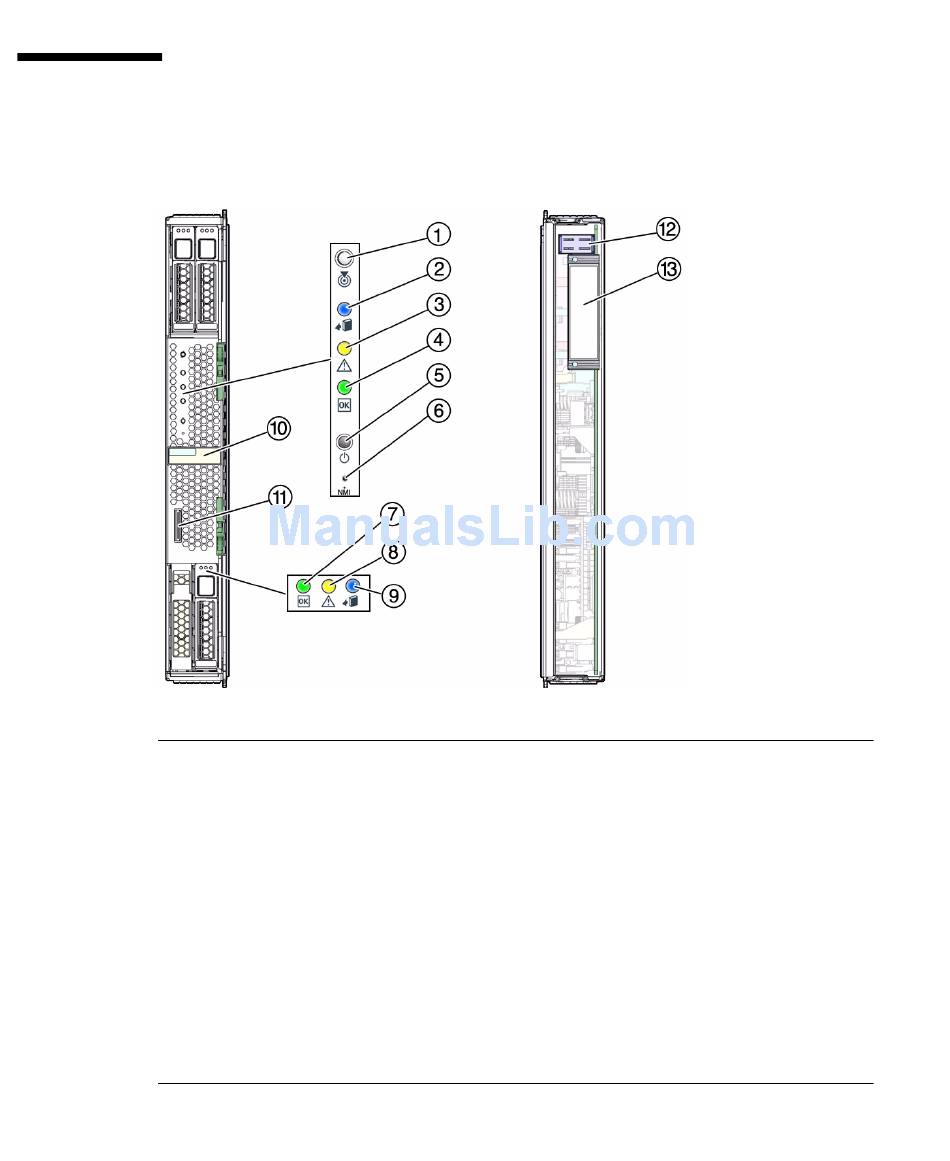

FIGURE:
Figure Legend
1
2
3
4
5
6
7
8
9
10
11
12
13
2 SPARC T3-1B Server Module Service Manual • July 2012
Front and Rear Components
White LED: Locator (functions as the physical presence switch)
Blue LED: Ready to Remove
Amber LED: Service Action Required
Green LED: OK
Power button
Reset button: NMI (for service use only)
Green LED: Drive OK
Amber LED: Drive Service Action Required
Blue LED: Drive Ready to Remove
RFID (sticker indicates serial number of the server module)
Universal connector port (UCP)
Chassis power connector
Chassis data connector
