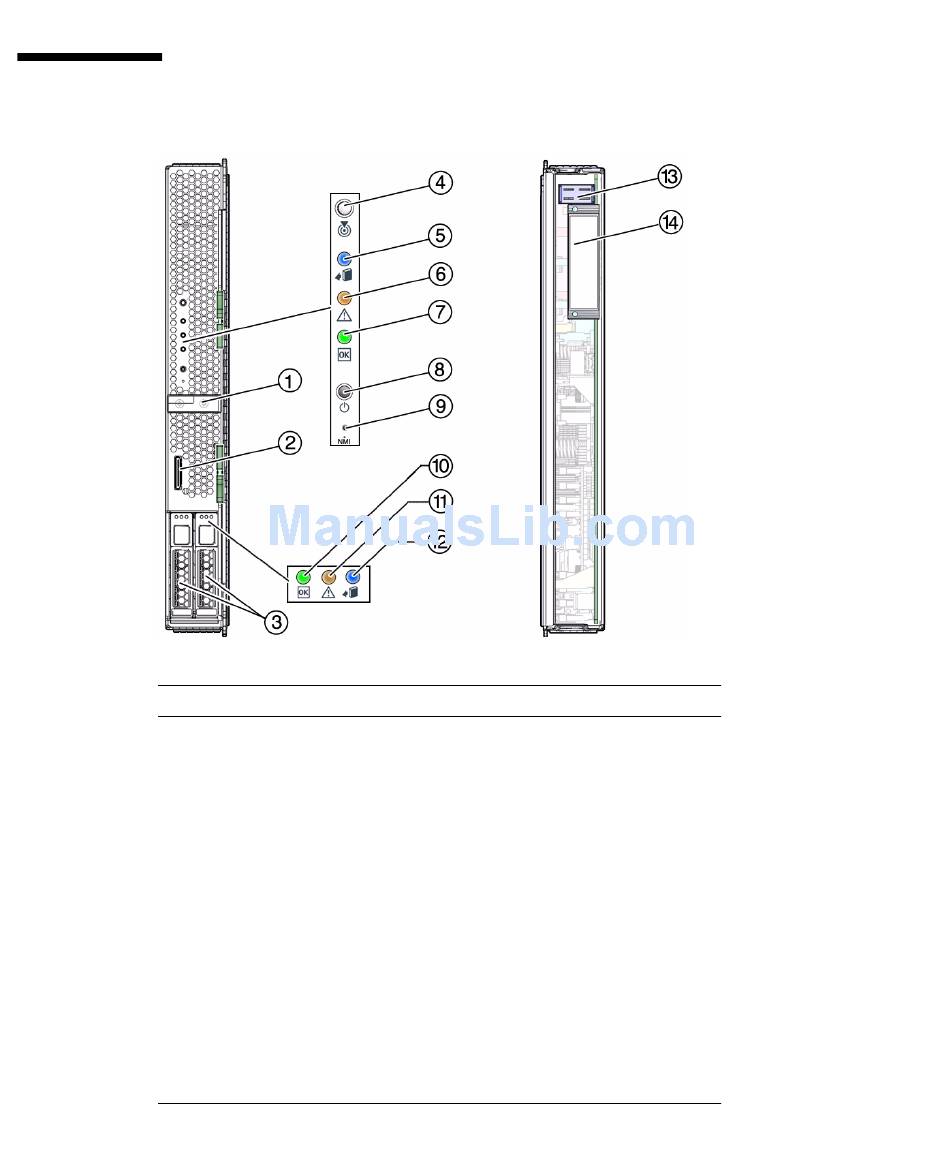

Front and Rear Panel Components
No.
1
2
3
4
5
6
7
8
9
10
11
12
4
SPARC T4-1B Server Module Installation Guide • May 2012
Description
RFID tag (provides the serial number of the server module)
Universal connector port (UCP)
Drive slots
White LED: Locator (functions as the physical presence switch)
Blue LED: Ready to Remove
Amber LED: Fault (Service Action Required)
Green LED: OK
Power button
Reset button: NMI (for service use only)
Green LED: Drive OK
Amber LED: Drive Fault (Service Action Required)
Blue LED: Drive Ready to Remove
