Model 6 Motor Control Centers
Appendix A—Removal and Installation of Horizontal Bus Barrier Panels

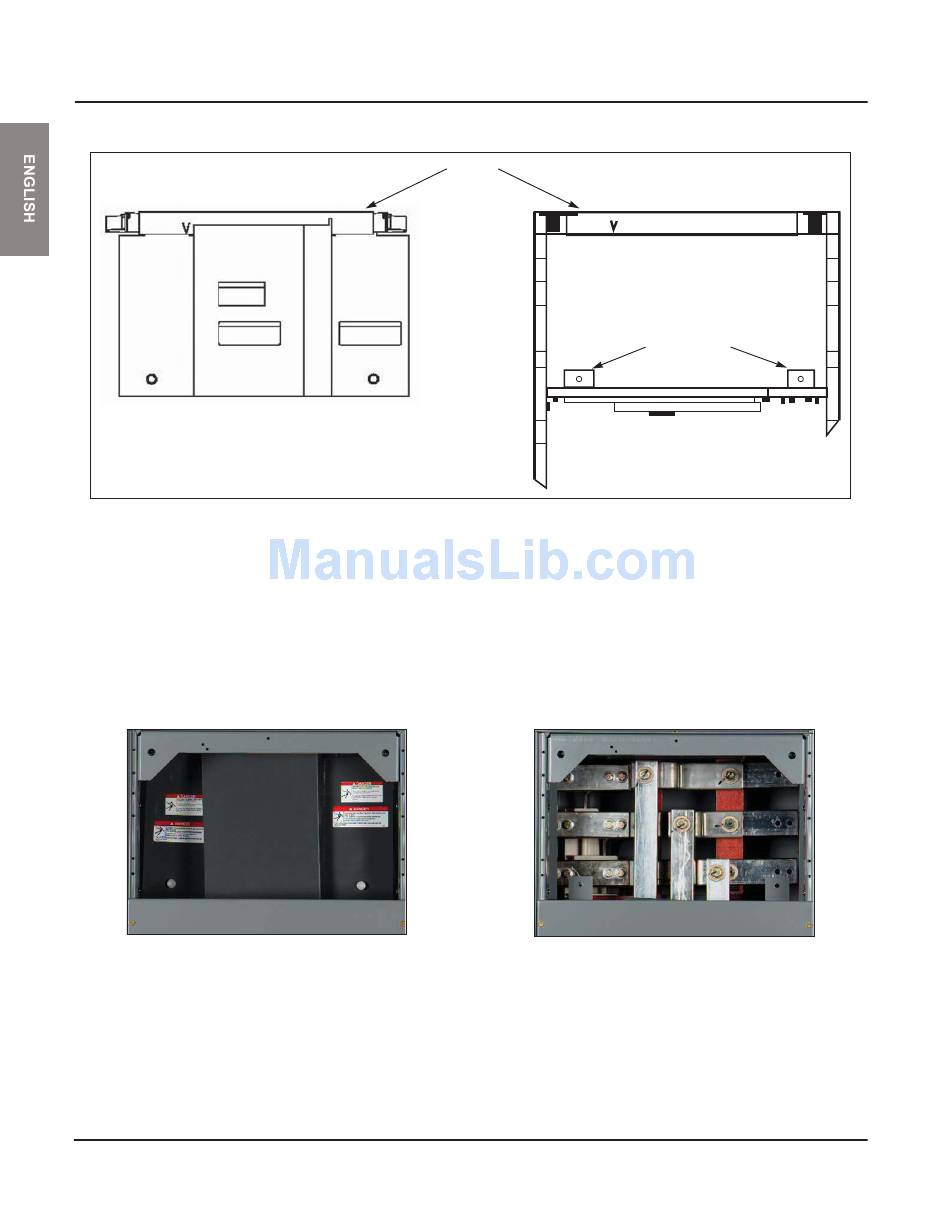

Figure 133: Horizontal Bus Barrier Installation and Removal
Barrier Installed
Installation
Figure 134: Barrier Installed and Removed
Installed
116
Top track
1. Turn off all power supplying this equipment before working on or inside
the equipment, and follow lockout/tagout procedures. Always use a
properly rated voltage sensing device to confirm the power is off.
2. Insert the tab on the right side panel into the top track on the right side of
the MCC and set it into place (see Figure 132 on page 115 and
Figure 133).
3. Secure the right side panel by pushing the rivet firmly into the hole of the
mounting bracket.
4. Repeat steps 2 and 3 for the left side panel.
© 1999–2012 Schneider Electric All Rights Reserved
80459-641-01E
10/2012
Mounting brackets
Barrier Removed
Removed
