Section 3
These industrial Ethernet switches can be snapped onto a standard DIN rail (EN50022) or
Overview
screwed directly to a flat panel. Refer to the mechanical drawings below to properly mount
your switch.
Note: Make sure to allow enough room to route your Ethernet copper or fiber optic cables.
SL- or SLX-#ES models in Lexan case:
Mounting
2

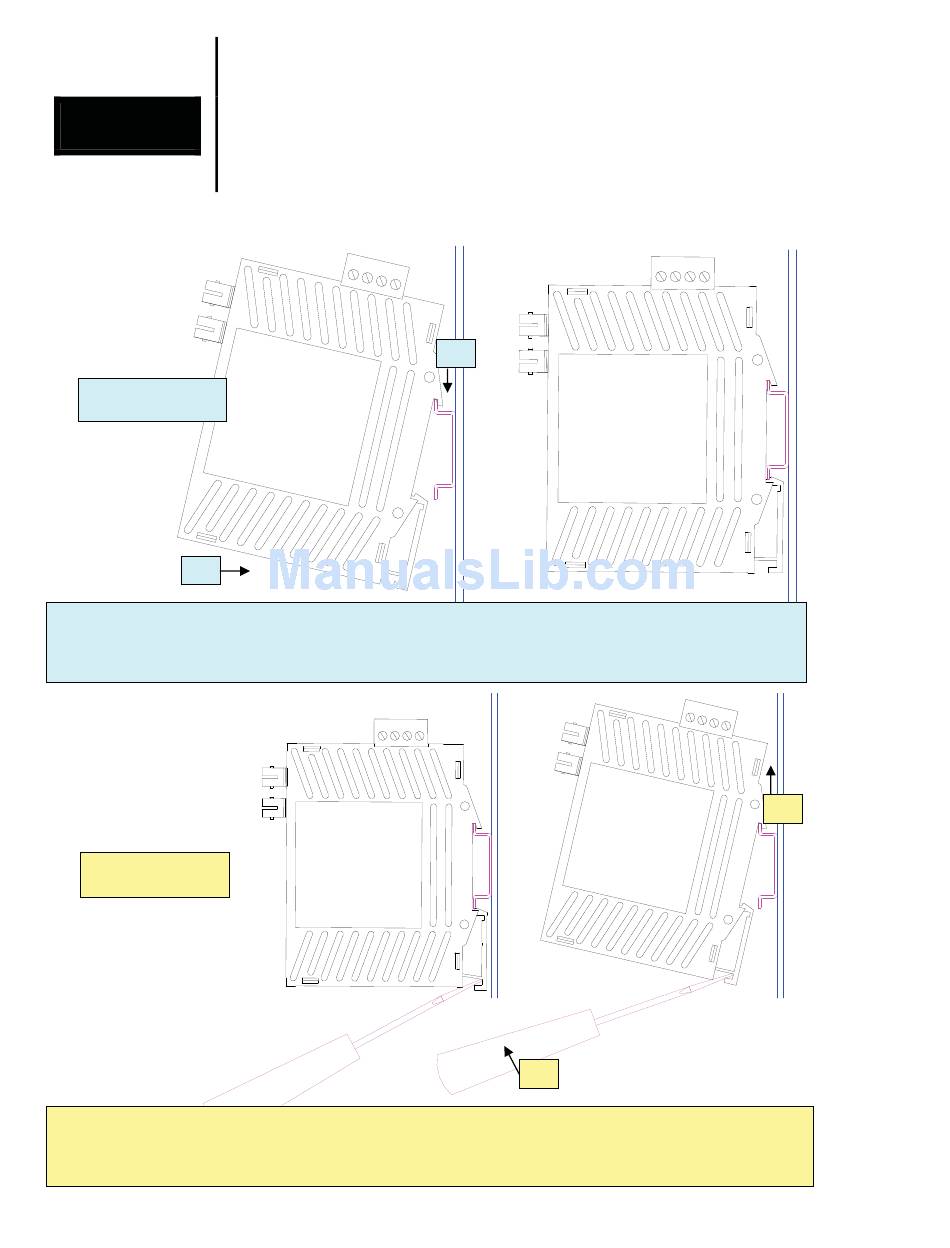

Recommended DIN rail mounting steps:

1. Hook the top back of the unit over the DIN rail.
2. Push the bottom of the unit towards the DIN rail until it snaps into place.
Removal
Recommended DIN rail removal steps:
A. Insert screwdriver into DIN clip and pry until the bottom of the unit releases from the din rail.
B. Unhook the top of the unit and remove it from the DIN rail.
Sixnet Slim Line Switch Installation Guide
Installation
1
A
B
Page 8 of 30
