F6 will skip to sensor 2 presets screen (FIGURE 6-12)

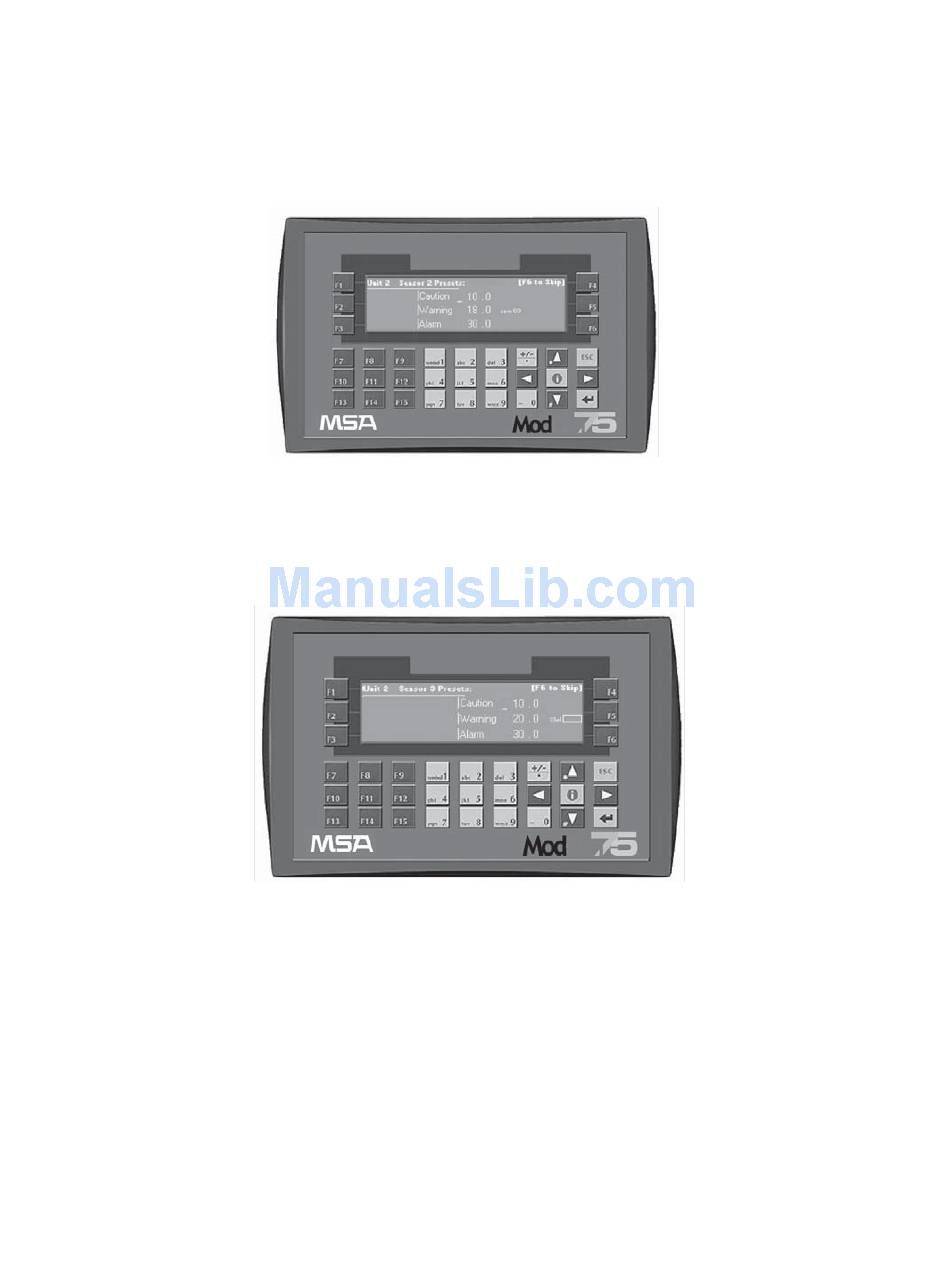

Figure 6-12. Sensor 2 Preset Screen
•
F6- Skips to next screen
•
ENTER- Changes presets (see NOTE above)
Figure 6-13. Sensor 3 Preset Screen
•
F6- Skips to next screen
•
ENTER- Changes presets
NOTE: The ModCon75 Controller displays to one decimal point.
With certain sensors (ClO 2 , CO 2 , etc.), alarm setpoints in the
Ultima X3 unit may be represented to two decimal points. In this
6-10
