ANT-20/ANT-20E
2.7

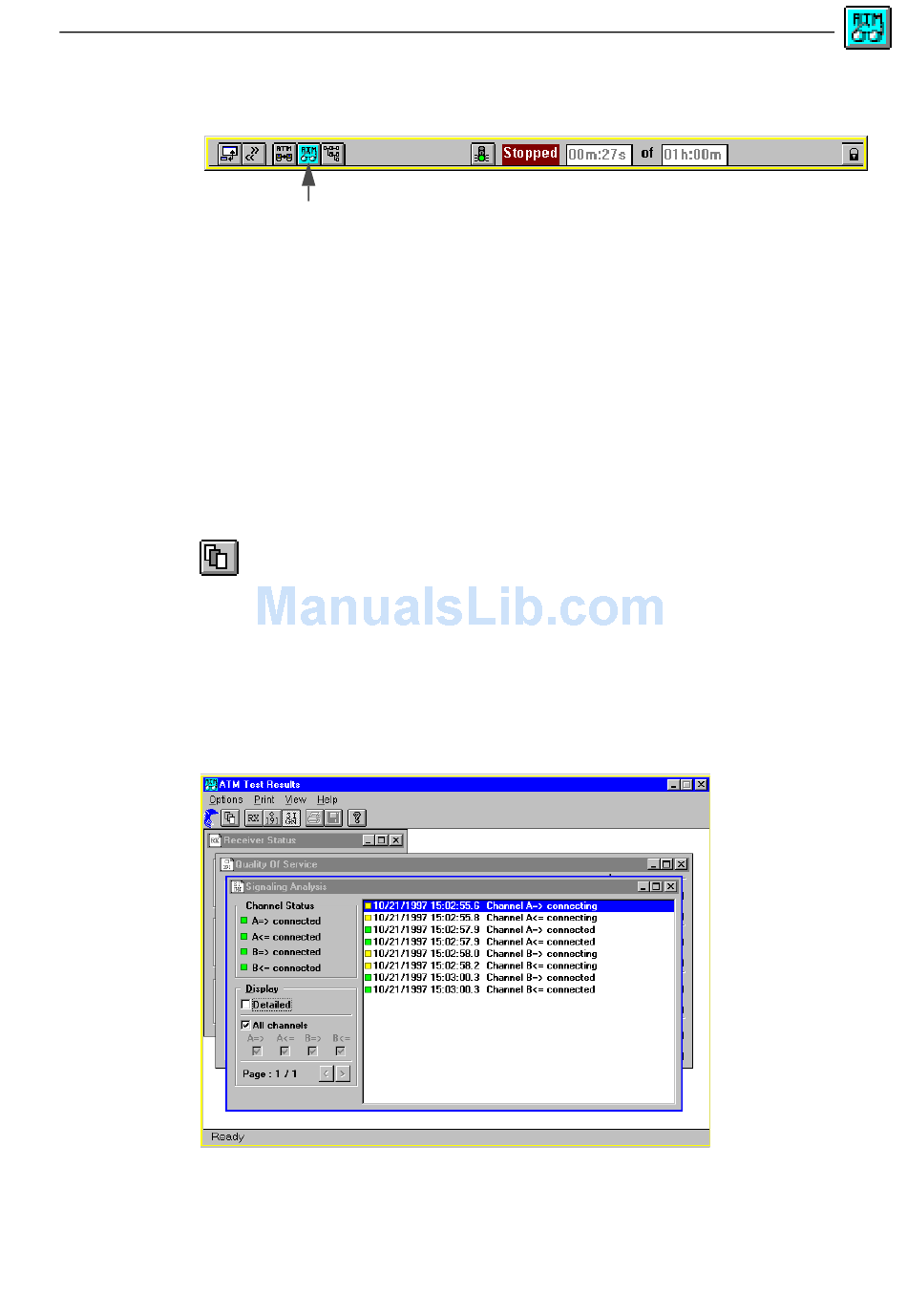

Displaying the Results: "ATM Test Results" VI

Fig. A-22
⇒ Click the icon button for the "ATM Test Results" VI in the minibar.
The "Test Results" window is displayed on top.
After the VI has booted up, the work area contains the following results windows:
• Receiver Status: This window indicates the receiver status
• Quality of Service: This window indicates the QoS performance parameters as per ITU-T
O.191. The results are displayed for up to four test channels: Cell Error Ratio, Cell Loss
Ratio, Cell Misinsertion Rate, Mean Cell Transfer Delay, etc.
• Signaling Analysis: This window indicates the results of signaling analysis.
2.7.1

Preparing to Record Results

Arranging the results windows for the application
Normally, the three results windows are displayed in a space-saving cascade arrangement.This
arrangement can be altered as required and restored at any time.
⇒ Click the above icon button of the toolbar.
– or –
⇒ Select the "View - Cascade" menu command.
The three results windows are displayed in the default arrangement.
Fig. A-23
Application Guide
Application manager
Results window
"Signaling Analysis"
Broadband Analyzer/Generator
A-15
