Broadband Analyzer/Generator
2.2

Test setup and description

Chapter 2 takes you step by step through the procedure for ATM layer QoS tests. The
procedure is based on a configuration with terminal emulation and signaling, to allow switched
virtual connections (SVCs) to be tested. The example selection of an end-to-end measurement
requires the use of a second instrument. The operating steps described apply to the left-hand
instrument in "Calling" mode.

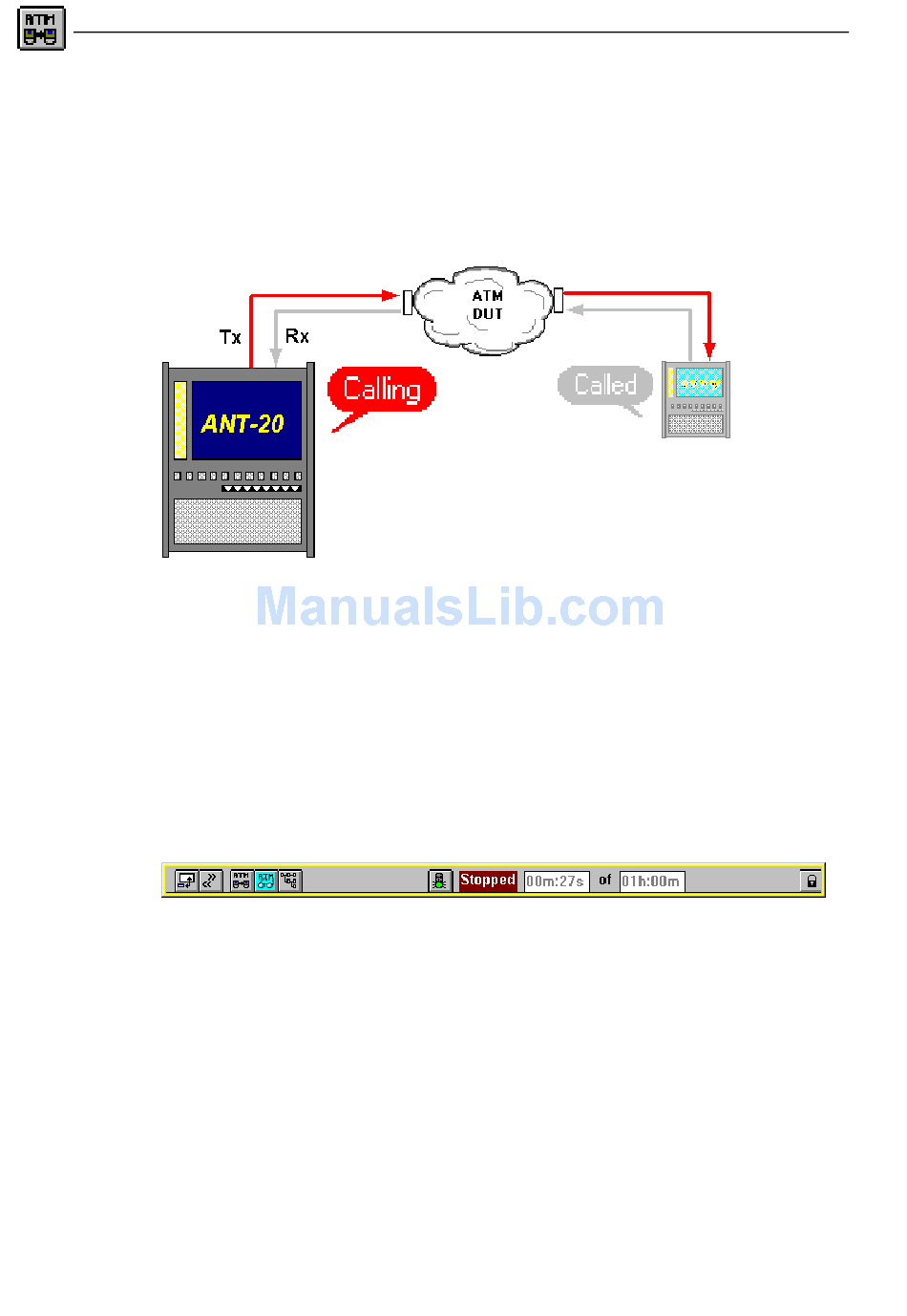

Fig. A-4
2.3

Application settings

VIs required
• ATM Test Control
• ATM Test Results
• Signal Structure
⇒ Add the VIs required to the list of VIs used in the Application Manager.
The Application Manager should include at least the following instruments (see Fig. A-5):
Fig. A-5
A-4
Test setup for switched point-to-point connection
"Application Manager" (Minibar) with ATM-Instruments
ANT-20/ANT-20E
