Wavetek ANT-20 Operating Manual page 11

ANT-20/ANT-20E

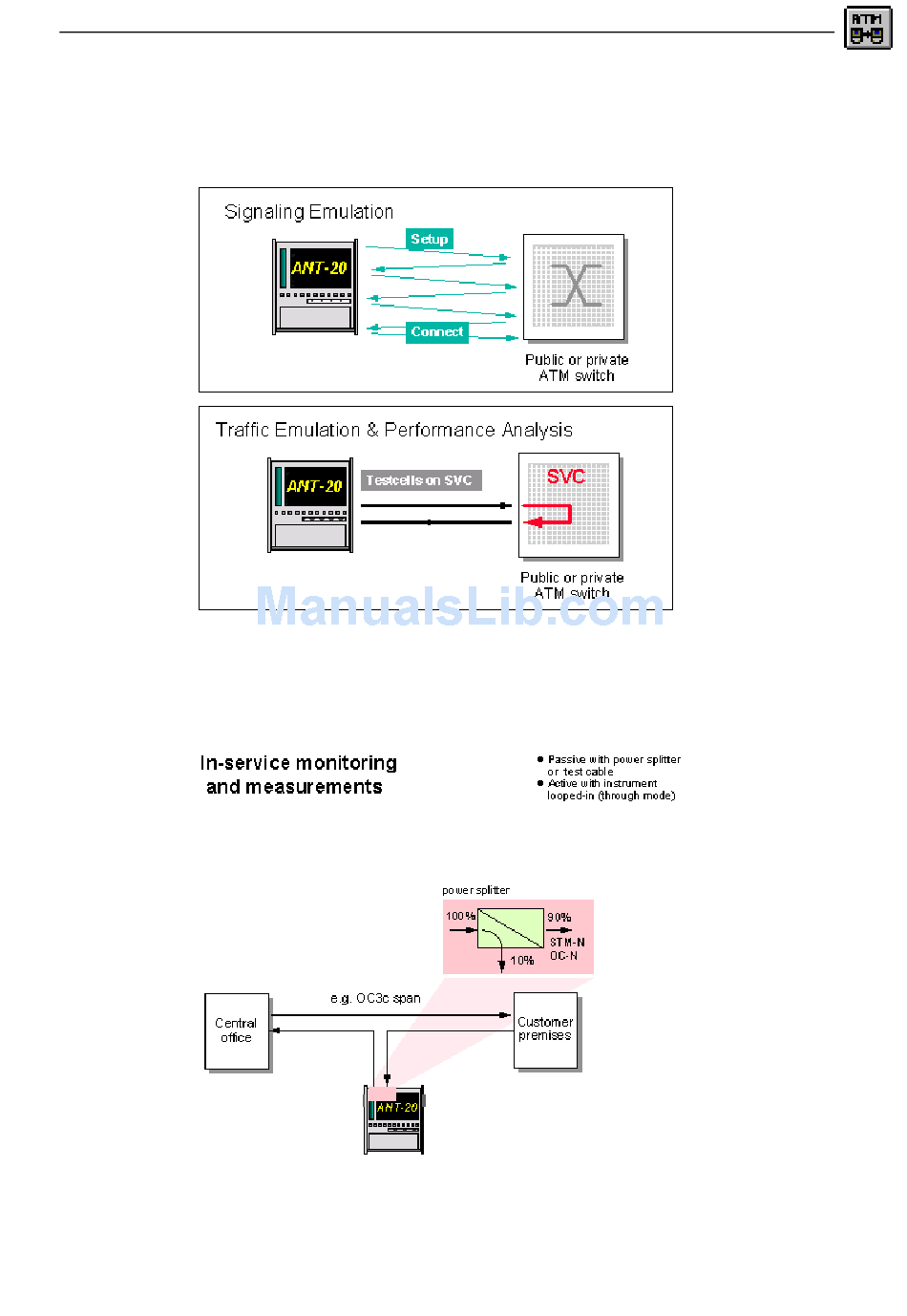

The diagram below illustrates the steps that the Broadband Analyzer/Generator performs
automatically, when a self-call was initiated:
1. Test circuit set up
2. Performance analysis over the test circuit
Fig. I-3
The receiver of the Broadband Analyzer/Generator can be used separately for troubleshooting
or analysis. The ANT-20/ANT-20E can be used with a "T" connector or optical power splitter for
this monitor type operating mode.
Fig. I-4
Introduction
Automatic test sequence for switched virtual circuits
ANT-20/ANT-20E monitor function
Broadband Analyzer/Generator
I-3
