ANT-20/ANT-20E
1. Click the toolbar icon or the "Edit - Signal Structure..." menu command
The "Edit Signal Structure" dialog window of the "Signal Structure" VI opens. The signal
structure is set column by column using the corresponding buttons.
2. 4. 5.

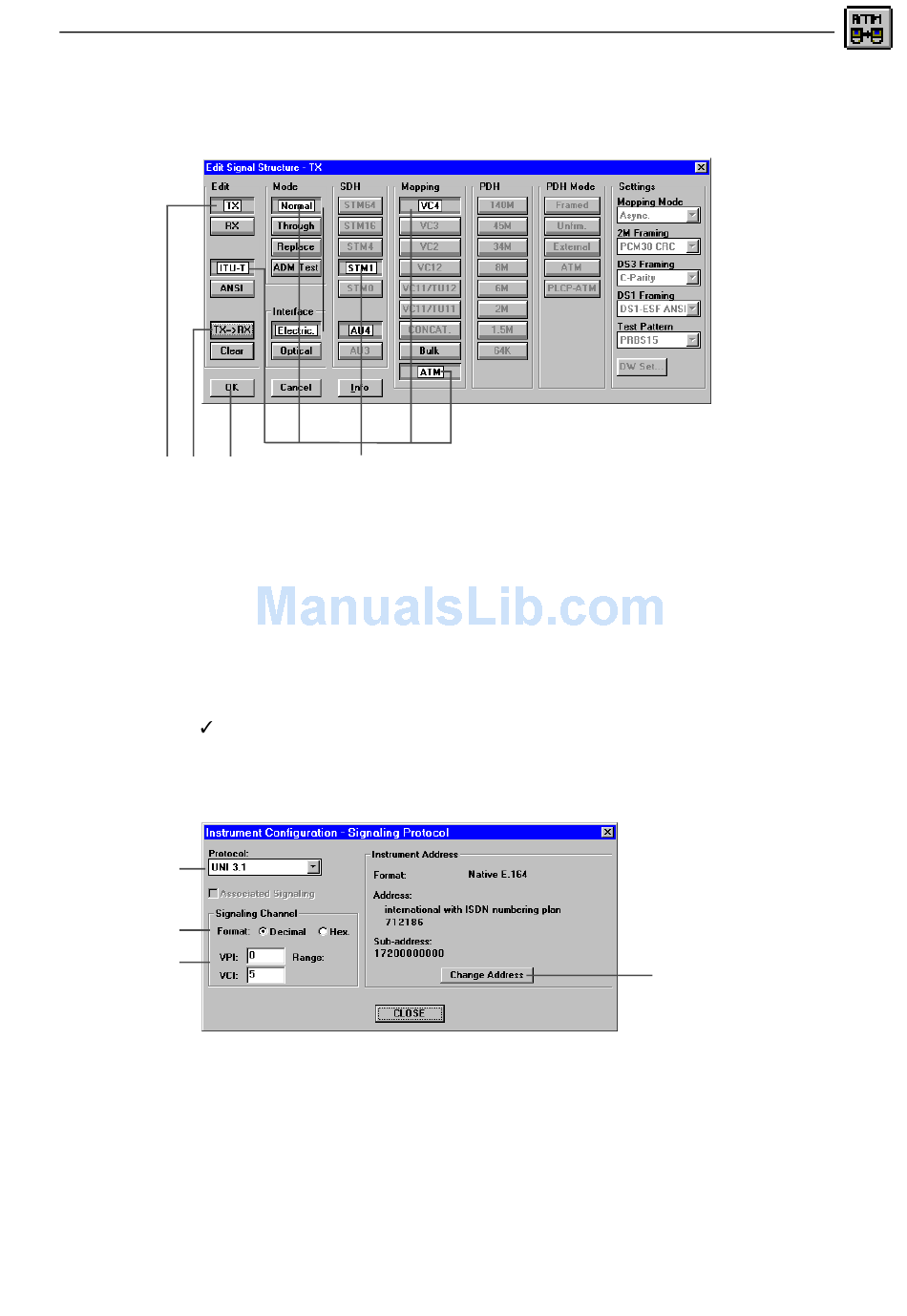

Fig. A-10
2. Click the "TX" button to configure the transmitting side.
3. Set the signal structure, e.g. "ITU-T", "Normal", "STM-1", "AU4", "VC4" and "ATM" by clicking
the appropriate buttons.
4. Click the "TX=>RX" button.
This sets the receiving side to the same settings as the transmitting side.
5. Confirm the input by clicking "OK". this returns you to the "Instrument Configuration" dialog.
E) To configure the signaling
The "Instrument Configuration" dialog is open.
1. Click the "SIG" button.
The "Instrument Configuration - Signaling Protocol" dialog window opens.
2.
3.
4.
Fig. A-11
2. Select the required item, e.g. "Q.2931" in the "Protocol" list box.
3. Select the input format, e.g. "Decimal" using the option buttons.
4. Edit the VPI and VCI values in the entry boxes.
The available range is shown under "Range".
Application Guide
3.
The "Signal Structure" window and "Edit Signal Structure - TX" dialog
The "Instrument Configuration - Signaling Protocol" sub dialog
Broadband Analyzer/Generator
5.
A-7
