Wavetek ANT-20 Operating Manual page 26

Broadband Analyzer/Generator
Menu bar and toolbar
Fig. O-9
Menu bar
The menu bar contains a range of pulldown menus for selecting the following commands or
groups of commands:
Options
Print
View
Help
Toolbar
The toolbar buttons provide direct access to the more important functions of the VI:
Functions for arranging the results windows, for printing out and exporting the results. Other
functions for customizing the screen display are found in the menu bar.
Meanings of icons, from left to right (equivalent menu command shown in brackets):
Icon
Table O-2
O-8

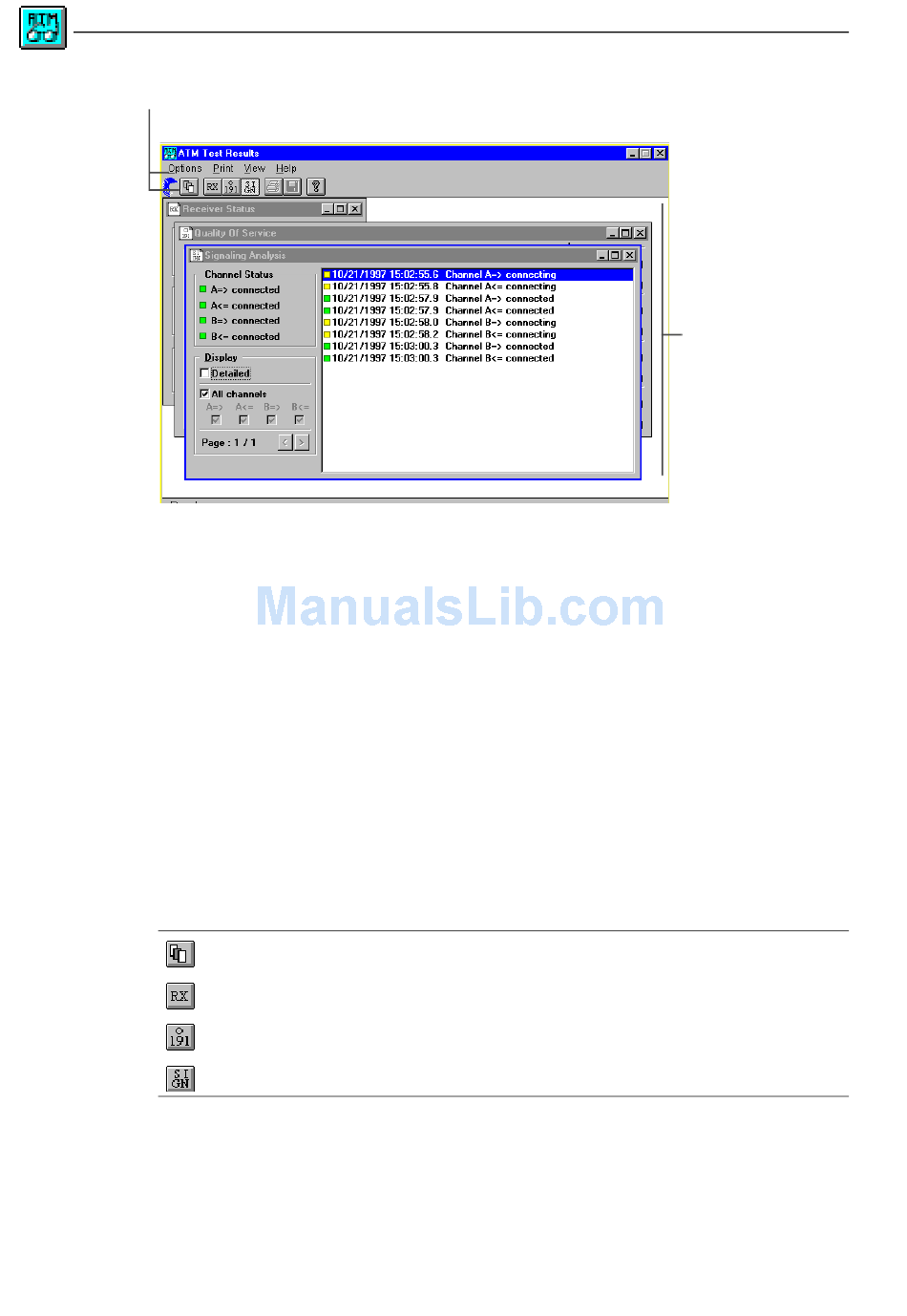

"ATM Test Results" main window
Select optional settings for the record file for signaling measurements.
Print out or export the results.
Customize the application window.
Use on-line help.
Meaning
Cascade the results windows (View - Cascade)
Display receiver status (View - Receiver Status)
Display Quality of Service parameters (View - Quality Of Service)
Display signaling events (View - Signaling Analysis)
Meaning of icons
ANT-20/ANT-20E
Result window/
workspace
Operation
