ANT-20/ANT-20E
Icon
Table O-2
2.3

Results window

After the measurement has been started, the measurement data are written continuously to the
display fields of the individual windows.
After the VI is loaded, the workspace contains the following result windows in their default
configuration:
"Receiver Status"

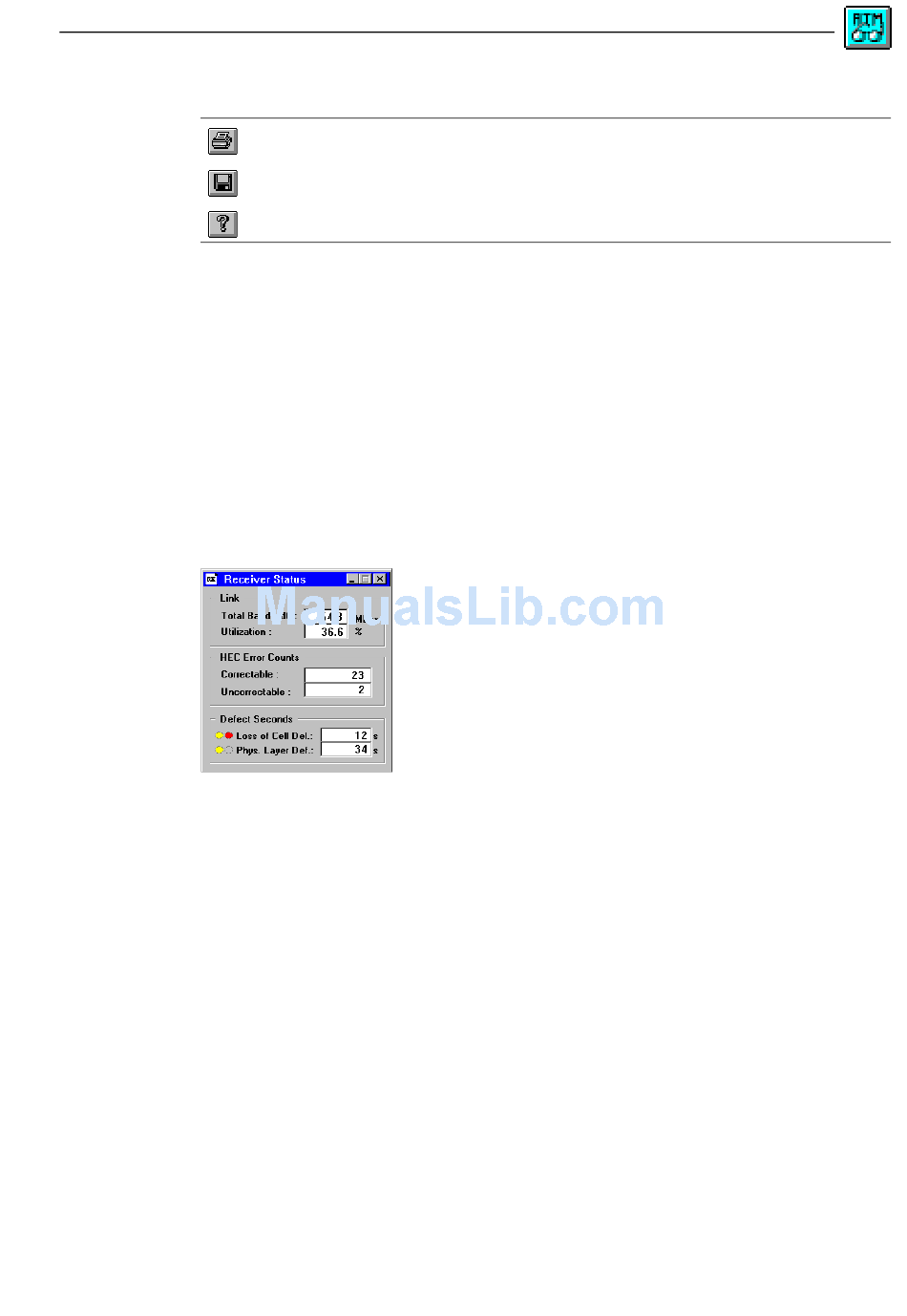

The "Receiver Status" results window gives a quick overview of the status of the receiver. This
window is always displayed in the workspace, regardless of the current type of test.
Fig. O-10
"Quality Of Service"
The "Quality Of Service" results window (Fig. 11, Page 2-10) shows the ITU-T O.191 QoS
performance parameters. The index cards of the window show detailed, channel-specific
results. The right-hand section of the window is always visible and shows the alarm states for
all channels.
The VI displays the QoS performance parameters of up to four permanent virtual circuits (PVC)
or switched virtual circuits (SVC) simultaneously.
Operation
Meaning
Print results (Print - Print ...)
Export results (Print - Export ...)
Open on-line help (Help - Contents)
Meaning of icons (continue)
"Receiver Status" results window
Broadband Analyzer/Generator
O-9
