Wavetek ANT-20 Operating Manual page 23

ANT-20/ANT-20E

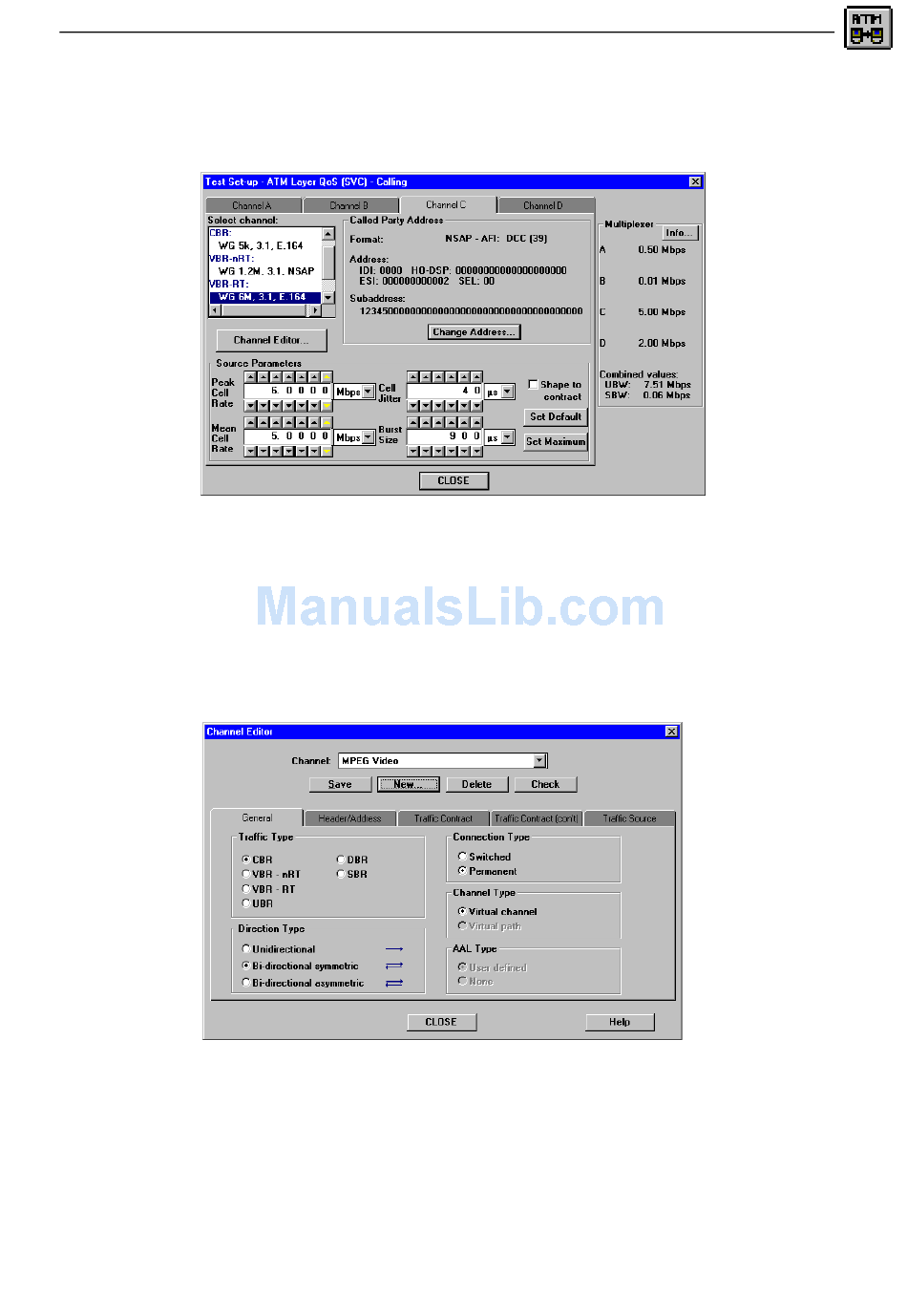

The extended "Test Setup" dialog
The "Test Setup <...>" dialog is used to configure the test type and to match it to your
measurement task (see Sec. 5.9).
Fig. O-5
The "Channel Editor" dialog
The Channel Editor is used to define virtual channels and save them in a database;
Sec. 6, Page O-38. Push buttons and a list box in the dialog window header are used for
defining and handling the channels. When first used, the list contains a range of default virtual
channels for the usual types of traffic (CBR, VBR, etc.). These channels can be saved under a
new name and edited individually.
Fig. O-6
Operation
The extended "Test Setup <...>" dialog
The "Channel Editor" dialog
Broadband Analyzer/Generator
O-5
