Removing a test channel, if necessary
1. Click on the index card of the channel that you want to remove, e.g. "Channel B".
The index card showing the current channel and traffic type will move to the front.
2. Click on "<disabled>" in the "Select channel" list.
"Channel B" will be removed from the current test traffic.
1.
2.

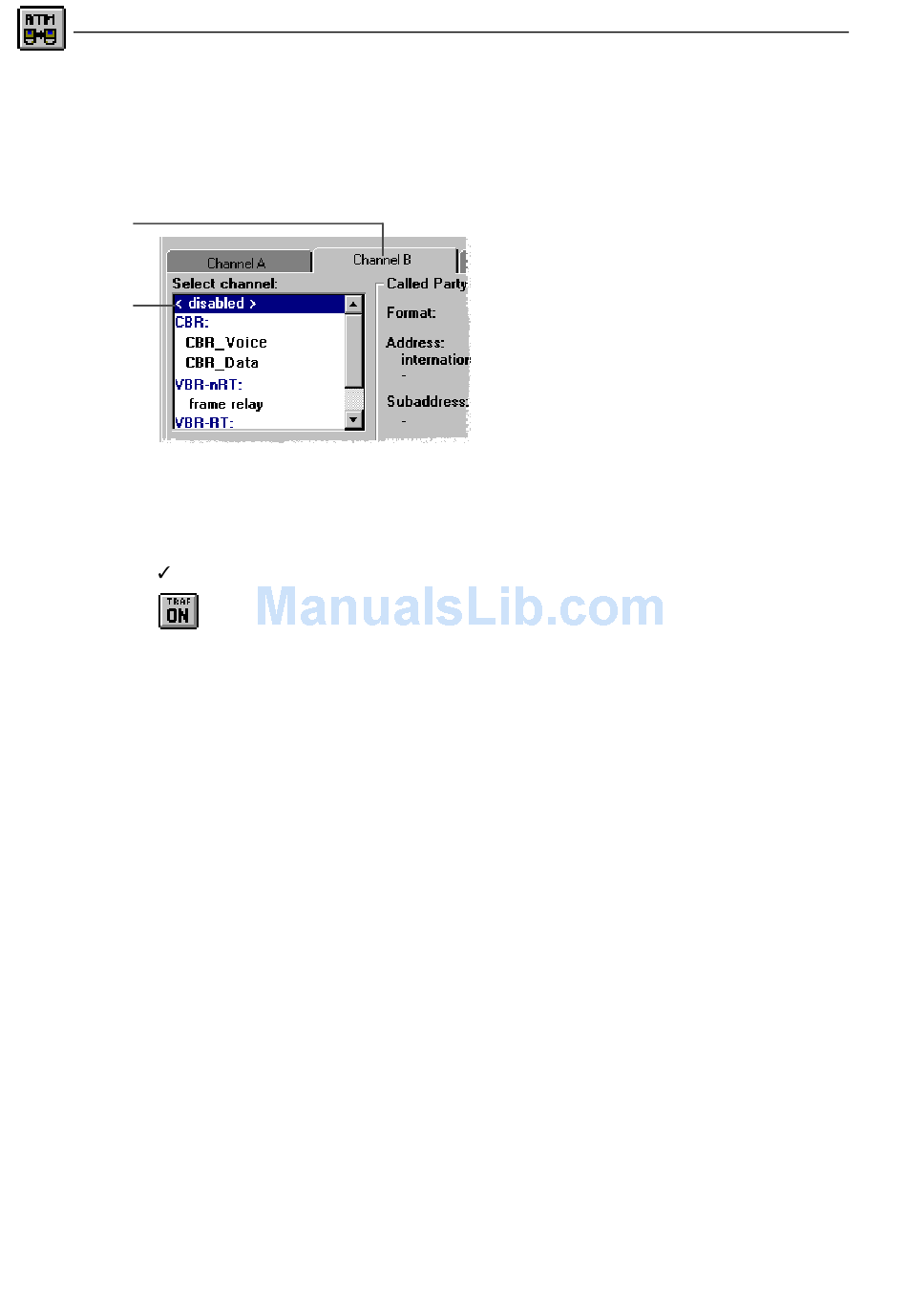

Fig. A-19
2.4 Enabling and Disabling Test Traffic: "ATM Test Control" VI
The "ATM Test Control" main window is open.
To enable the test cell stream
⇒ Click the above icon in the "Toolbar".
– or –
⇒ Select the "Test - Traffic Enable" menu command.
Test traffic will be enabled.
To disable the test cell stream
⇒ Click the above icon in the "Toolbar" again.
– or –
⇒ Select the "Test - Traffic Enable" menu command again.
Test traffic will be disabled.
Note:
A-12
Removing test channel
Test traffic:
– For SVC: Only after the connection is set up
– For PVC: Immediately after clicking the "TRAF ON" button.
