ANT-20/ANT-20E
a
b
c

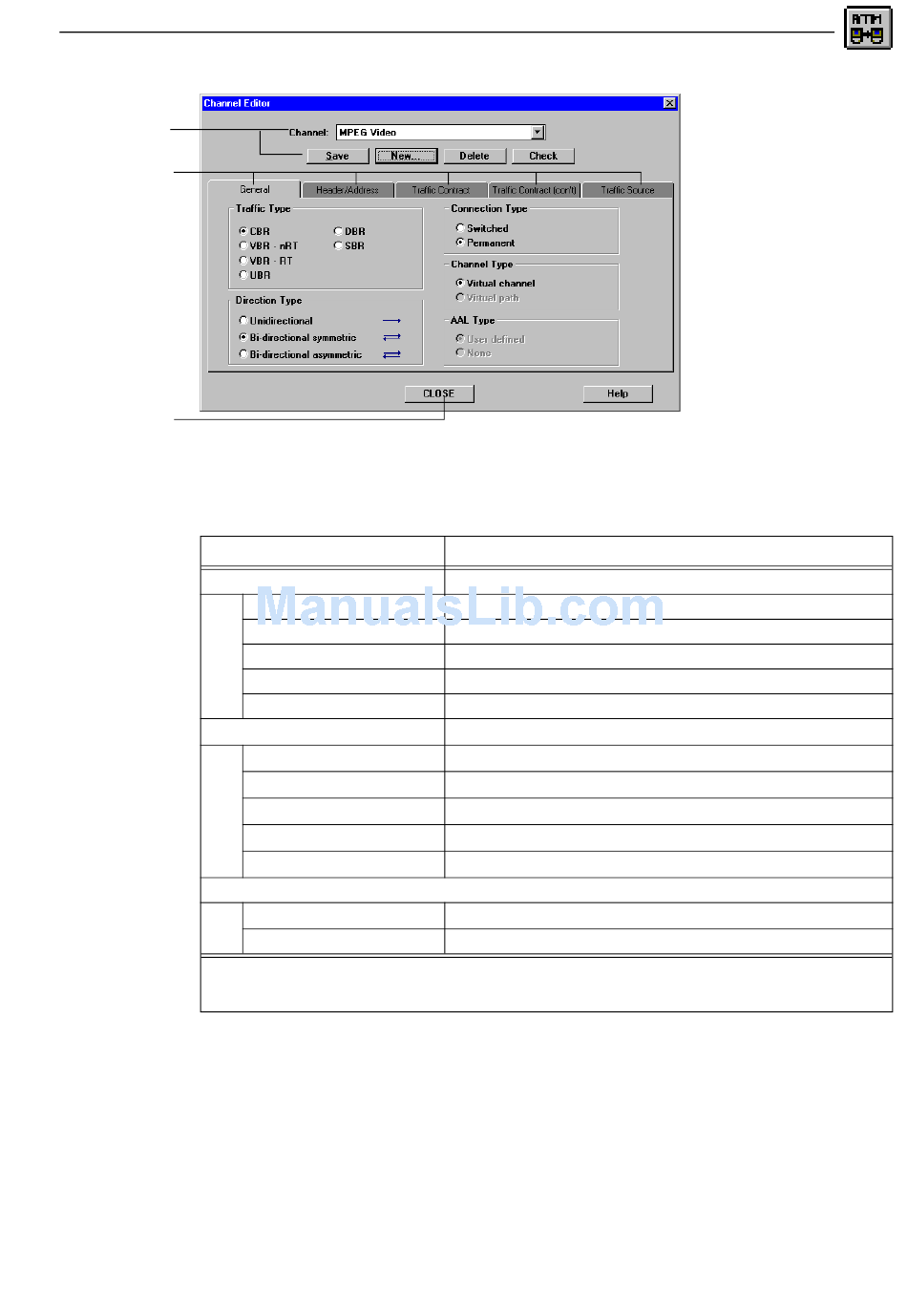

Fig. O-26
The dialog contains the following sections:
Section
Header (a)
Index cards (b)
Buttons (c)
1 Arranged in alphabetical order
2 Not available for write-protected virtual channels with names beginning with "W&G..."
3 A check is made to see if the channel can be assigned to a test channel in the current instrument configuration.
Table O-21
Operation
The "Channel Editor" dialog
Channel
2
Save
New
Delete
3
Check
General
Header/Address
Traffic Contract
Traffic Contract (con't)
Traffic Source
Help
CLOSE
Sections of the "Channel Editor" dialog
Meaning
1
List box listing all saved virtual channels.
Saves the virtual channel in the database under the current name
Creates a new virtual channel.
Deletes the marked virtual channel from the database.
Checks the channel for consistency with the current configuration.
For entering general channel parameters
For entering header information or addresses
For entering main traffic contract parameters
For entering further traffic contract parameters
For entering source parameters
Push button: Calls up on-line Help.
Push button: Closes the dialog.
Broadband Analyzer/Generator
O-39
