ANT-20/ANT-20E
Toolbar
The toolbar buttons provide direct access to the more important functions of the VI.
Meanings of icons, from left to right (equivalent menu command shown in brackets):
Icon
Table O-1

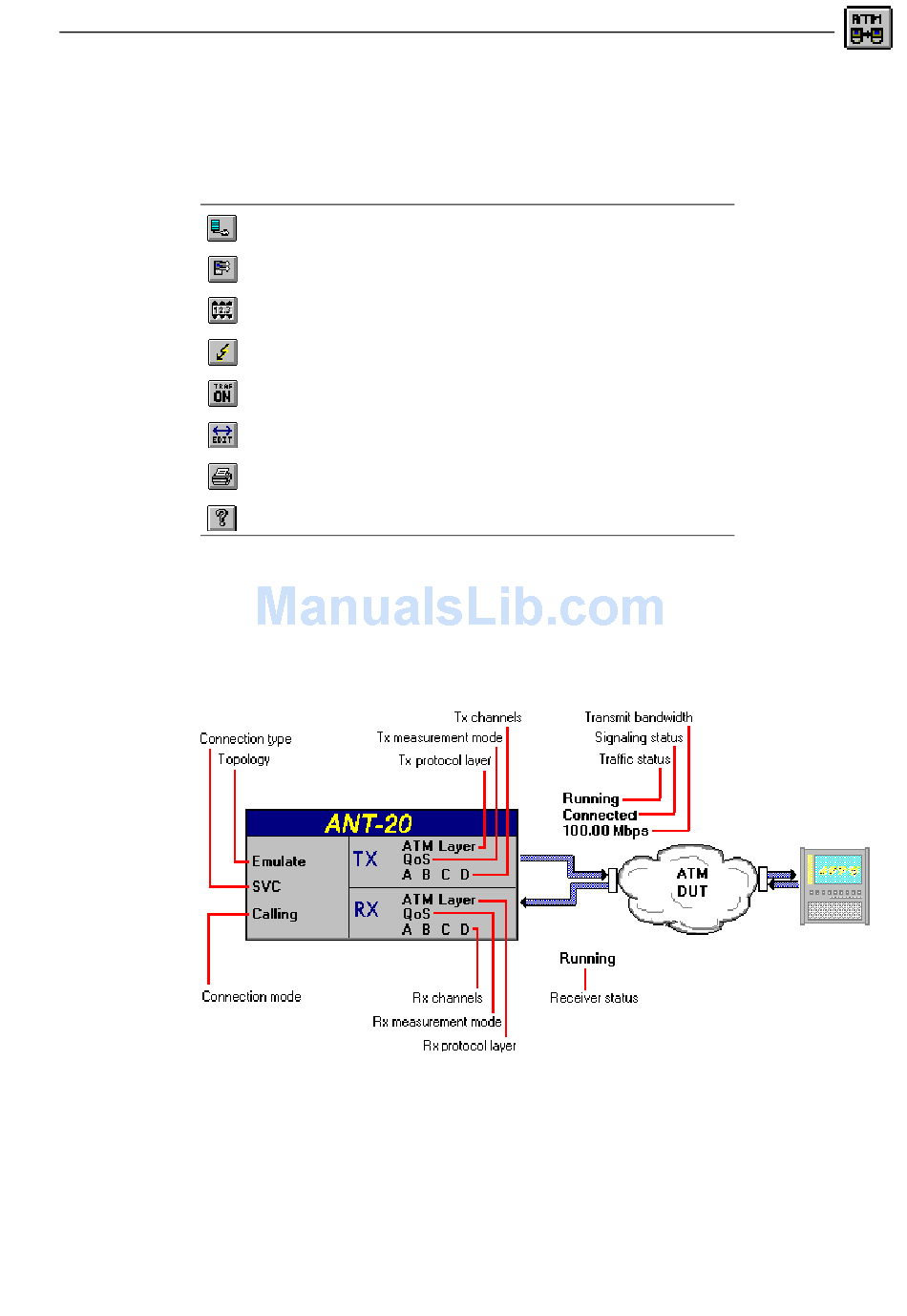

Configuration diagram
The main window workspace always displays a pictogram of the actual measurement
configuration. If the configuration requires a second instrument, this will also be shown. Further
information describes the configuration and the instrument status in detail:
Fig. O-2
Operation
Meaning
Configure instrument (Instrument - Configuration ...)
Select test type, set test parameters (Test - Setup ...)
Alter source parameters "on-line"(Test - Online Control ...)
Insert errors (Test - Error Insertion ...)
Enable test traffic (Test - Traffic Enable)
Define and handle virtual channels (Tools - Channel Editor ...)
Print list of virtual channels (Tools - Print Channel List ...)
Open on-line help (Help - Contents)
Meanings of icons
Display of "Port configuration" (Main window "ATM Test Control" VI),
Example: "Emulate" and switched virtual circuit (SVC)
Broadband Analyzer/Generator
O-3
