Broadband Analyzer/Generator
b
c

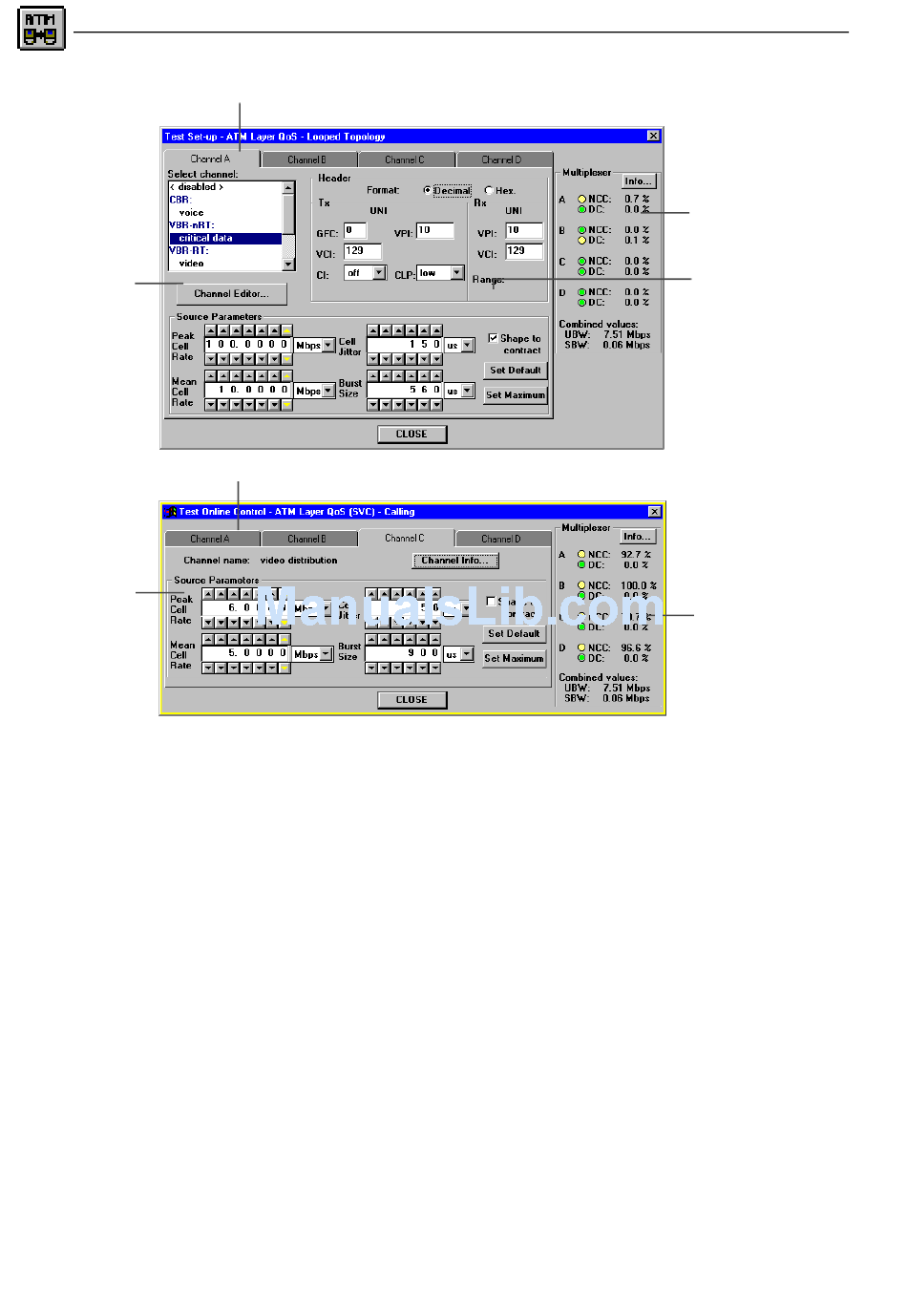

Fig. TB-4
To make it easier to see the complex procedures during multiplex formation, an overview of the
status of each channel is given in the "Multiplexer" field.
In the "Test Setup" dialog, this information (d) has the character of a traffic prediction, as the
generator is not yet active. THis makes it possible to set the generator precisely, before starting
the measurement.
In the "Online Control" dialog, in contrast, this information (f) reflects the actual status of the
channel. The following information is provided:
TB-6
a
a
"Test Setup" and "Test Online Control" dialog windows
with index cards and "Multiplexer" section
ANT-20/ANT-20E
d
e
f
Technical Background
