"ATM Channel Explorer" window layout and commands

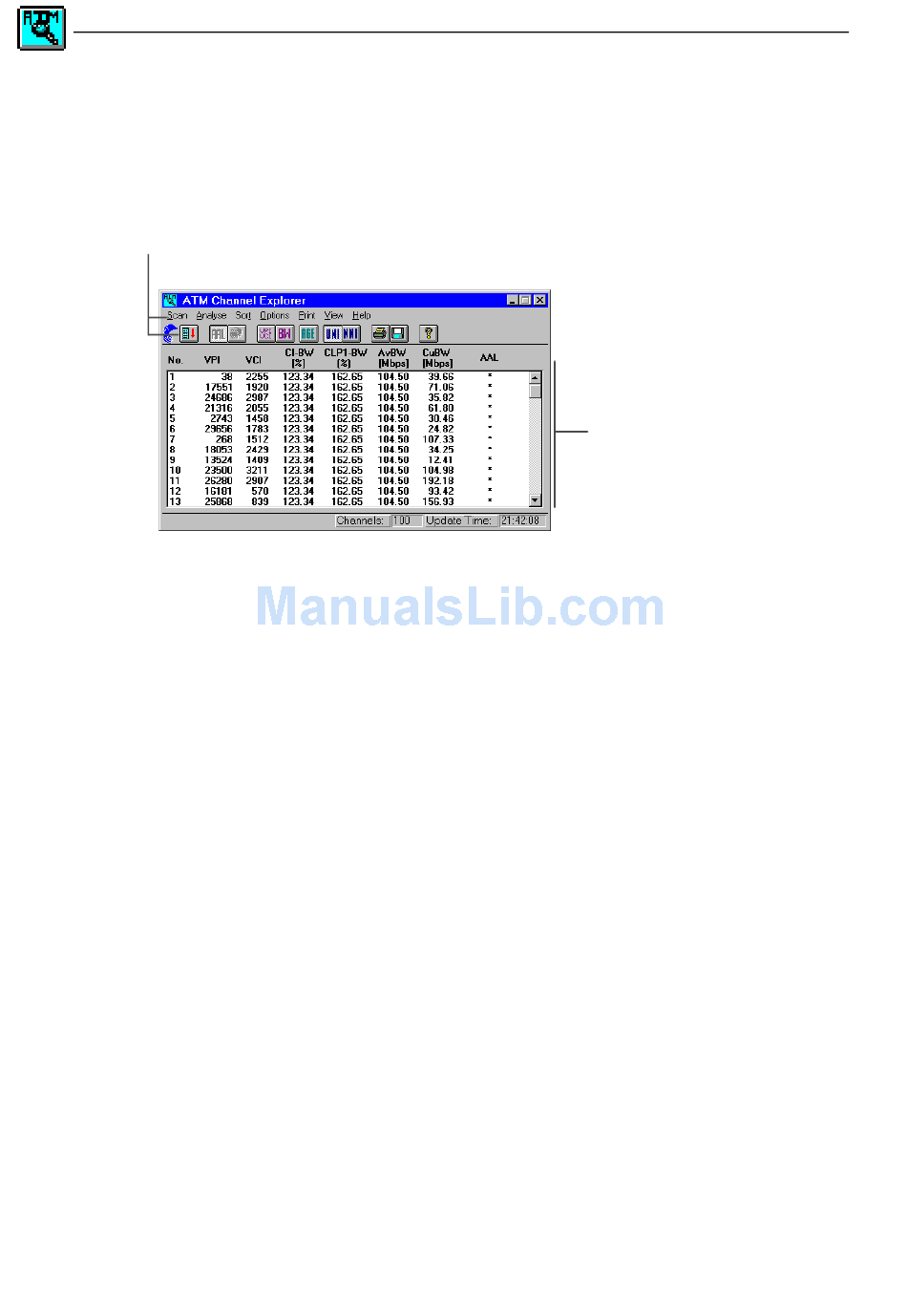

The "ATM Channel Explorer" main window with the result list appears after the VI is loaded.
The commands for configuring and starting the Scan functions are found in the menu bar. In
addition, there are commands to perform analyses, to sort the output and to output results. The
main commands are also available as icon buttons in the toolbar.
Menu bar and toolbar
Fig. O-13
The "ATM Channel Explorer" main window essentially consists of
• the menu bar and pull-down menus,
• the toolbar and
• the workspace with results window.
Menu bar
The menu bar contains a few simple pulldown menus for selecting the following commands or
groups of commands:
Scan
Analyse
Sort
Options
Print
View
Help
O-12
"ATM Channel Explorer" main window with results list
Select Scan type, start and stop Scan.
Select Analysis type and perform analysis.
Select sort criterion.
Select ATM interface.
Print out or export the Scan results.
Customise the application window.
Use on-line help.
ANT-20/ANT-20E

Results window

e.g. Scan "Activity"
Operation
