The "Address Input" Dialog - Wavetek ANT-20 Operating Manual

Broadband Analyzer/Generator
The buttons and check boxes have the following meanings:
Button/Check Box
Protocol (a)
Associated Signaling
Signaling Channel (b)
Instrument Address (c)
Table O-8
4.5.2

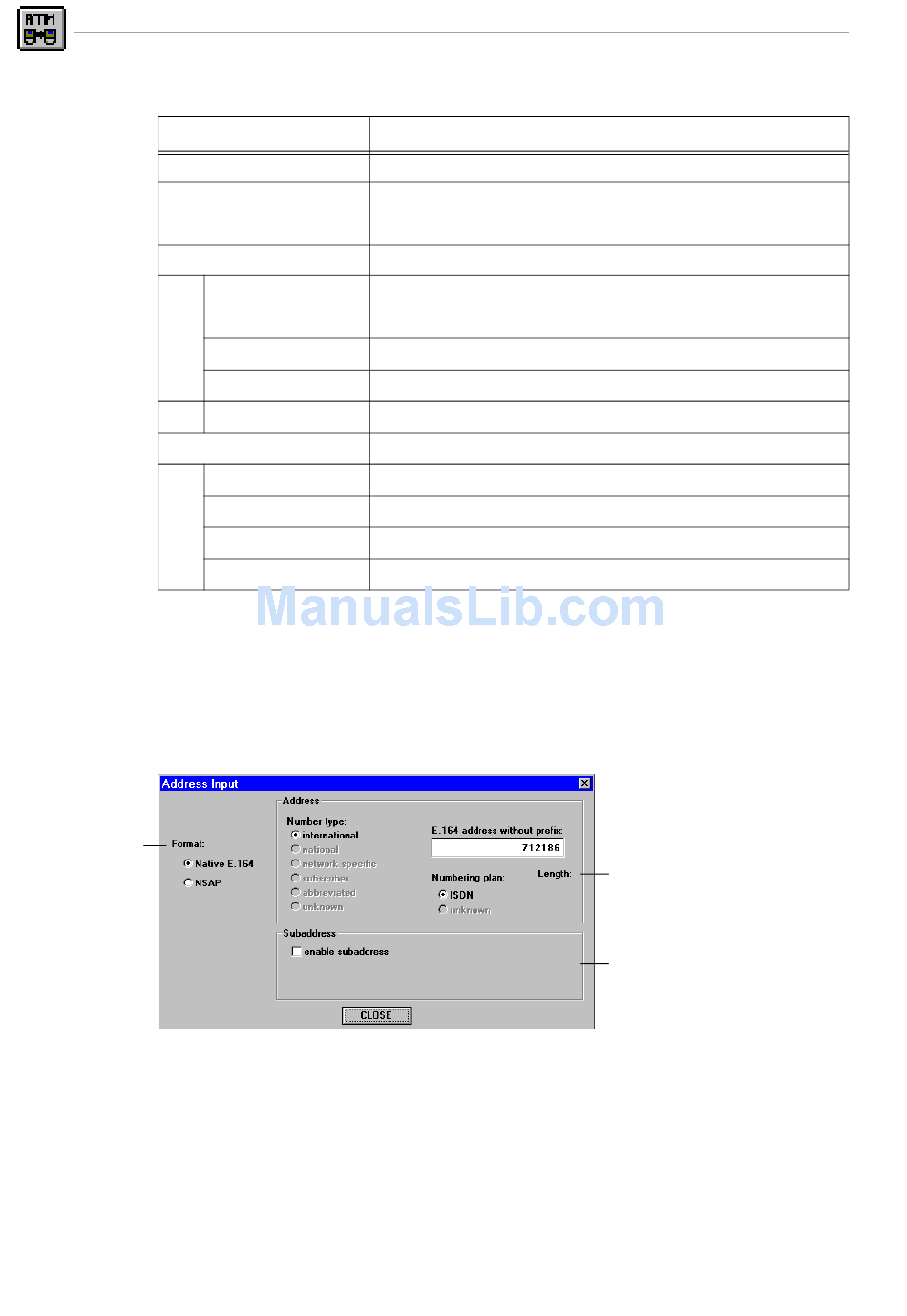

The "Address Input" dialog

Accessed using the "Change Address" button. The dialog is used to set the instrument address
(own call address).
a
Fig. O-22
O-22
Meaning
Combo box with protocol types: UNI 3.0, UNI 3.1, Q.2931
Check box for selecting "Associated Signaling". This requires that the
Q.2931 protocol is selected. With "Associated Signaling", the user
channels are in the same virtual path (VP) as the signaling channel.
Header value for the signaling channel.
Decimal, Hex. Input format
Decimal" option: Decimal input
"Hex" option: Hexadecimal input
VPI Virtual path identifier
VCI Virtual channel identifier
Range Display field for VPI/VCI range of values
Address display and button for changing the instrument address
Format Format display (e.g. Native E.164)
Address Address display (various formats)
Sub-address Sub-address display (if required)
Change Address Enter own instrument address
Meaning of edit and check boxes ("Signaling Protocol" dialog)
The "Address Input" sub dialog
