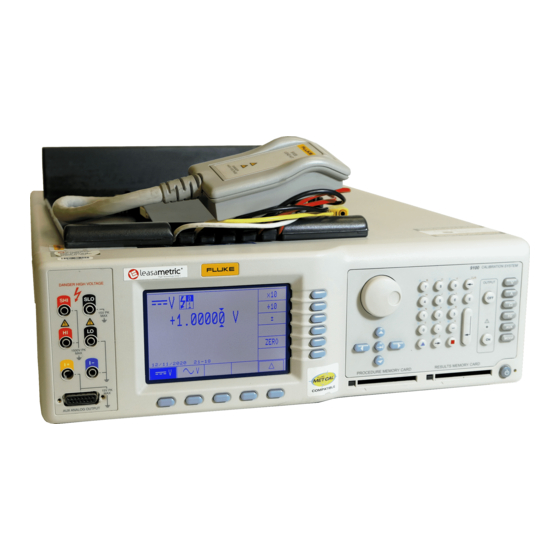

Wavetek 9100 Operator's Manual

Universal calibration system
Hide thumbs

Advertisement

Quick Links

Download this manual
O
'
G
PERATOR
S
UIDE
Model 9100
Universal Calibration System
www.valuetronics.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 9100 and is the answer not in the manual?

Questions and answers

Related Manuals for Wavetek 9100

Summary of Contents for Wavetek 9100

  • Page 1 PERATOR UIDE Model 9100 Universal Calibration System www.valuetronics.com...
  • Page 2 User's Handbook) 850299 Issue 3 (Aug 1995) For any assistance contact your nearest Wavetek Sales and Service Center. Addresses can be found at the back of the User's Handbook. Due to our policy of continuously updating our products, this handbook may contain minor differences in specification, components and circuit design to the instrument actually supplied.
  • Page 3 DANGER HIGH VOLTAGE THIS INSTRUMENT IS CAPABLE OF DELIVERING A LETHAL ELECTRIC SHOCK ! Model 9100: -, Hi, Lo, sHi and sLo Terminals; Model 9105: H (Red), sH (Red), sL (Black), L - (Black) and +20 (Yellow) Leads; carry the Full Output Voltage...
  • Page 4 % Duty Section 12 Auxiliary Functions Section 13 Capacitance Section 14 Temperature — Thermocouple Section 15 Temperature — RTD Section 16 Logic Pulses Section 17 Logic Levels Section 18 Error Messages Model 9100 — Operator's Guide - Contents List www.valuetronics.com...
  • Page 5 User's H'b'k About the Operator's Guide Page Ref Section 3 of the User's Handbook for the Model 9100 should be used to gain practice at manipulating front-panel controls. For an introduction to 'Procedure Mode', refer to Section 5 of the User's Handbook . For the use of other modes refer to Section 3 of the User's Handbook .
  • Page 6 www.valuetronics.com...
  • Page 7 User's H'b'k Interconnections Page Ref Section 4, sub-section 4.2 of the User's Handbook gives details of the Model 9105 Leadset and Workmat, used for connecting the 9100 to the UUT. This Section repeats the User's Handbook information appropriate operational interconnections.
  • Page 8 Sections . Adaptor Parking Holes Thermocouple Safety Bananas Extension Terminated with Lead Probe Adaptors. Thermo Couple Work Mat I+ 20A I+mA Yell Fig. 2.1 Layout of 9105 Work Mat Model 9100 — Interconnections www.valuetronics.com...
  • Page 9 User's H'b'k DC Voltage Calibration Page Ref Interconnections Adaptor Parking Holes Thermo Couple Work Mat I+ 20A I+mA Yell Fig. 3.1 Connections for DC Voltage Calibration Model 9100 — Operator's Guide: DC Voltage Function www.valuetronics.com...
  • Page 10 (Section 3) . 3.2.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as in Fig. 3.1 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select DC Voltage function.
  • Page 11 (Section 3) . 3.3.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as in Fig. 3.1 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select DC Voltage function.
  • Page 12 www.valuetronics.com...
  • Page 13 User's H'b'k AC Voltage Calibration Page Ref Interconnections Adaptor Parking Holes Thermo Couple Work Mat I+ 20A I+mA Yell Fig. 4.1 Connections for AC Voltage Calibration Model 9100 — Operator's Guide: AC Voltage Function www.valuetronics.com...
  • Page 14 (Section 3) . 4.2.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as shown in Fig. 4.1 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select AC Voltage function.
  • Page 15 (Section 3) . 4.3.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as shown in Fig. 4.1 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select AC Voltage function.
  • Page 16 www.valuetronics.com...
  • Page 17 DC Current Function are illustrated in Figs. 5.1, 5.2 and 5.3 . Adaptor Parking Holes Thermo Couple Work Mat I+ 20A I+mA Yell Fig. 5.1 Connections for DCI 'NORMAL OUTPUT' UUT Calibration Model 9100 — Operator's Guide: DC Current Function www.valuetronics.com...
  • Page 18 User's H'b'k DC Current Calibration (Contd.) Page Ref Interconnections (Contd.) Adaptor Parking Holes Thermo Couple Work Mat I+ 20A I+mA Yell Fig. 5.2 Connections for DCI 'AUX OUTPUT' UUT Calibration Model 9100 — Operator's Guide: DC Current Function www.valuetronics.com...
  • Page 19 10-Turn coil coil Common 50-Turn coil socket 10-Turn 50-Turn coil coil Fig. 5.3 Connections for DC High Current UUT Calibration Using the 10-Turn or 50-Turn Current Coils Model 9100 — Operator's Guide: DC Current Function www.valuetronics.com...
  • Page 20 9100 to calibrate the clamp meter. To obtain consistent results, in the absence of...
  • Page 21 User's H'b'k Page Ref Vertical Coil Meter Clamp Non-Magnetic Surface Fig. 5.4 Position of Clamp Clamp Meter Plane of Coil Top of Coil Fig. 5.5 Position of Coil Model 9100 — Operator's Guide: DC Current Function www.valuetronics.com...
  • Page 22 (Section 3) . 5.2.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as in Fig. 5.1, 5.2 or 5.3/4/5 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select DC Current function.
  • Page 23 (Section 3) . 5.3.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as in Fig. 5.1, 5.2 or 5.3/4/5 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select DC Current function.
  • Page 24 www.valuetronics.com...
  • Page 25 AC Current Function are illustrated in Figs. 6.1, 6.2 and 6.3 . Adaptor Parking Holes Thermo Couple Work Mat I+ 20A I+mA Yell Fig. 6.1 Connections for ACI 'NORMAL OUTPUT' UUT Calibration Model 9100 — Operator's Guide: AC Current Function www.valuetronics.com...
  • Page 26 User's H'b'k AC Current Calibration (Contd.) Page Ref Interconnections (Contd.) Adaptor Parking Holes Thermo Couple Work Mat I+ 20A I+mA Yell Fig. 6.2 Connections for ACI 'AUX OUTPUT' UUT Calibration Model 9100 — Operator's Guide: AC Current Function www.valuetronics.com...
  • Page 27 10-Turn coil coil Common 50-Turn coil socket 10-Turn 50-Turn coil coil Fig. 6.3 Connections for AC High Current UUT Calibration Using the 10-Turn or 50-Turn Current Coils Model 9100 — Operator's Guide: AC Current Function www.valuetronics.com...
  • Page 28 9100 to calibrate the clamp meter. To obtain consistent results, in the absence of...
  • Page 29 User's H'b'k Page Ref Vertical Coil Meter Clamp Non-Magnetic Surface Fig. 6.4 Position of Clamp Clamp Meter Plane of Coil Top of Coil Fig. 6.5 Position of Coil Model 9100 — Operator's Guide: AC Current Function www.valuetronics.com...
  • Page 30 (Section 3) . 6.2.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as shown in Fig. 6.1, 6.2 or 6.3/4/5 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select AC Current function.
  • Page 31 (Section 3) . 6.3.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as shown in Fig. 6.1, 6.2 or 6.3/4/5 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select AC Current function.
  • Page 32 www.valuetronics.com...
  • Page 33 Fig. 7.1 . The use of either 4-wire remote sensing at the UUT terminals, or 2-wire local sensing at the 9100 terminals, is served by the same connections from the 9105 at the work mat. Selection of 2/4-wire is carried out on the 9100 front panel.
  • Page 34 (Section 3) . 7.2.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as in Fig. 7.1 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select Resistance function.
  • Page 35 (Section 3) . 7.3.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as in Fig. 7.1 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select Resistance function.
  • Page 36 www.valuetronics.com...
  • Page 37 Fig. 8.1 . The use of either 4-wire remote sensing at the UUT terminals, or 2-wire local sensing at the 9100 terminals, is served by the same connections from the 9105 at the work mat. Selection of 2/4-wire is carried out on the 9100 front panel.
  • Page 38 (Section 3) . 8.2.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as in Fig. 8.1 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select Conductance function.
  • Page 39 (Section 3) . 8.3.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as in Fig. 8.1 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select Conductance function.
  • Page 40 www.valuetronics.com...
  • Page 41 User's H'b'k Frequency Calibration Page Ref Interconnections Adaptor Parking Holes Thermo Couple Work Mat I+ 20A I+mA Yell Fig. 9.1 Connections for Frequency Calibration Model 9100 — Operator's Guide: Frequency Function www.valuetronics.com...
  • Page 42 (Section 3) . 9.2.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as shown in Fig. 9.1 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select Frequency function.
  • Page 43 (Section 3) . 9.3.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as shown in Fig. 9.1 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select Frequency function.
  • Page 44 www.valuetronics.com...
  • Page 45 User's H'b'k Mark/Period Calibration Page Ref 10.1 Interconnections Adaptor Parking Holes Thermo Couple Work Mat I+ 20A I+mA Yell Fig. 10.1 Connections for Mark/Period Calibration Model 9100 — Operator's Guide: Mark/Period Function 10-1 www.valuetronics.com...
  • Page 46 (Section 3) . 10.2.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as shown in Fig. 10.1 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select Mark/Period function.
  • Page 47 (Section 3) . 10.3.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as shown in Fig. 10.1 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select Mark/Period function.
  • Page 48 www.valuetronics.com...
  • Page 49 User's H'b'k % Duty Calibration Page Ref 11.1 Interconnections Adaptor Parking Holes Thermo Couple Work Mat I+ 20A I+mA Yell Fig. 11.1 Connections for % Duty Calibration Model 9100 — Operator's Guide: % Duty Function 11-1 www.valuetronics.com...
  • Page 50 (Section 3) . 11.2.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as shown in Fig. 11.1 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select % Duty function.
  • Page 51 (Section 3) . 11.3.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as shown in Fig. 11.1 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select % Duty function.
  • Page 52 www.valuetronics.com...
  • Page 53 Thermo THERMO -couple COUPLE TYPE Logic: Pulses Levels 1/Ø 12.1.2 Calibration Procedures The instructions for calibrating UUTs in the above functions are contained in their sections as shown in the table. Model 9100 — Operator's Guide: Auxiliary Functions 12-1 www.valuetronics.com...
  • Page 54 www.valuetronics.com...
  • Page 55 Fig. 13.1 . The use of either 4-wire remote sensing at the UUT terminals, or 2-wire local sensing at the 9100 terminals, is served by the same connections from the 9105 at the work mat. Selection of 2/4-wire is carried out on the 9100 front panel.
  • Page 56 User's Handbook; paras 3.3.1 . Familiarity with editing screen values is also assumed (Section 3) . 13.2.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as in Fig. 13.1 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select Capacitance function.
  • Page 57 User's Handbook; paras 3.3.1 . Familiarity with editing screen values is also assumed (Section 3) . 13.3.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as in Fig. 13.1 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select Capacitance function.
  • Page 58 www.valuetronics.com...
  • Page 59 N.B. Always ensure that the CJC pod fitted to the leadset connection block (or 9100 front panel) is the same unit that was calibrated together with the 9100 unit in use.
  • Page 60 User's Handbook; paras 3.3.1 . Familiarity with editing screen values is also assumed (Section 3) . 14.2.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as in Fig. 14.1 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select Thermocouple Temperature function.
  • Page 61 User's Handbook; paras 3.3.1 . Familiarity with editing screen values is also assumed (Section 3) . 14.3.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as in Fig. 14.1 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select Thermocouple Temperature function.
  • Page 62 www.valuetronics.com...
  • Page 63 Fig. 15.1 . The use of either 4-wire remote sensing at the UUT terminals, or 2-wire local sensing at the 9100 terminals, is served by the same connections from the 9105 at the work mat. Selection of 2/4-wire is carried out on the 9100 front panel.
  • Page 64 User's Handbook; paras 3.3.1 . Familiarity with editing screen values is also assumed (Section 3) . 15.2.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as in Fig. 15.1 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select the RTD Temperature function.
  • Page 65 User's Handbook; paras 3.3.1 . Familiarity with editing screen values is also assumed (Section 3) . 15.3.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as in Fig. 15.1 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select the RTD Temperature function.
  • Page 66 www.valuetronics.com...
  • Page 67 User's H'b'k Logic Pulses Calibration Page Ref 16.1 Interconnections Adaptor Parking Holes Thermo Couple Work Mat I+ 20A I+mA Yell Fig. 16.1 Connections for Logic Pulses Calibration Model 9100 — Operator's Guide: Logic Pulses Function 16-1 www.valuetronics.com...
  • Page 68 (Section 3) . 16.2.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as shown in Fig. 16.1 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select Logic Pulses function.
  • Page 69 (Section 3) . 16.3.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as shown in Fig. 16.1 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select Logic Pulses function.
  • Page 70 www.valuetronics.com...
  • Page 71 User's H'b'k Logic Levels Calibration Page Ref 17.1 Interconnections Adaptor Parking Holes Thermo Couple Work Mat I+ 20A I+mA Yell Fig. 17.1 Connections for Logic Levels Calibration Model 9100 — Operator's Guide: Logic Levels Function 17-1 www.valuetronics.com...
  • Page 72 (Section 3) . 17.4.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as shown in Fig. 17.1 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select Logic Levels function.
  • Page 73 (Section 3) . 17.5.1 9100 and UUT Setup 1. Connections Connect the 9100 to the UUT as shown in Fig. 17.1 , and ensure that both instruments are powered ON and warmed up. 2. UUT Select Logic Levels function.
  • Page 74 www.valuetronics.com...
  • Page 75 9100, and the appropriate fatal error message is continuously displayed. Action required: Press the RESUME screen softkey or power the Model 9100 off and then on. If the error message recurs, note it and contact your local Wavetek Service Center. Type B...
  • Page 76 Wavetek Service Center. Type D Calibration Errors Although most of these errors occur during calibration of the Model 9100, they may also occur when the Model 9100 interrogates its calibration stores during normal operation. Action required: Error messages indicating a password failure or incorrect cal switch position can be overcome by rectifying the condition before proceeding.
  • Page 77 As a minimum, this should include the mode of operation in which the Model 9100 was being used when the error message/fault occurred, the function and range selected at the time, and the error message which was displayed.
  • Page 78 UUT sense current high. Internal circuits saturated. Cold junction measurement invalid. Default = 25°C Confirm with ON Corrupt +ve zero (DAC) Corrupt -ve zero (DAC) Corrupt cal factors Corrupt cold junc diff factor Corrupt composite DAC zero 18-4 Model 9100 — Operator's Guide: Error Messages www.valuetronics.com...
  • Page 79 Day separator is incorrect Deviation too big Deviation too small Down range required Duty too big Duty too small Entry contains illegal characters Entry does not give a valid time setting Model 9100 — Operator's Guide: Error Messages 18-5 www.valuetronics.com...
  • Page 80 Hours entry is not a valid number Illegal duty/width combination Illegal offset Illegal rep/width combination Incorrect or missing workmat. Cold junction default = 25°C Invalid CJC measurement - default to 25°C Invalid junction measurement 18-6 Model 9100 — Operator's Guide: Error Messages www.valuetronics.com...
  • Page 81 No more failures to view There are no more self-test failures to be reported No more ranges Nominal Resistance too big Nominal Resistance too small Number too big Model 9100 — Operator's Guide: Error Messages 18-7 www.valuetronics.com...
  • Page 82 Printer is not responding Printer out of paper Priority OFF received A request to turn the output ON has been overidden by a request to turn it OFF Reached lower boundary Reached upper boundary 18-8 Model 9100 — Operator's Guide: Error Messages www.valuetronics.com...
  • Page 83 Temperature must be within the range 00.00 - 50.00 Temperature table: no entry found Temperature too big Temperature too small Thermal limit:- reduced output Thermocouple adaptor required. Cold junction default = 25°C Top of range Model 9100 — Operator's Guide: Error Messages 18-9 www.valuetronics.com...
  • Page 84 UUT sense current is low. Output outside specification Entered value is outside of the allowed range Width too big Width too small Year entry is not a valid number Year separator is incorrect 18-10 Model 9100 — Operator's Guide: Error Messages www.valuetronics.com...
  • Page 85 www.valuetronics.com...
  • Page 86 www.valuetronics.com...
