Wavetek ANT-20 Operating Manual page 28

Broadband Analyzer/Generator
Fig. O-11
"Signaling Analysis"
A record of the signaling is made and displayed in the "Signaling Analysis" window for each
measurement on switched virtual circuits (SVC). The record is saved in a Log File. If the "Log
QoS Parameters" option is activated, the results for the QoS parameters are also saved in the
log file when the circuit is teared down. The results of "ATM Layer QoS (SVC) <...>" type
measurements can be recorded completely in this way. This is particularly useful if an
instrument is operated in "Called" mode without supervision over a long period of time.
Fig. O-12
O-10

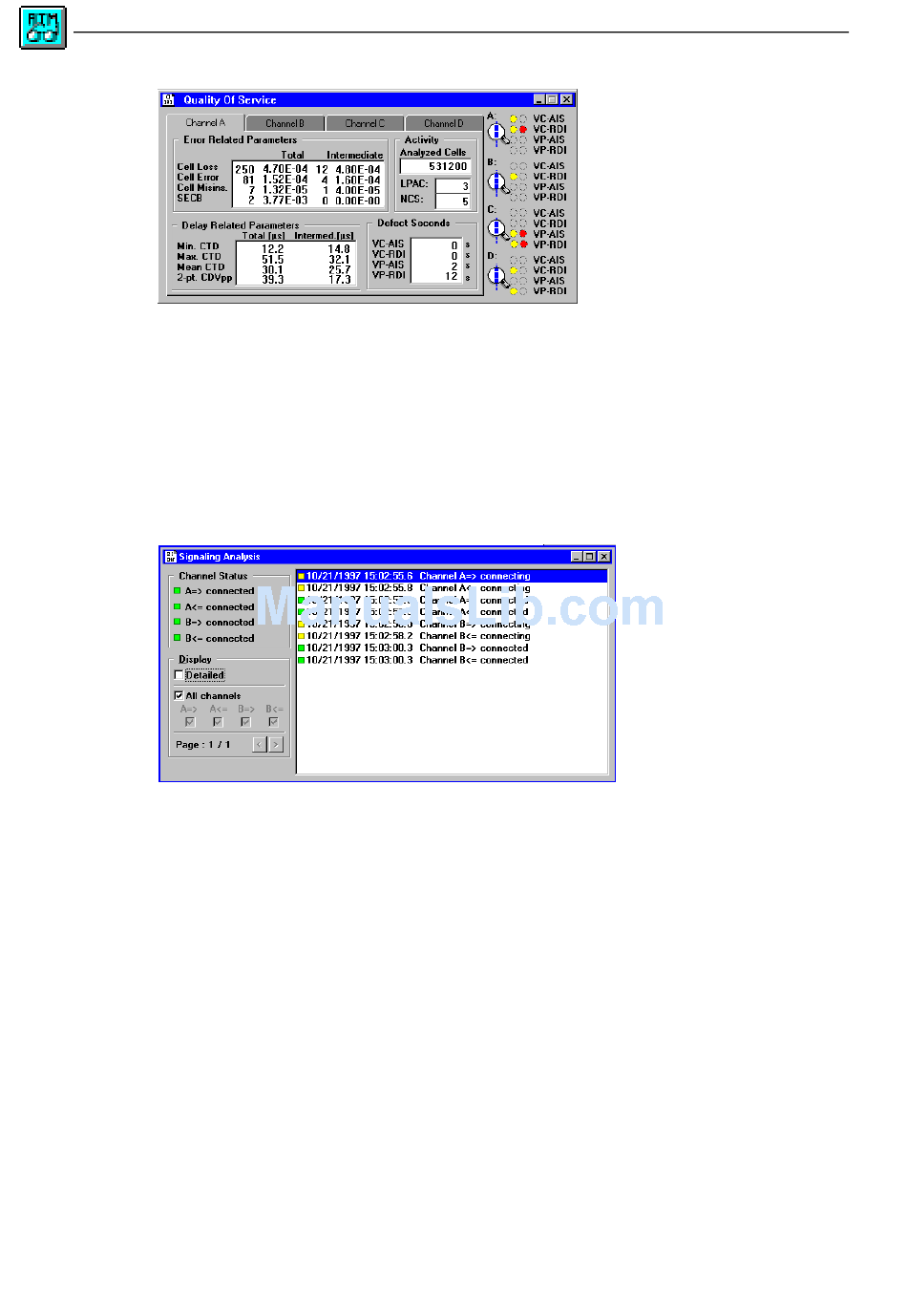

"Quality Of Service" results window
"Signaling Analysis" results window
ANT-20/ANT-20E
Operation
