ANT-20/ANT-20E
The dialog contains the following sections:
Section

Port configuration

Tx/Rx Configuration
Signaling emulation
Buttons
Table O-4
4.3 Port configuration
The radio buttons in the "Port configuration" field are used to set the way in which the instrument
is connected to the device under test (ATM DUT). The following topologies can be selected:
Emulate
The instrument's generator and receiver are connected to the same port of the device under
test. This topology allows emulation with permanent or switched virtual connections. The
"Emulate" topology must be used if signaling emulation is to be used. "Emulate" can only be
selected if the physical layer bit rate and mapping are the same for the generator and the
receiver and if an ATM mapping is selected.

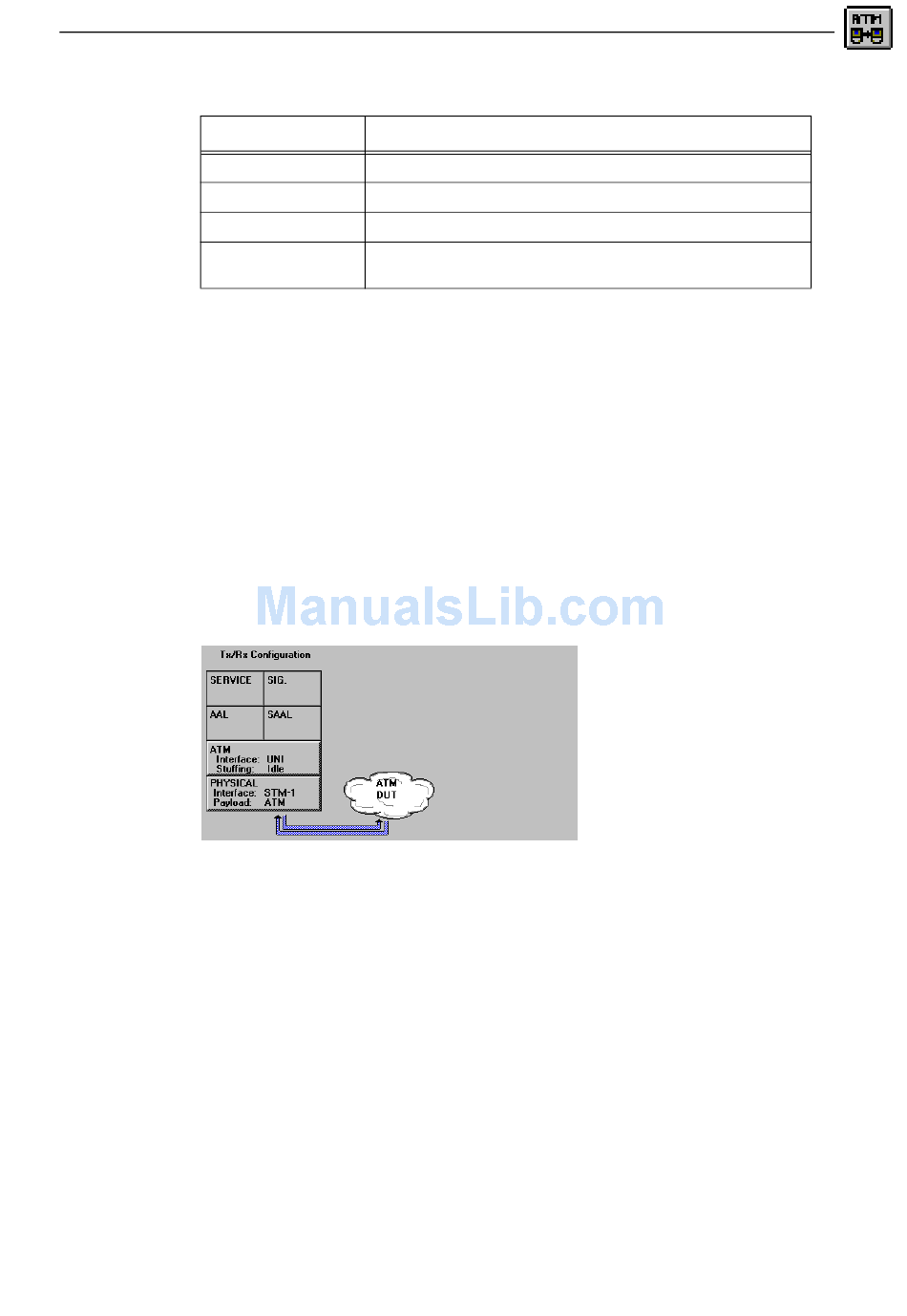

Fig. O-17
Operation
Meaning
Set the topology (Sec. 4.3, Page O-17)
Match the instrument to the protocol layers (Sec. 4.4, Page O-19)
Activate the signaling emulation
Confirm configuration for all layers and closes the dialog
Cancel configuration settings
"Instrument Configuration" dialog sections
Dialog display, if "Emulate" topology is selected
Broadband Analyzer/Generator
O-17
