Broadband Analyzer/Generator
1.3

Important dialog windows

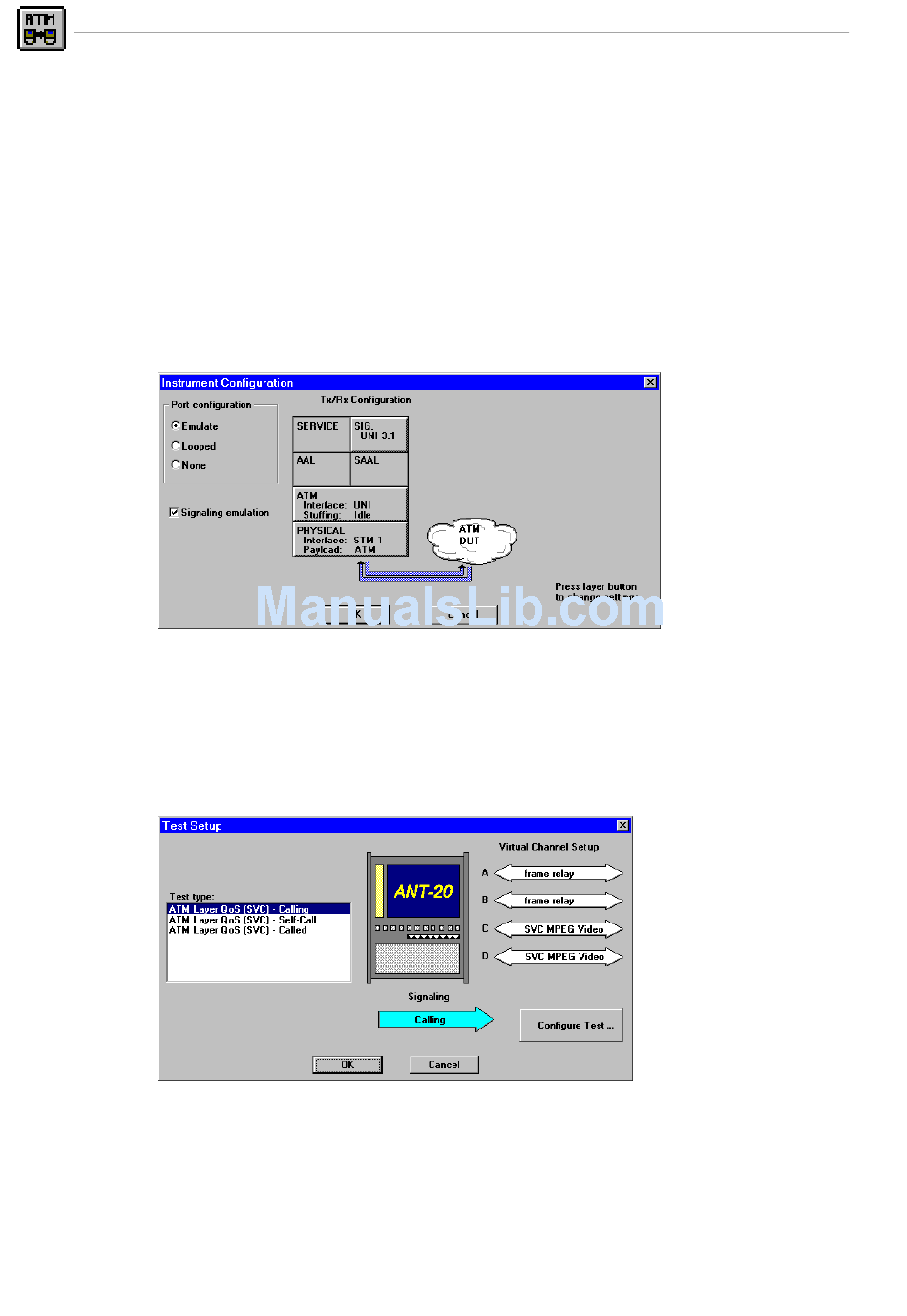

The "Instrument Configuration" dialog
The "Instrument Configuration" dialog is used to set the port configuration or topology for the
measurement task and to match the instrument to the protocol layers used. You can also select
whether permanent (PVC) or switched (SVC) virtual connections are to be tested. If switched
virtual connections are selected, you can also configure the signaling emulation and set the
ATM address of the instrument in this dialog.
The dialog shows the selected configuration in graphical form along with push buttons that open
further dialogs for a given layer. This is also the case for the physical layer; the "Signal
Structure" VI is opened when the "PHYSICAL" button is clicked, assuming that the "Signal
Structure" VI has been loaded in the current application; see Sec. 4.4, Page O-19.
Fig. O-3
The "Test Setup" dialog
The "Test Setup" dialog is used to select the appropriate test type for your measurement task.
Depending on the requirements and modifications with respect to the default setup, further
dialog windows can be called up to configure your test type.
Fig. O-4
O-4
"Instrument Configuration" dialog
"Test Setup" dialog with available test types
ANT-20/ANT-20E
Operation
