Note:
This camera features Zero Downtime Power Switching (ZDT). When the 12VDC connector and RJ45 port
are connected simultaneously, the power input is from the 12VDC connector. If the 12VDC power fails,
the camera switches power to the RJ45 port until the 12VDC power source is restored.

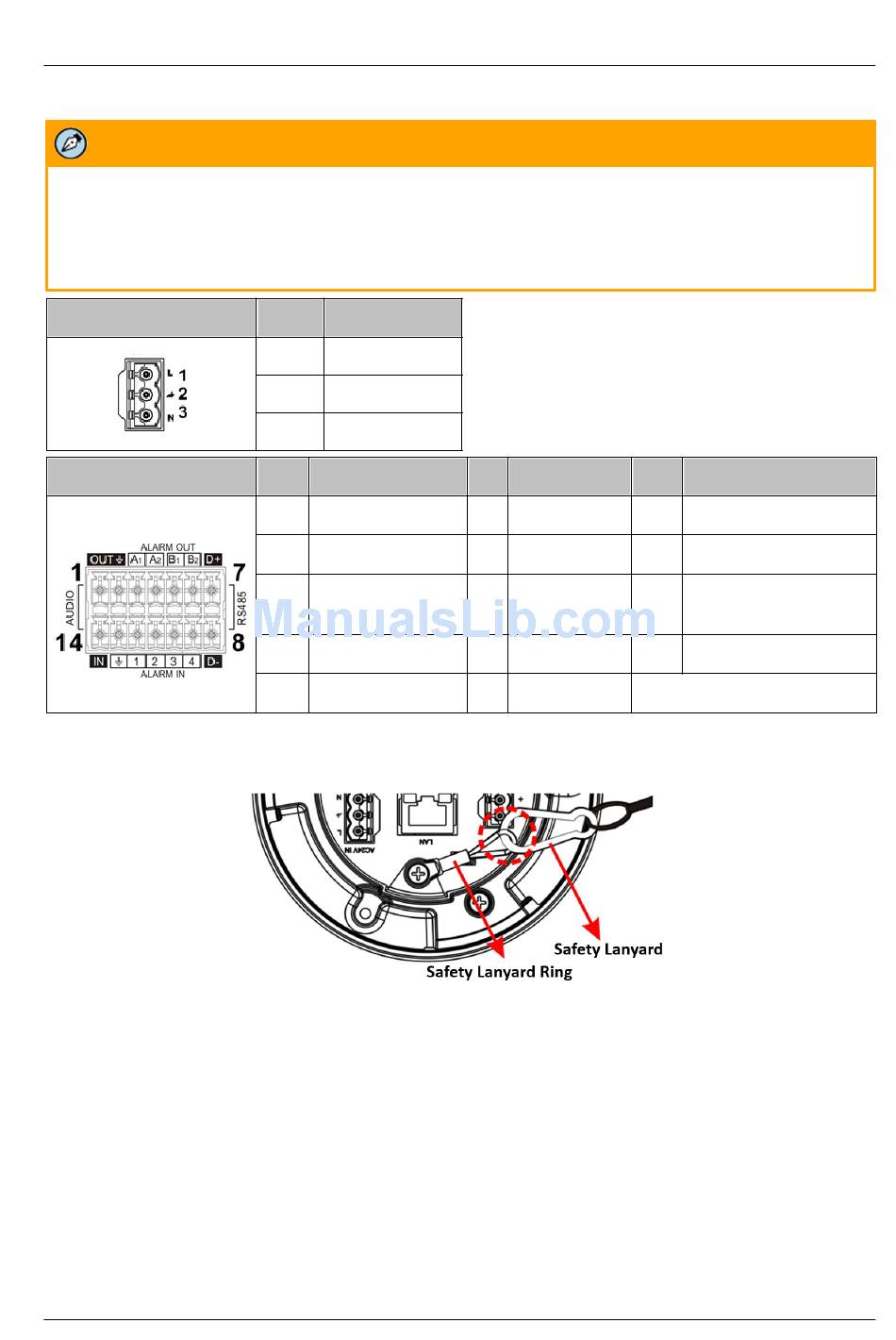

Power Connector
Alarm Connector
For safety reasons, the camera includes a safety lanyard ring which should be connected to the safety
lanyard coming from the pendant.
September 7, 2017
Pin Definition
1 AC 24L
2 Ground
3 AC 24N
Pin Definition
1 Audio-Out
2 Ground (Audio I/O) 7
3 Alarm-Out A1
4 Alarm-Out A2
5 Alarm-Out B1
Safety Lanyard Connections
CP-6302 User and Installation Guide
Introduction to the Quasar IR PTZ Camera
Pin Definition Pin
6 Alarm-Out B2 11
RS-485 D+ 12
8 RS-485 D- 13
9 Alarm-In 4 14
10 Alarm-In 3
Definition
Alarm-In 2
Alarm-In 1
Ground (Alarm I/O and
RS-485)
Audio-In
