5 Installation

This camera is designed for indoor and outdoor installation. Observe the following installation
recommendations:
·
Always use weatherproof equipment, such as boxes, receptacles, connectors, etc.
·
For electrical wiring, use the properly rated sheathed cables for conditions to which the cable will
be exposed (for example, moisture, heat, UV, physical requirements, etc.).
·
Plan ahead to determine where to install infrastructure weatherproof equipment. Whenever
possible, ground components to an outdoor ground.
·
Use best security practices to design and maintain secured camera access, communications
infrastructure, tamper-proof outdoor boxes, etc.
·
All electrical work must be performed in accordance with local regulatory requirements.
Note:
For detailed information about installation accessories and their installation, refer to the CP-6302
Installation Manual.
Related Links

Waterproofing the Camera Cables

5.1 Waterproofing the Camera Cables
The camera is IP66-rated to prevent water from entering the camera. Nevertheless, water can enter the
camera if it is not installed properly. Please make sure the warnings below are strictly followed when
installing the camera.
Place all cables and the adaptor in dry and well-waterproofed environments, e.g. waterproof boxes. This
prevents moisture accumulation inside the camera and moisture penetration into cables.

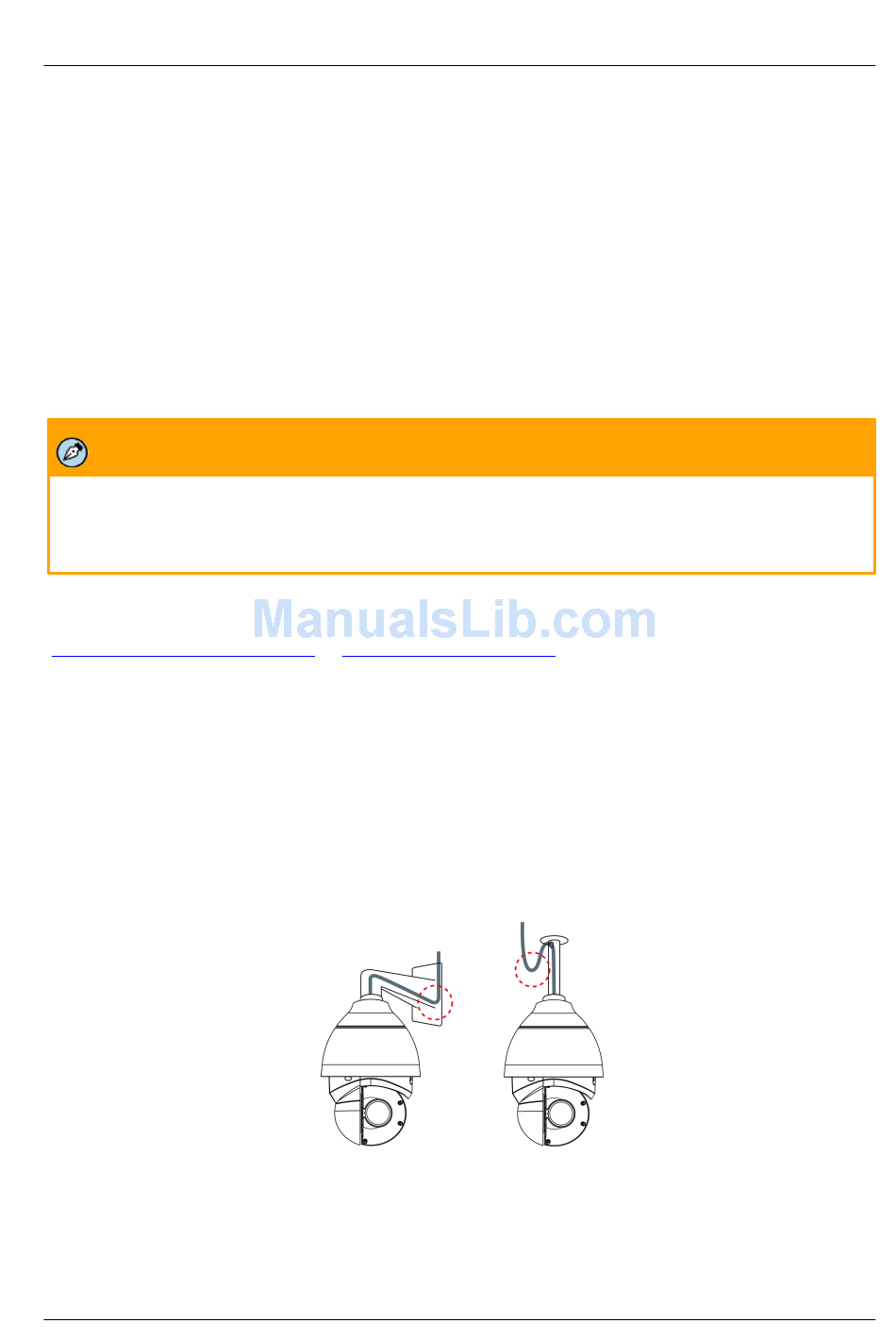

While running cables, slightly bend the cables in a U-shaped curve to create a low point (see figures
below). This prevents water from entering the camera along the cables from above.
