To run the camera through a Sequence line
1. From the Sequence run section, select the Sequence line from the drop-down list.
2. Click GO. The camera moves through each Preset Point sequentially as programmed.
To view the camera in full screen
1. Move the cursor onto the Live View pane.
2. Right-click and select Full screen.
3. Double-click to exit Full screen mode.
To stop running a Sequence line
1. Move the cursor to the Live View pane and move the camera in any direction.
9.7.5

Home

The Home page allows you to specify an operation mode to be activated automatically when the camera is
idle for a specified period of time.
To configure Home settings
1. From the Switch drop-down menu, select On to activate or Off to disable the Home function.
2. Click SET to save the setting.
3. In the Time text box, enter the amount of time (1-128 minutes) that the camera is idle before
executing the Home function action.
4. From the Type drop-down menu, select the action to perform: Preset, Sequence, Auto pan, or
Pattern.
5. From the Line drop-down menu, select the Preset, Sequence, Auto pan, or Pattern path number.
6. Click SET to save the Home settings.
9.7.6

Tilt Range

The Tilt Range page allows you to specify the camera's Tilt Angle.
To set an angle
1. In the Min. text box, enter the minimum tilt angle (from -20° to 10°).
2. In the Max. text box, enter the maximum tilt angle (from 80° to 100° if the Flip function is not
activated on the
3. Click SET to save the Tilt Angle settings.
September 7, 2017
PTZ Setting screen, or from 170° to 190° if the Flip function is enabled).
CP-6302 User and Installation Guide

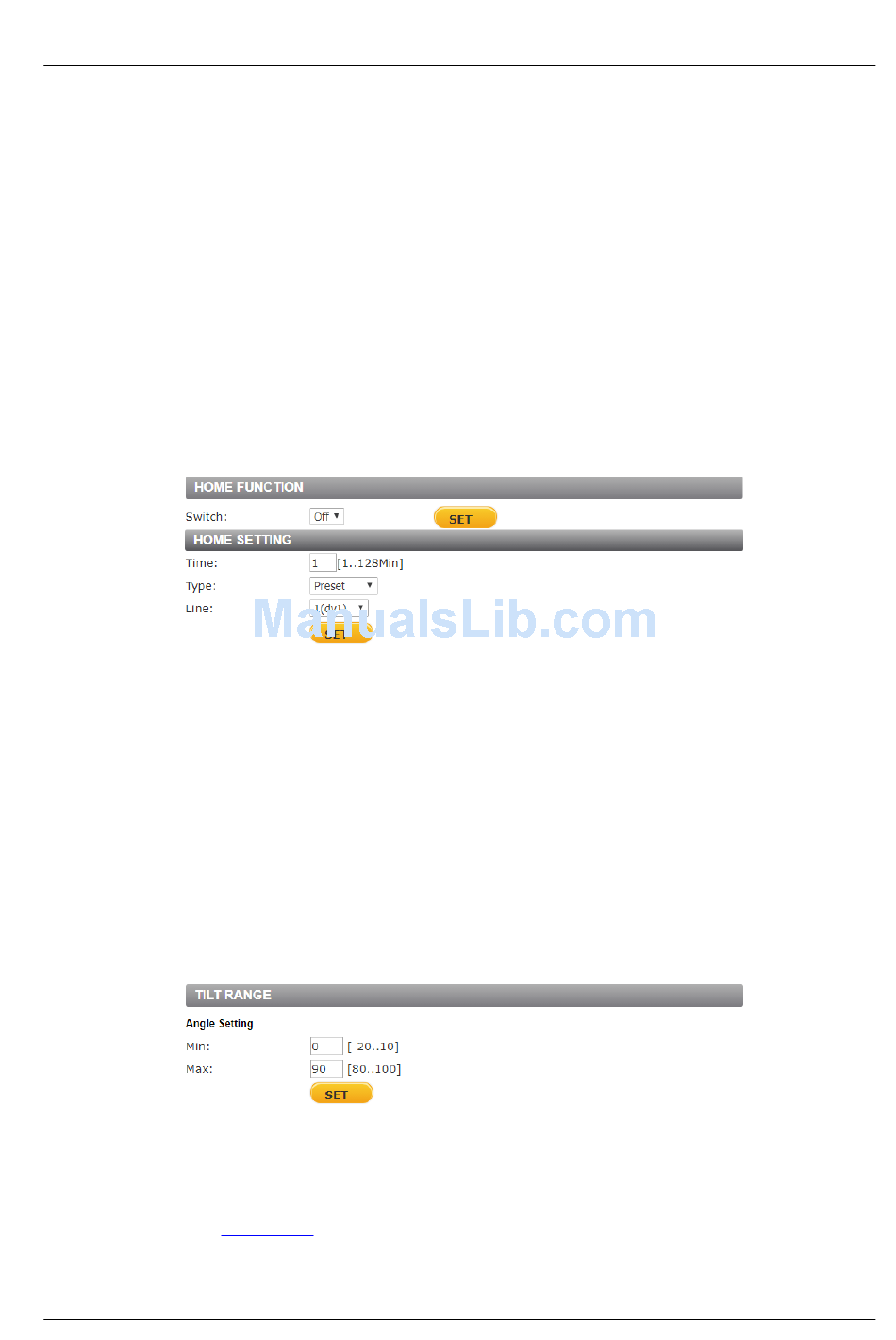

Home Screen
Tilt Range Screen
Configuration and Operation
113
