Package Contents

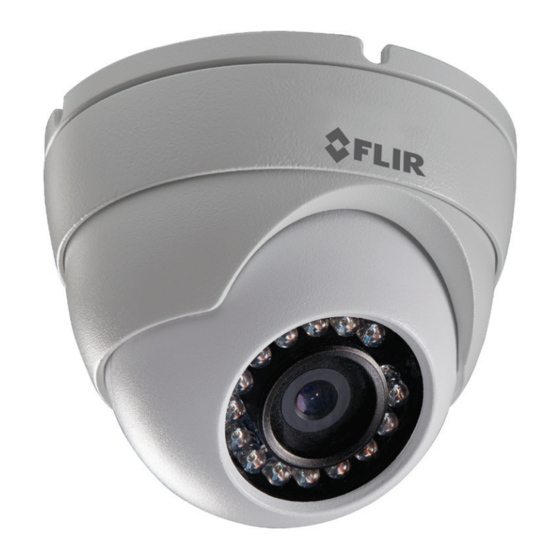

• 1x 2.0MP Fixed Dome Camera
• 4x Mounting Screws
• 4x Drywall Anchors
• 1x Mounting Template
NOTE:
12V DC adapter not included.
Safety Precautions
• Use an appropriate low voltage power cable to
prevent fire or electrical shock.
• Make sure to install the camera in an area that can
support the camera weight.
• There are no user serviceable parts inside the
camera. Please do not disassemble the camera.
• Do not clean the lens cover with an abrasive cleaning
material. Please use a soft cloth to clean the lens
cover.
IT'S ALL ON THE WEB!
VISIT
www.flir.com/security/support
FLIR Systems, Inc., Copyright © 2015
As our products are subject to continuous improvement, FLIR
Systems Inc. reserves the right to modify product design,
specifications and prices, without notice and without incurring
any obligation. E&OE
2.0MP Fixed WDR Dome Camera
QUICK START GUIDE
MODEL: C133ED/
English Version 1.0
www.flir.com/security/support
C133EDP
Advertisement
Related Manuals for FLIR C133ED
Summary of Contents for FLIR C133ED
- Page 1 IT’S ALL ON THE WEB! VISIT www.flir.com/security/support FLIR Systems, Inc., Copyright © 2015 As our products are subject to continuous improvement, FLIR www.flir.com/security/support Systems Inc. reserves the right to modify product design, specifications and prices, without notice and without incurring...
- Page 2 Test the camera prior to selecting a permanent 2. DC Power—Power Pigtail: Connect the included power Video Format NTSC (C133ED) / PAL (C133EDP) mounting location by temporarily connecting the camera(s) and cables to the DVR. pigtail to the camera. Connect the terminating wires of the...
